Front Lower Ball Joint: Components: Illustration

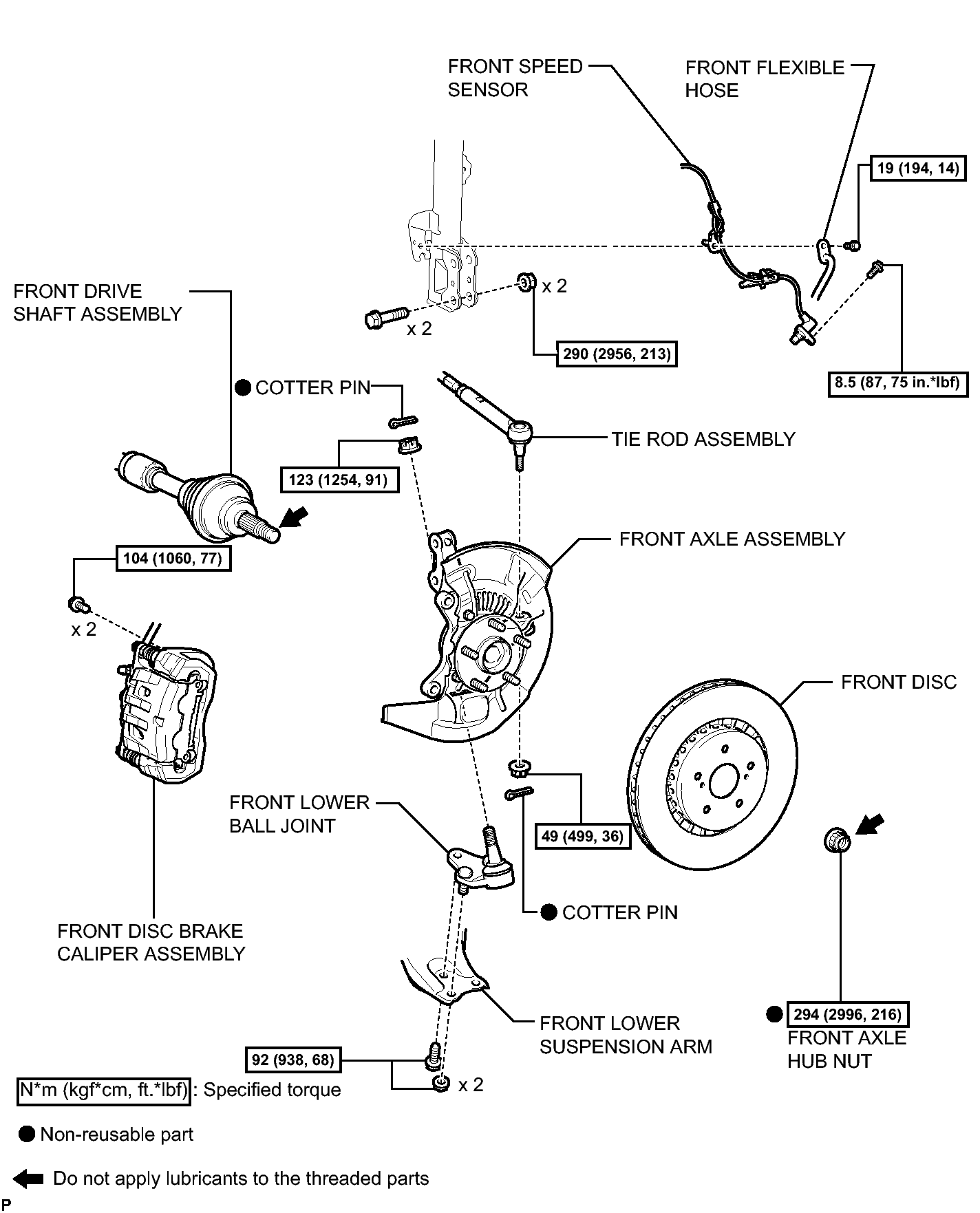

Fig 1: Identifying Front Lower Ball Joint Replacement Components With Torque Specifications

GTY297273

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
