FRONT STABILIZER BAR (for 2GR-FE): Components: Illustration

Fig 1: Identifying Front Stabilizer Bar (2GR-FE) Replacement Components (1 Of 2)
GTY204624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

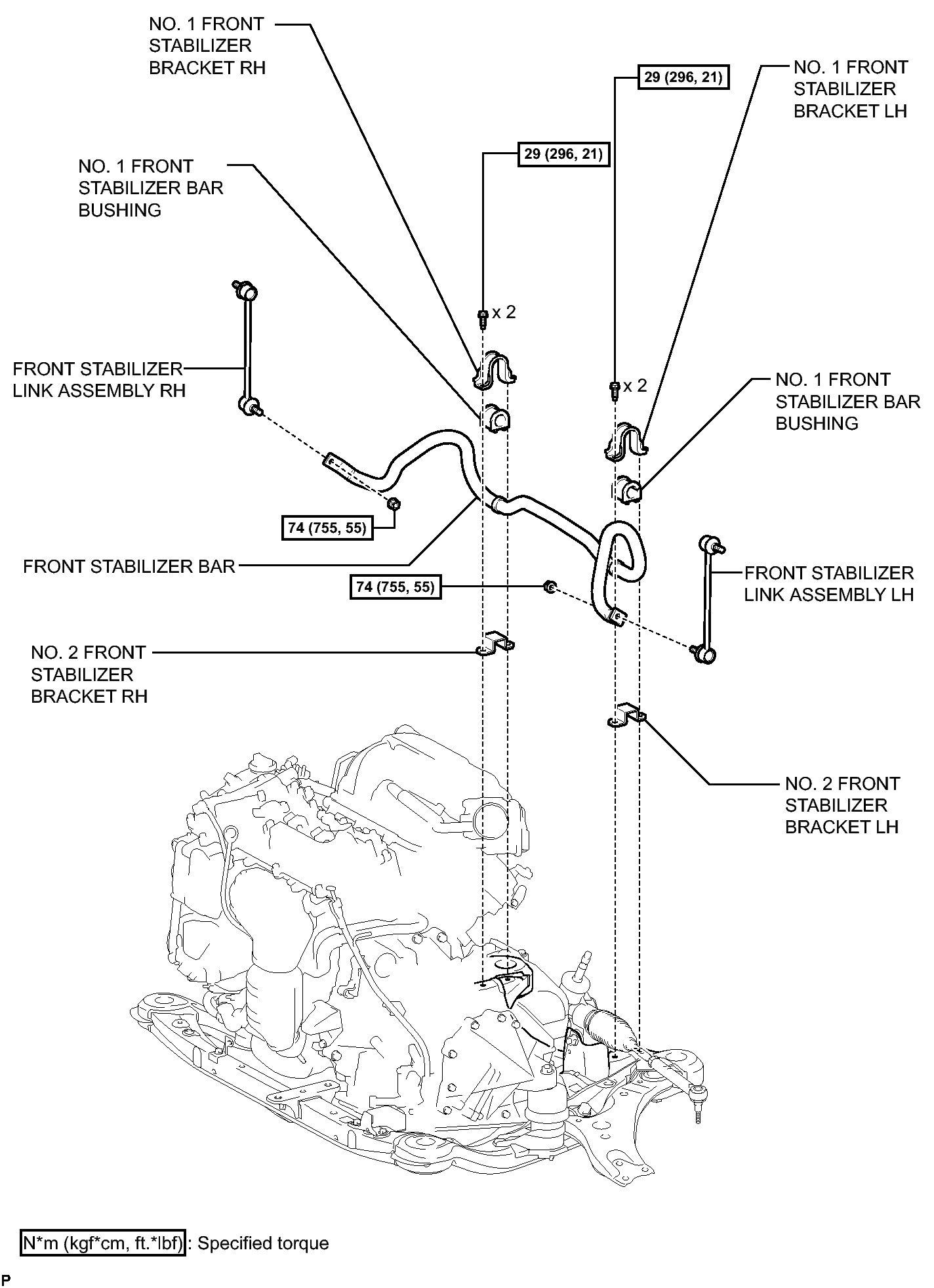

Fig 1: Identifying Front Stabilizer Bar (2GR-FE) Replacement Components With Torque Specifications (2 Of 2)
GTY204088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
