FRONT STABILIZER BAR (for 1AR-FE): Components: Illustration

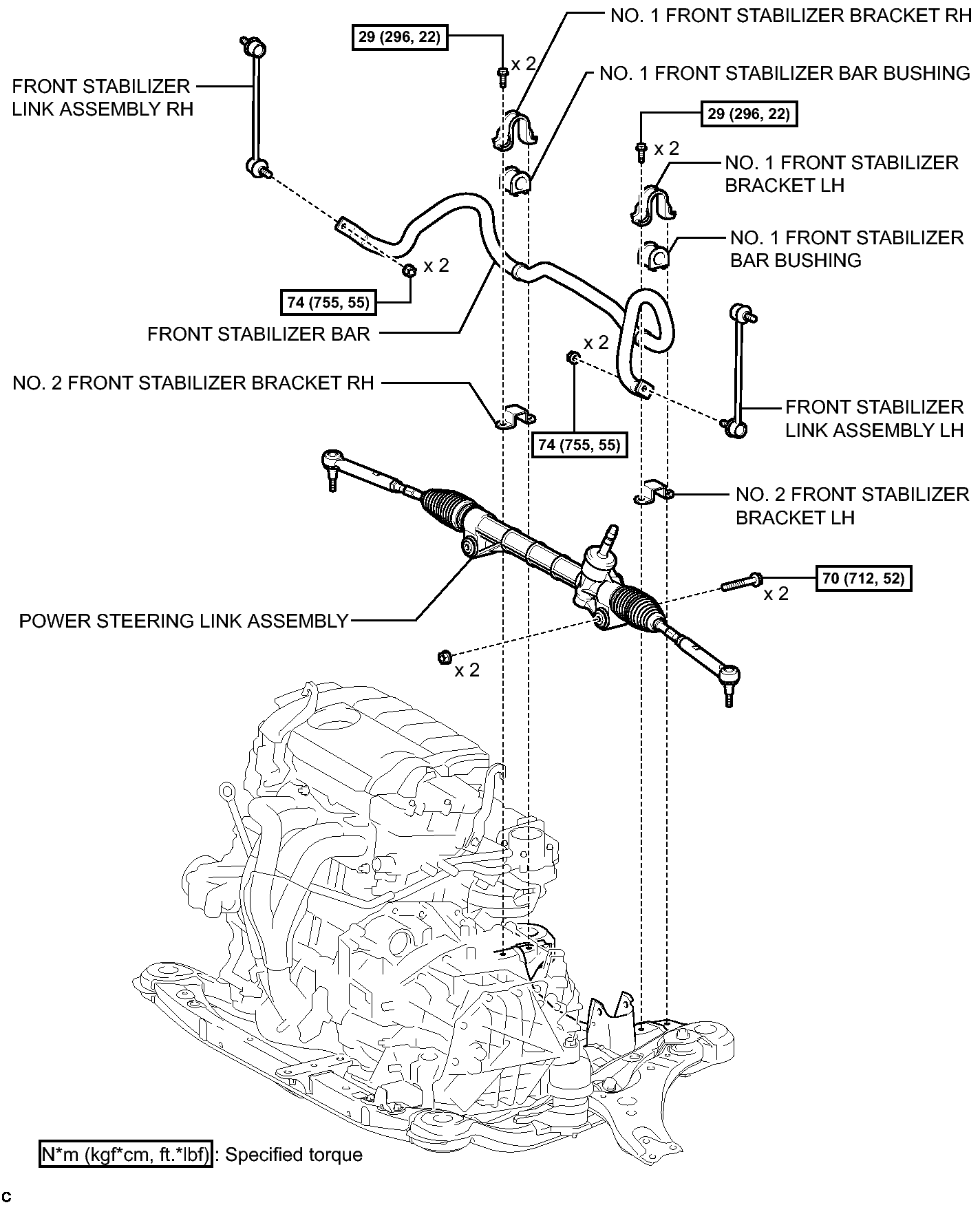

Fig 1: Identifying Front Stabilizer Bar (1AR-FE) Replacement Components With Torque Specifications
GTY205547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
