Rear No. 2 Seat Outer Belt Assembly: Removal: Removal

  1. REMOVE REAR DOOR SCUFF PLATE  . Refer to REMOVAL - Step 29
  2. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
  3. REMOVE DECK BOARD ASSEMBLY  . Refer to REMOVAL - Step 34
  4. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY  . Refer to REMOVAL - Step 35
  5. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY  . Refer to REMOVAL - Step 36
  6. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)  . Refer to REMOVAL - Step 37
  7. REMOVE REAR SEAT SIDE COVER LH  . Refer to REMOVAL - Step 38
  8. REMOVE DECK SIDE TRIM BOX LH  . Refer to REMOVAL - Step 39
  9. REMOVE REAR SEAT SIDE COVER RH  . Refer to REMOVAL - Step 40
  10. REMOVE JACK CARRIER SUPPORT
  11. REMOVE JACK CARRIER CUSHION  . Refer to REMOVAL - Step 42
  12. REMOVE JACK ASSEMBLY  . Refer to REMOVAL - Step 43
  13. REMOVE JACK CARRIER ASSEMBLY  . Refer to REMOVAL - Step 44
  14. REMOVE DECK SIDE TRIM BOX RH  . Refer to REMOVAL - Step 45
  15. REMOVE REAR MAT  . Refer to REMOVAL - Step 46
  16. REMOVE DECK FLOOR BOARD ASSEMBLY  . Refer to REMOVAL - Step 47
  17. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH
    1. Remove the bolt and disconnect the rear No. 2 seat outer belt assembly LH.

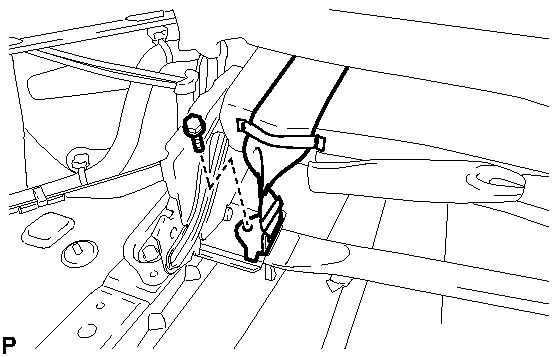

      Fig 1: Identifying Rear No. 2 Seat Outer Belt Assembly LH & Fastener
      GTY306327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  19. REMOVE CENTER SEAT CUSHION COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 17
  20. REMOVE REAR NO. 2 SEAT ASSEMBLY  . Refer to REMOVAL - Step 18
  21. REMOVE REAR FLOOR FINISH PLATE  . Refer to REMOVAL - Step 54
  22. REMOVE REAR SEAT SIDE GARNISH CAP (for RH Side without Rear Air Conditioning System)  . Refer to REMOVAL - Step 72
  23. REMOVE REAR SEAT SIDE GARNISH CAP (for RH Side with Rear Air Conditioning System)  . Refer to REMOVAL - Step 73
  24. REMOVE DECK SIDE TRIM COVER  . Refer to REMOVAL - Step 55
  25. REMOVE DECK SIDE TRIM  . Refer to REMOVAL - Step 56
  26. REMOVE SIDE TRIM COVER LH (for LH Side without Rear Seat Entertainment System)  . Refer to REMOVAL - Step 57
  27. REMOVE POWER OUTLET SOCKET BEZEL (for LH Side with Rear Seat Entertainment System)  . Refer to REMOVAL - Step 58
  28. REMOVE SIDE TRIM COVER RH (for RH Side without Rear Automatic Air Conditioning System)  . Refer to REMOVAL - Step 76
  29. REMOVE REAR ROOM TEMPERATURE SENSOR (for RH Side with Rear Automatic Air Conditioning System)  . Refer to REMOVAL - Step 1
  30. REMOVE REAR COMBINATION LIGHT SERVICE COVER LH (for LH Side)  . Refer to REMOVAL - Step 59
  31. REMOVE REAR COMBINATION LIGHT SERVICE COVER RH (for RH Side)  . Refer to REMOVAL - Step 78
  32. REMOVE REAR POWER POINT SOCKET ASSEMBLY (for LH Side)  . Refer to REMOVAL - Step 2
  33. REMOVE REAR POWER OUTLET SOCKET COVER (for LH Side)  . Refer to REMOVAL - Step 3
  34. REMOVE REAR DECK TRIM COVER (for LH Side without Remote Folding Function)  . Refer to REMOVAL - Step 62
  35. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL LH (for LH Side with Remote Folding Function)  . Refer to REMOVAL - Step 63
  36. REMOVE ROPE HOOK ASSEMBLY  . Refer to REMOVAL - Step 64
  37. REMOVE NO. 2 DECK SIDE TRIM HOOK (for LH Side)  . Refer to REMOVAL - Step 65
  38. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)  . Refer to REMOVAL - Step 80
  39. REMOVE FRONT DECK SIDE TRIM COVER  . Refer to REMOVAL - Step 66
  40. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)  . Refer to REMOVAL - Step 68
  41. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)  . Refer to REMOVAL - Step 83
  42. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY (w/o Power Back Door)  . Refer to REMOVAL - Step 70
  43. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY (w/ Power Back Door)  . Refer to REMOVAL - Step 71
  44. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY
    1. Remove the bolt and disconnect the shoulder end of the rear No. 2 seat outer belt assembly.

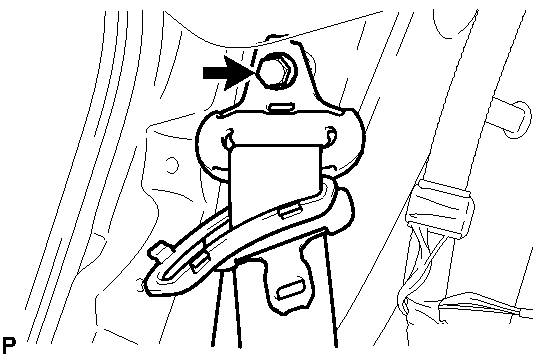

      Fig 2: Identifying Shoulder End Of Rear No. 2 Seat Outer Belt Assembly With Bolt
      GTY198917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and the rear No. 2 seat outer belt assembly.

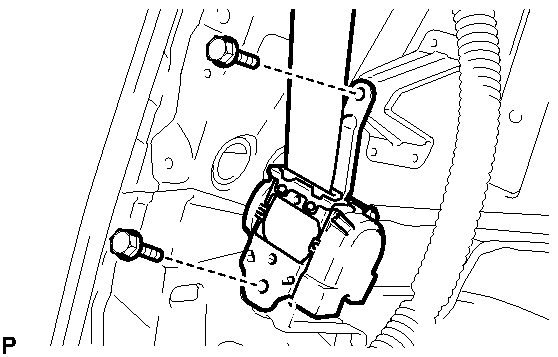

      Fig 3: Identifying Rear No. 2 Seat Outer Belt Assembly Bolts
      GTY198918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
