Rear Center Seat Outer Belt Assembly: Removal: Removal

  1. REMOVE REAR CENTER SEAT ASSEMBLY
  2. REMOVE REAR SEAT HEADREST ASSEMBLY  . Refer to REMOVAL - Step 2
  3. REMOVE REAR SEAT TRACK BRACKET COVER  . Refer to REMOVAL - Step 3
  4. REMOVE REAR OUTER TRACK BRACKET COVER  . Refer to REMOVAL - Step 4
  5. REMOVE REAR INNER TRACK BRACKET COVER  . Refer to REMOVAL - Step 5
  6. REMOVE REAR SEAT LEG SIDE COVER  . Refer to REMOVAL - Step 6
  7. DISCONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (w/ Remote Folding Function)  . Refer to REMOVAL - Step 7
  8. REMOVE REAR NO. 1 SEAT ASSEMBLY  . Refer to REMOVAL - Step 8
  9. REMOVE REAR SEAT RECLINING UPPER COVER  . Refer to DISASSEMBLY - Step 1
  10. REMOVE NO. 1 RECLINING ADJUSTER RELEASE HANDLE  . Refer to DISASSEMBLY - Step 2
  11. REMOVE REAR SEAT CUSHION MOULDING LH  . Refer to DISASSEMBLY - Step 3
  12. REMOVE SEAT ADJUSTER COVER CAP  . Refer to DISASSEMBLY - Step 4
  13. REMOVE REAR SEAT CUSHION MOULDING RH  . Refer to DISASSEMBLY - Step 5
  14. REMOVE REAR NO. 1 SEAT CUSHION COVER WITH PAD  . Refer to DISASSEMBLY - Step 17
  15. REMOVE SEAT TRACK UPPER RAIL COVER  . Refer to DISASSEMBLY - Step 24
  16. REMOVE REAR SEAT RECLINING INNER COVER  . Refer to DISASSEMBLY - Step 25
  17. REMOVE NO. 1 SEAT ARMREST CAP  . Refer to DISASSEMBLY - Step 27
  18. REMOVE REAR SEAT ARMREST ASSEMBLY  . Refer to DISASSEMBLY - Step 28
  19. REMOVE TONNEAU COVER HOOK HOLDER  . Refer to DISASSEMBLY - Step 29
  20. REMOVE REAR SEATBACK COVER  . Refer to DISASSEMBLY - Step 30
  21. REMOVE REAR SEAT LOCK STRIKER COVER  . Refer to DISASSEMBLY - Step 31
  22. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY  . Refer to DISASSEMBLY - Step 32
  23. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
    1. Remove the bolt and disconnect the rear center seat outer belt assembly.
      Fig 1: Identifying Rear Center Seat Outer Belt Assembly Bolt
      GTY198901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE REAR SEAT LOCK COVER  . Refer to DISASSEMBLY - Step 34
  25. REMOVE REAR SEATBACK UPPER LOCK BEZEL  . Refer to DISASSEMBLY - Step 35
  26. REMOVE REAR SEATBACK LOWER LOCK BEZEL  . Refer to DISASSEMBLY - Step 36
  27. REMOVE REAR SEATBACK LOCK ASSEMBLY  . Refer to DISASSEMBLY - Step 37
  28. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY  . Refer to DISASSEMBLY - Step 38
  29. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY LH  . Refer to DISASSEMBLY - Step 39
  30. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY RH  . Refer to DISASSEMBLY - Step 40
  31. REMOVE REAR NO. 1 SEATBACK COVER WITH PAD  . Refer to DISASSEMBLY - Step 41
  32. REMOVE BELT SUPPORT PLATE
    1. Disengage the 3 claws and remove the belt support plate.
      Fig 2: Identifying Belt Support Plate Claws
      GTY184738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY
    1. Remove the bolt, nut, and the rear center seat outer belt assembly.

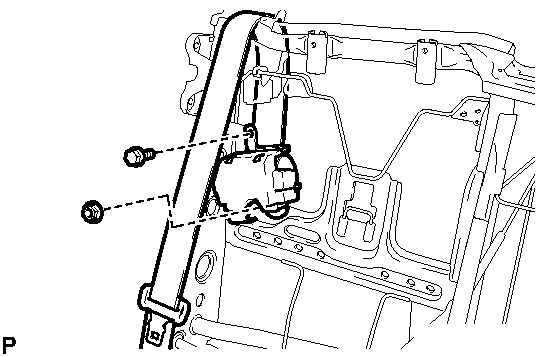

      Fig 3: Identifying Rear Center Seat Outer Belt Assembly
      GTY343054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
