DTC B1497/97: BUS IC Communication Malfunction: Wiring Diagram

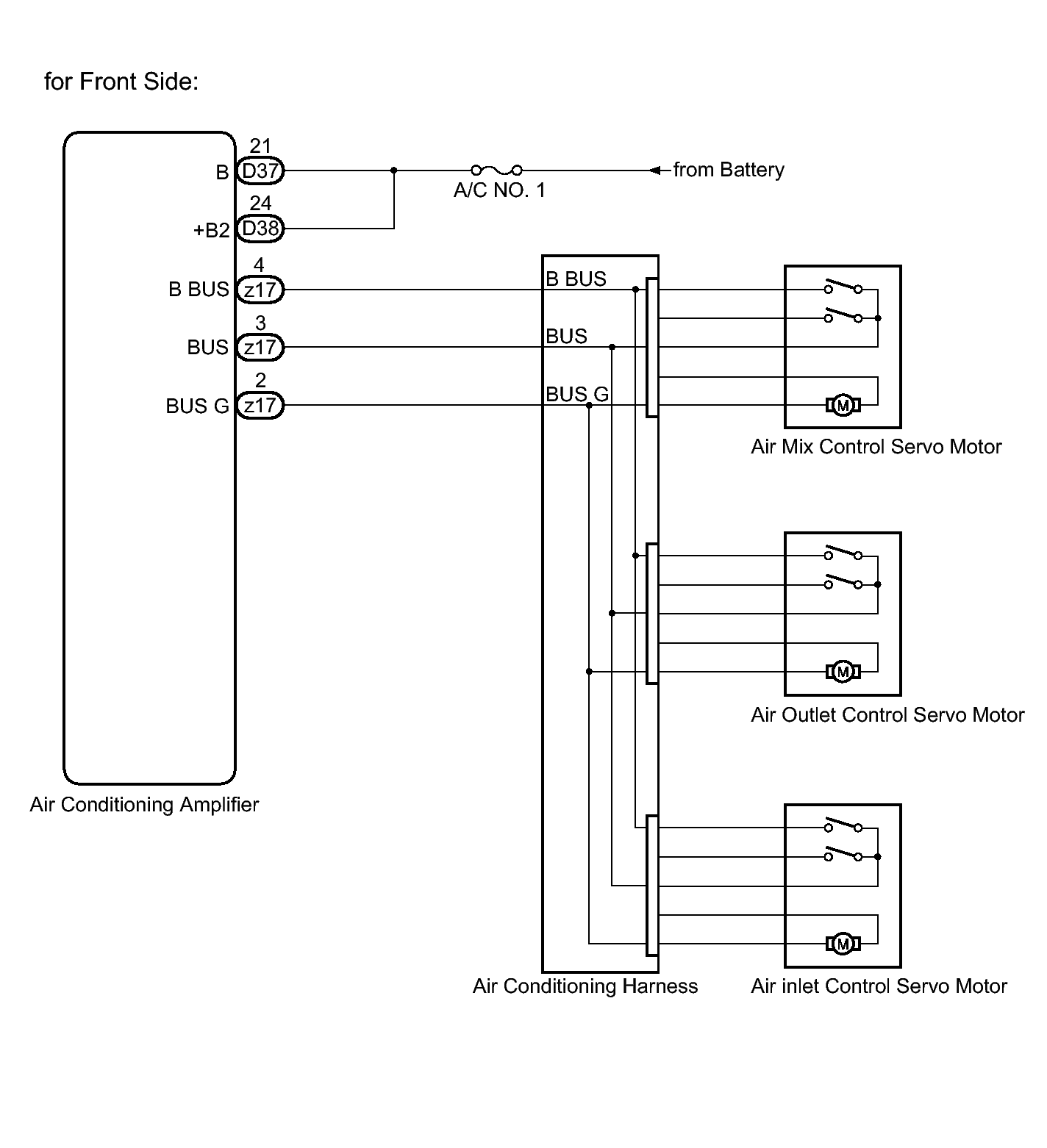

Fig 1: Air Inlet & Air Control Servo Circuit Wiring Diagram (1 Of 2)
GTY333393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

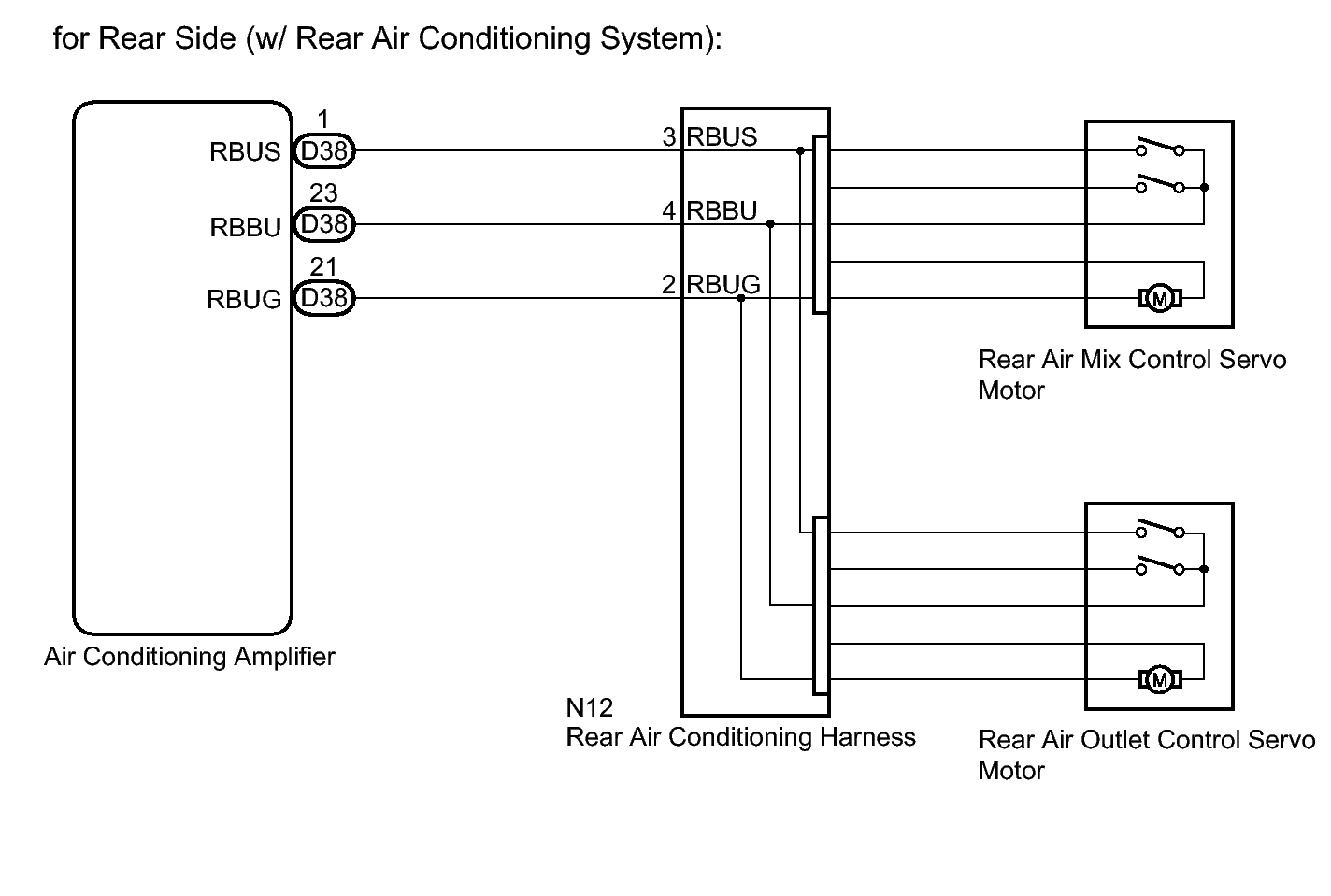

Fig 2: Air Inlet & Air Control Servo Circuit Wiring Diagram (2 Of 2)
GTY338923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
