DTC B1449/49: Rear Air Outlet Damper Control Servo Motor Circuit: Procedure
- READ VALUE USING TECHSTREAM
- Connect Techstream to the DLC3.
- Turn the ignition switch on (IG) and turn Techstream main switch on.
- Select the items below in the Data List, and read the value displayed on Techstream.DATA LIST / AIR CONDITIONER
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Air Outlet Servo Pulse(R) Rear air outlet control servo motor target pulse /
Min.: 0, Max.: 255Rr FACE: 82 (pulse)
Rr B/L: 38 (pulse)
Rr FOOT: 7 (pulse)- OK
The display is as specified in the normal condition column.
Result
Result Proceed to NG A OK (Checking from PROBLEM SYMPTOMS TABLE) B OK (Checking from DTC) C
B → See step 4
C → See step 5
A: Go to next step
- CHECK HARNESS AND CONNECTOR (REAR AIR CONDITIONING HARNESS - AIR CONDITIONING AMPLIFIER)
- Disconnect the N12 rear air conditioning harness connector.
- Disconnect the D38 amplifier connector.

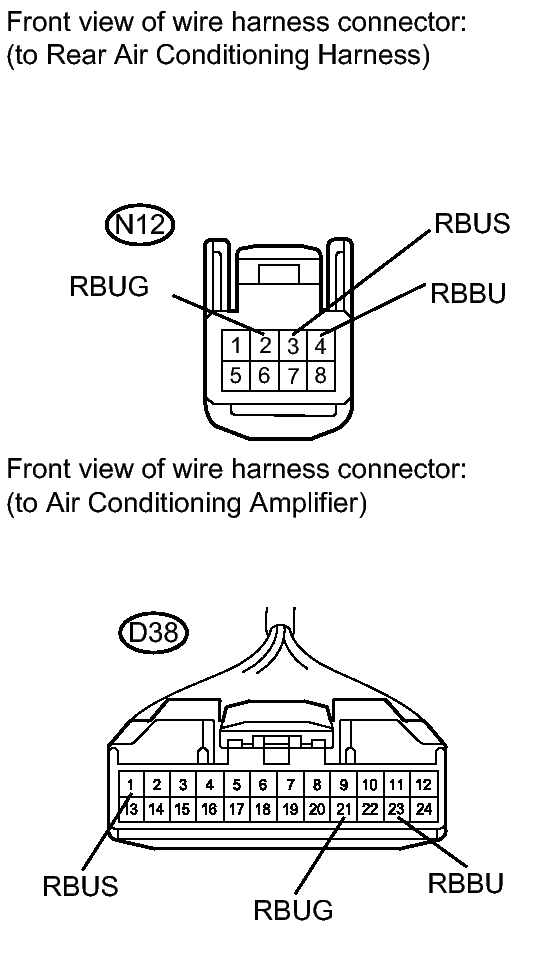

- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition N12-2 (RBUG) - D38-21 (RBUG) Always Below 1 Ω N12-3 (RBUS) - D38-1 (RBUS) Always Below 1 Ω N12-4 (RBBU) - D38-23 (RBBU) Always Below 1 Ω D38-21 (RBUG) - Body ground Always 10 kΩ or higher D38-1 (RBUS) - Body ground Always 10 kΩ or higher D38-23 (RBBU) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- REPLACE REAR AIR OUTLET CONTROL SERVO MOTOR
- Replace the rear air outlet control servo motor. Refer to REMOVAL .
NEXT: Go to next step
- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
- REPLACE AIR CONDITIONING AMPLIFIER. Refer to REMOVAL - Step 6
- CHECK DTC OUTPUT
- Clear the DTC. Refer to DTC CHECK / CLEAR .
- Check for DTC. Refer to DTC CHECK / CLEAR
.
OK
DTC B1449/49 is not output.
NG → REPAIR OR REPLACE REAR AIR CONDITIONING HARNESS
OK → END (REAR AIR OUTLET CONTROL SERVO MOTOR IS DEFECTIVE)
