DTC B1446/46: Air Mix Damper Control Servo Motor Circuit (Driver Side): Wiring Diagram

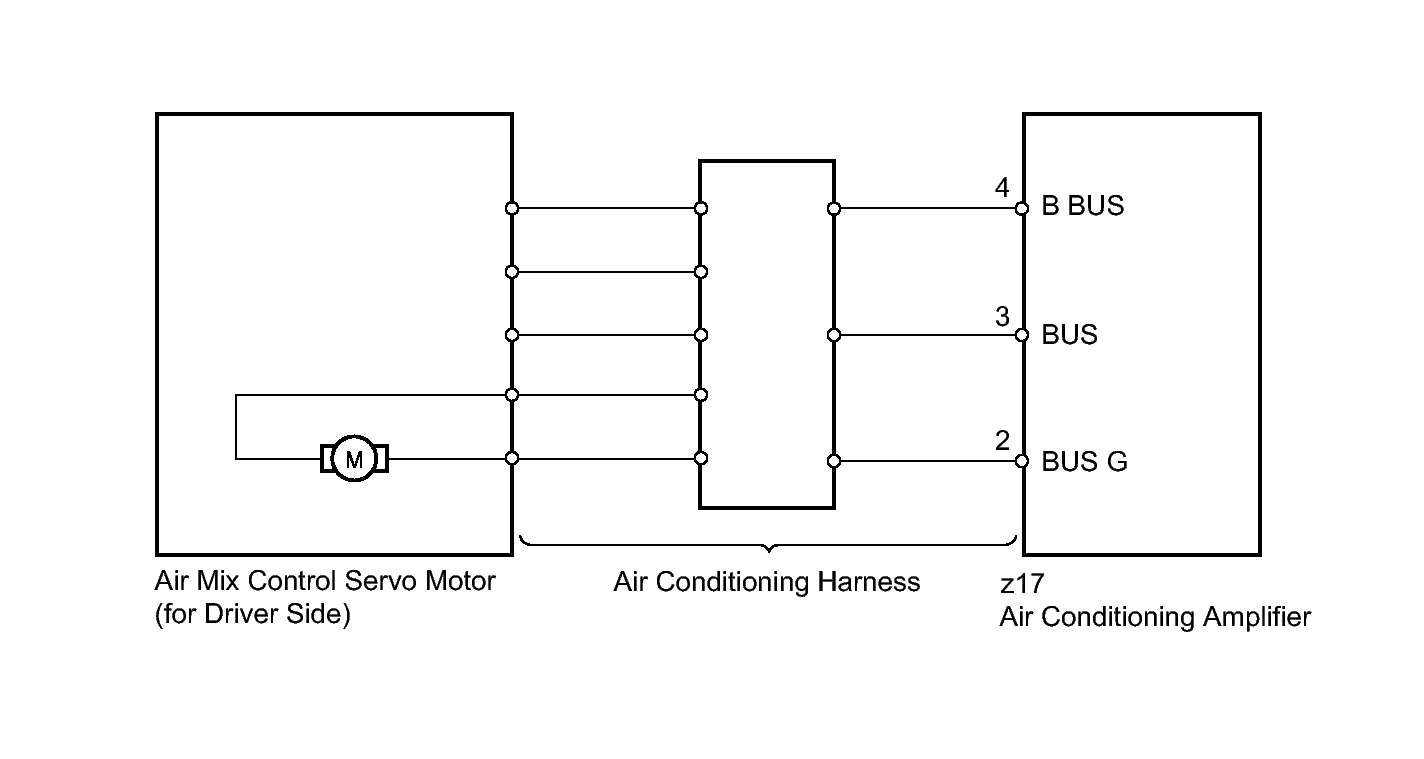

Fig 1: Air Mix Damper Control Servo Motor Wiring Diagram (Driver Side)
GTY207188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
