DTC B1443/43: Air Outlet Damper Control Servo Motor Circuit: Wiring Diagram

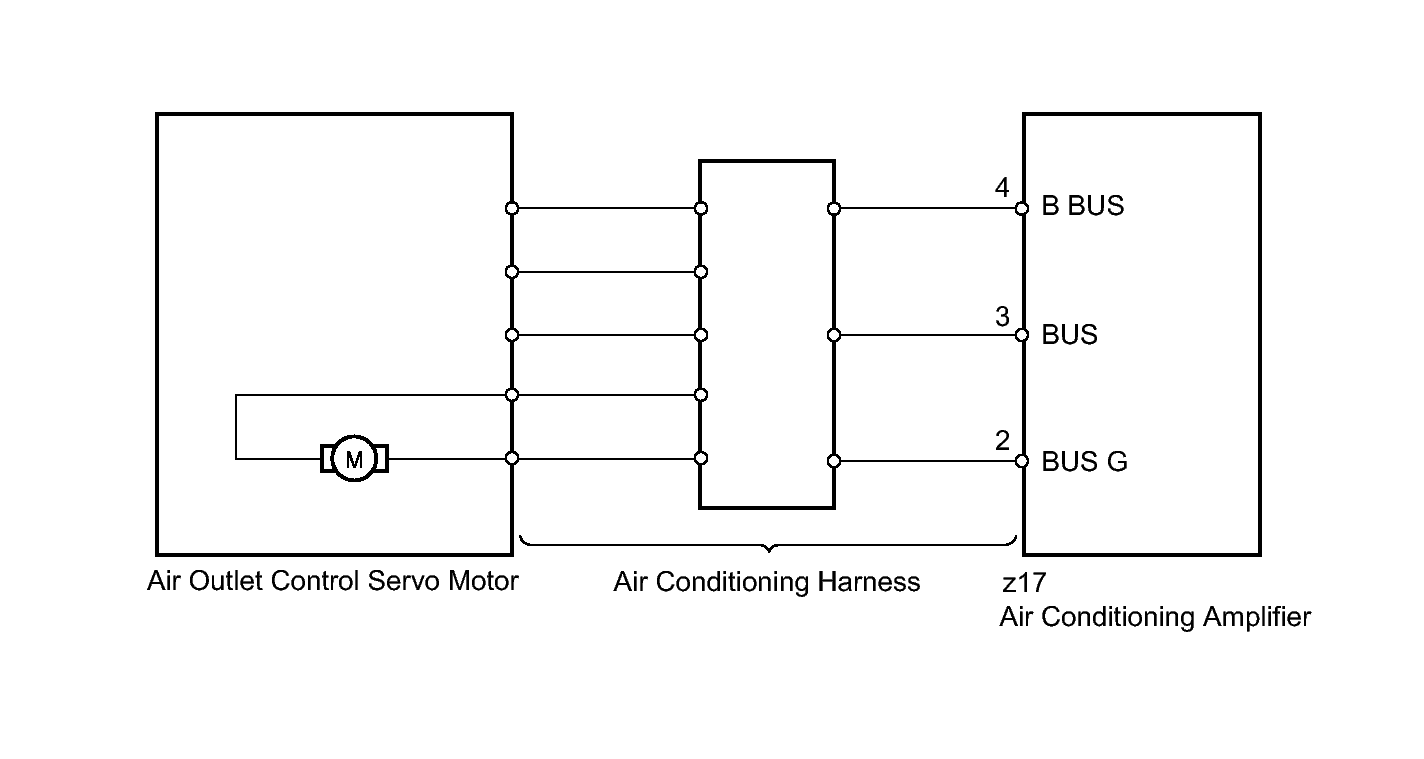

Fig 1: Air Outlet Damper Control Servo Motor Wiring Diagram

GTY207187

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
