DTC B1423/23: Pressure Sensor Circuit: Wiring Diagram

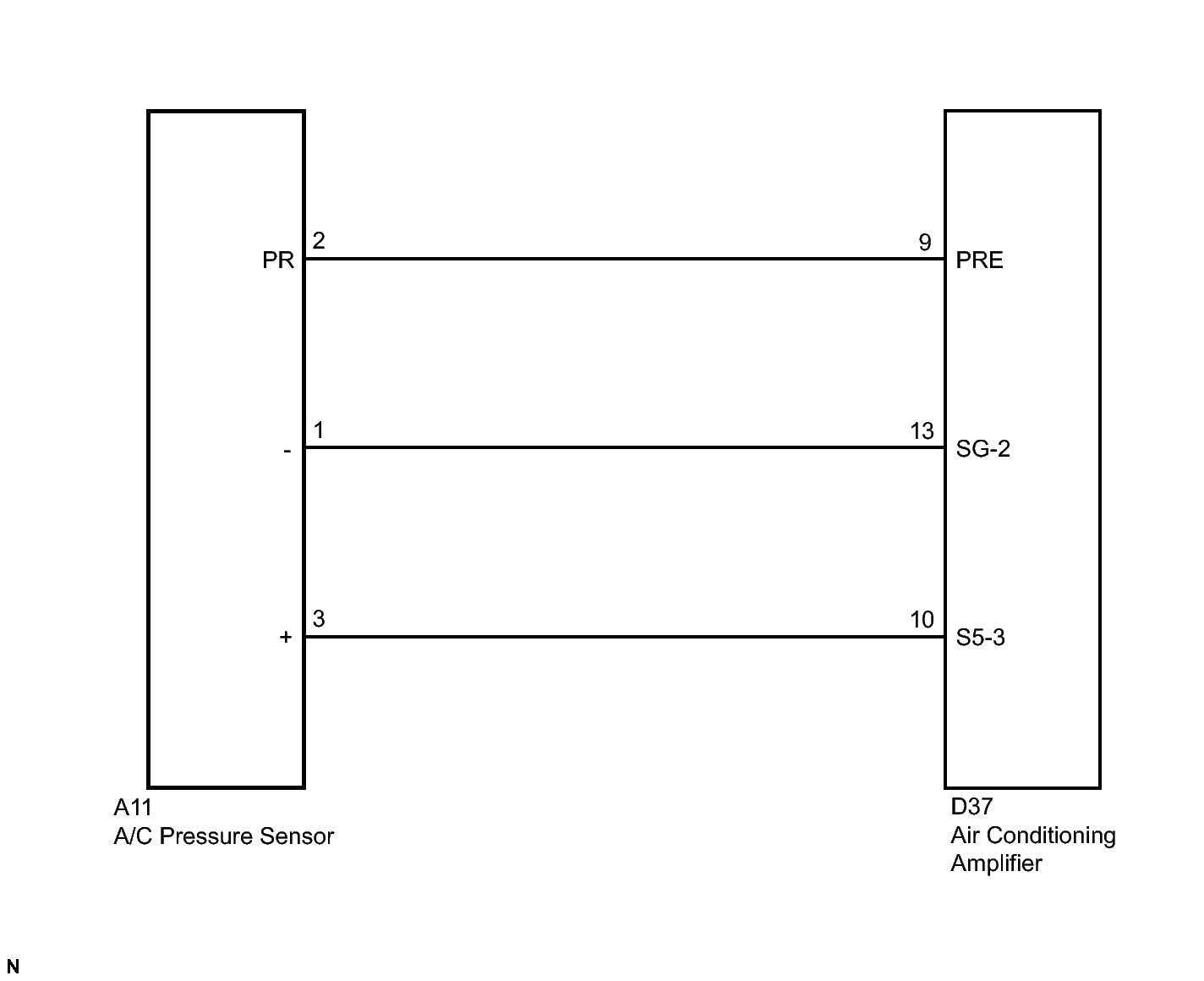

Fig 1: Pressure Sensor Circuit - Wiring Diagram

GTY207357

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
