DTC B1413/13: Evaporator Temperature Sensor Circuit: Wiring Diagram

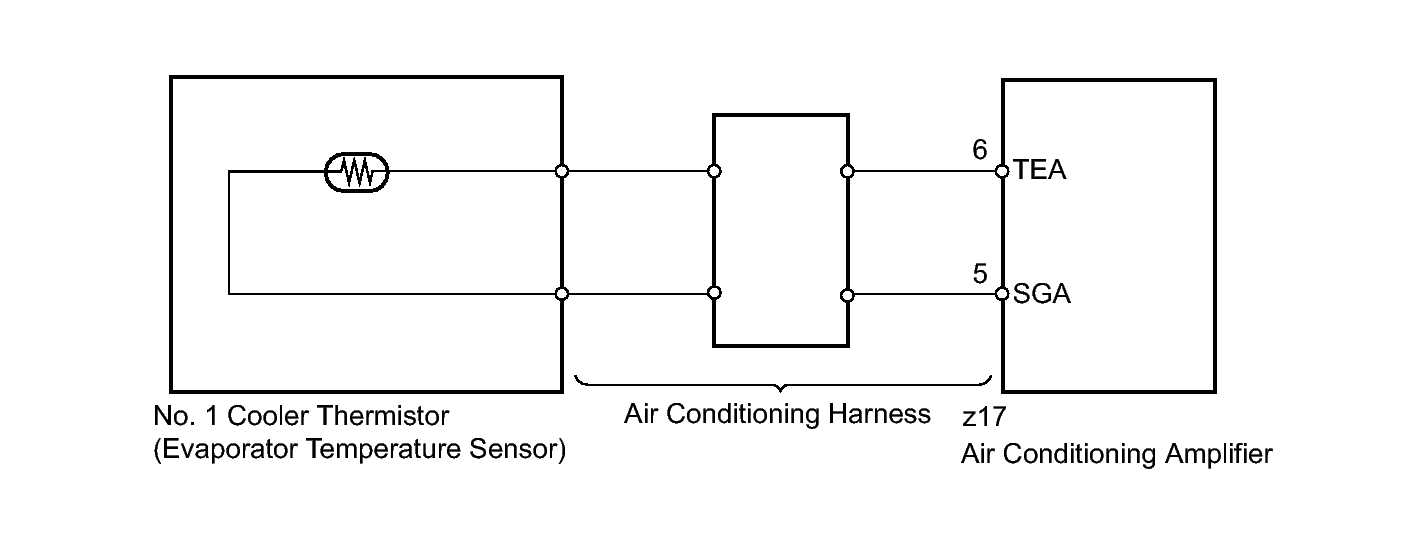

Fig 1: Evaporator Temperature Sensor Circuit - Wiring Diagram

GTY172062

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
