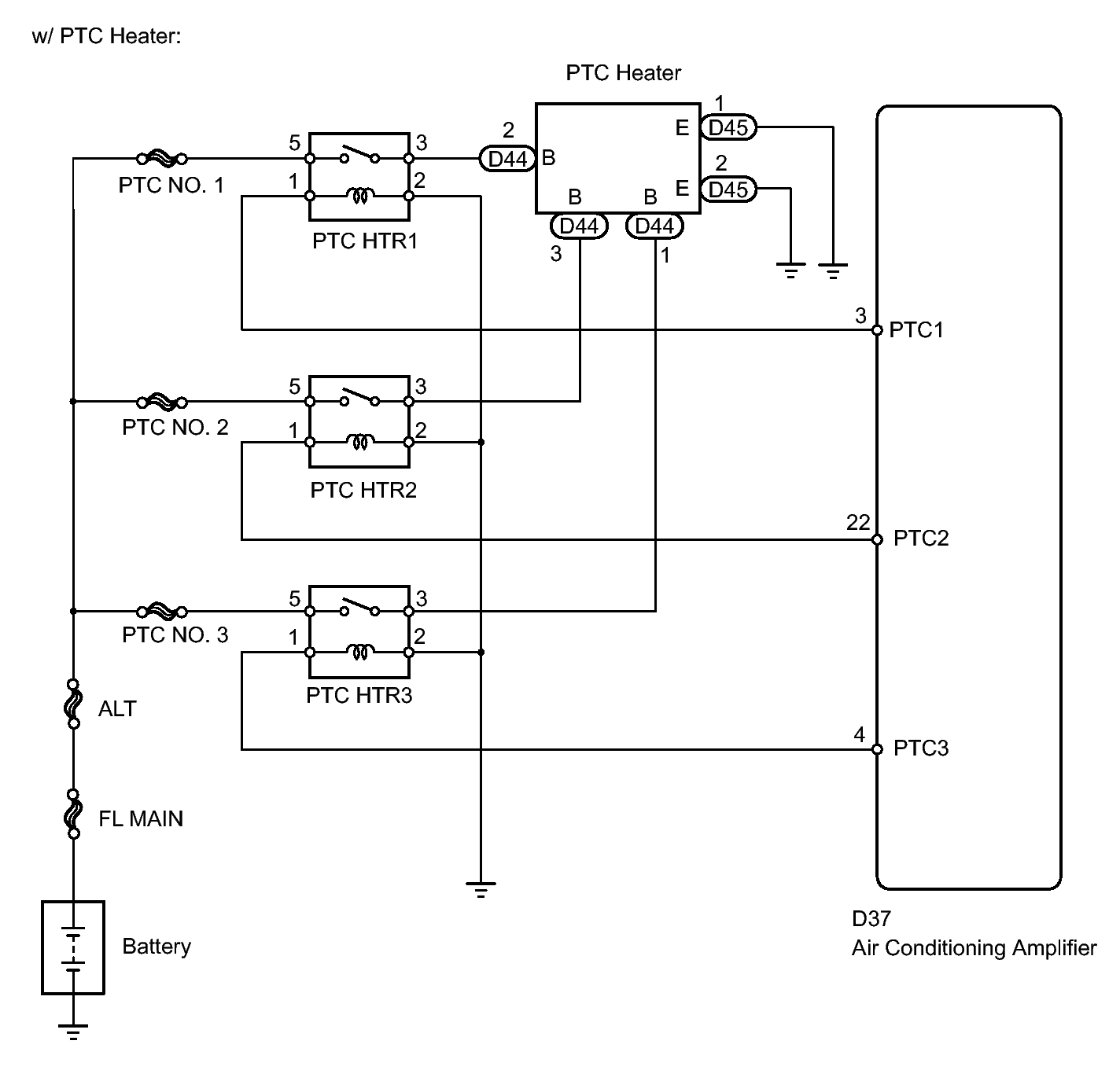

Home >> Toyota >> 2012 >> Highlander Limited, FWD >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Air Conditioning (Automatic) (Diagnostic Codes & Circuit Tests) (Except Hybrid) >> AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System) >> Circuit Tests >> PTC Heater Circuit >> Wiring Diagram
