Back-up Power Source Circuit: Wiring Diagram

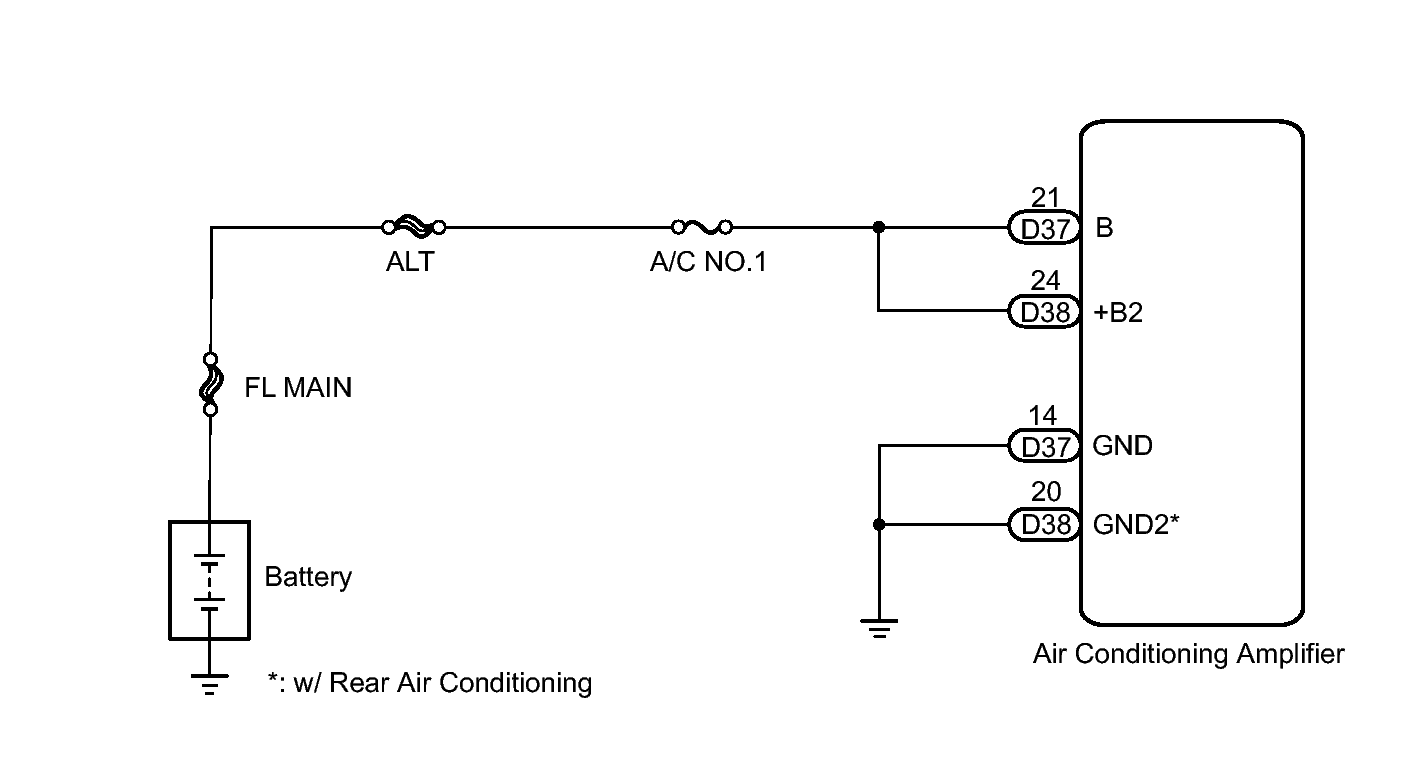

Fig 1: Back-Up Power Source Circuit - Wiring Diagram

GTY187688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
