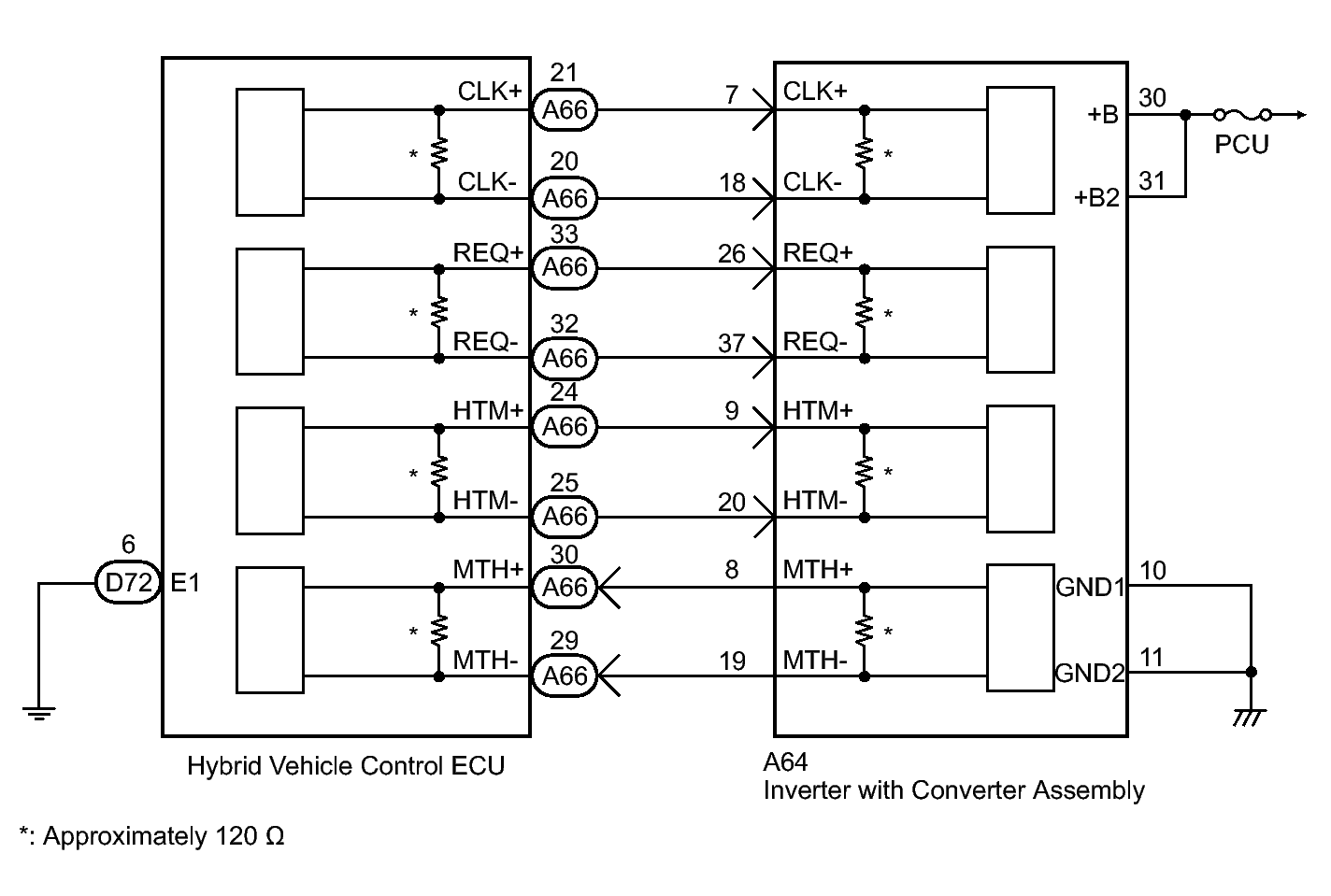

DTC U0110-159: Lost Communication with Driver Motor Control Module; DTC U0110-656: Lost Communication with Driver Motor Control Module; DTC U0110-657: Lost Communication with Driver Motor Control Module: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
