DTC P0AFC-150: Hybrid Battery Pack Sensor Module: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

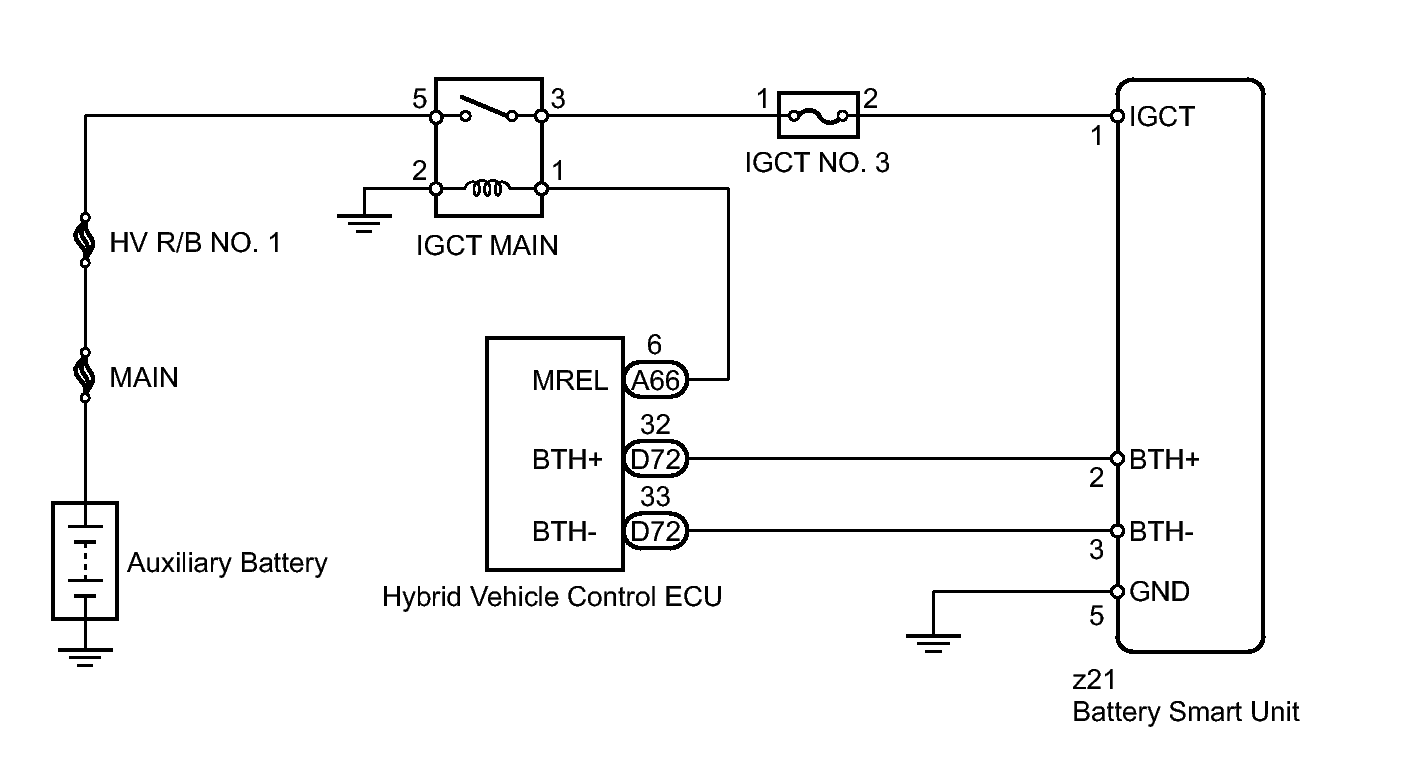

Fig 1: Identifying Hybrid Vehicle Control ECU Wiring Diagram
GTY302906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
