Section 115 (Hybrid Vehicle Control System (Diagnostic Codes (P0ADB-227 - U0424-537) & Circuit Tests)) (Hybrid))
>>
Hybrid Control System
>>
DTC P0AE6-225: Hybrid Battery Precharge Contactor Control Circuit Low; DTC P0AE7-224: Hybrid Battery Precharge Contactor Control Circuit High
>>
Wiring Diagram
DTC P0AE6-225: Hybrid Battery Precharge Contactor Control Circuit Low; DTC P0AE7-224: Hybrid Battery Precharge Contactor Control Circuit High: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

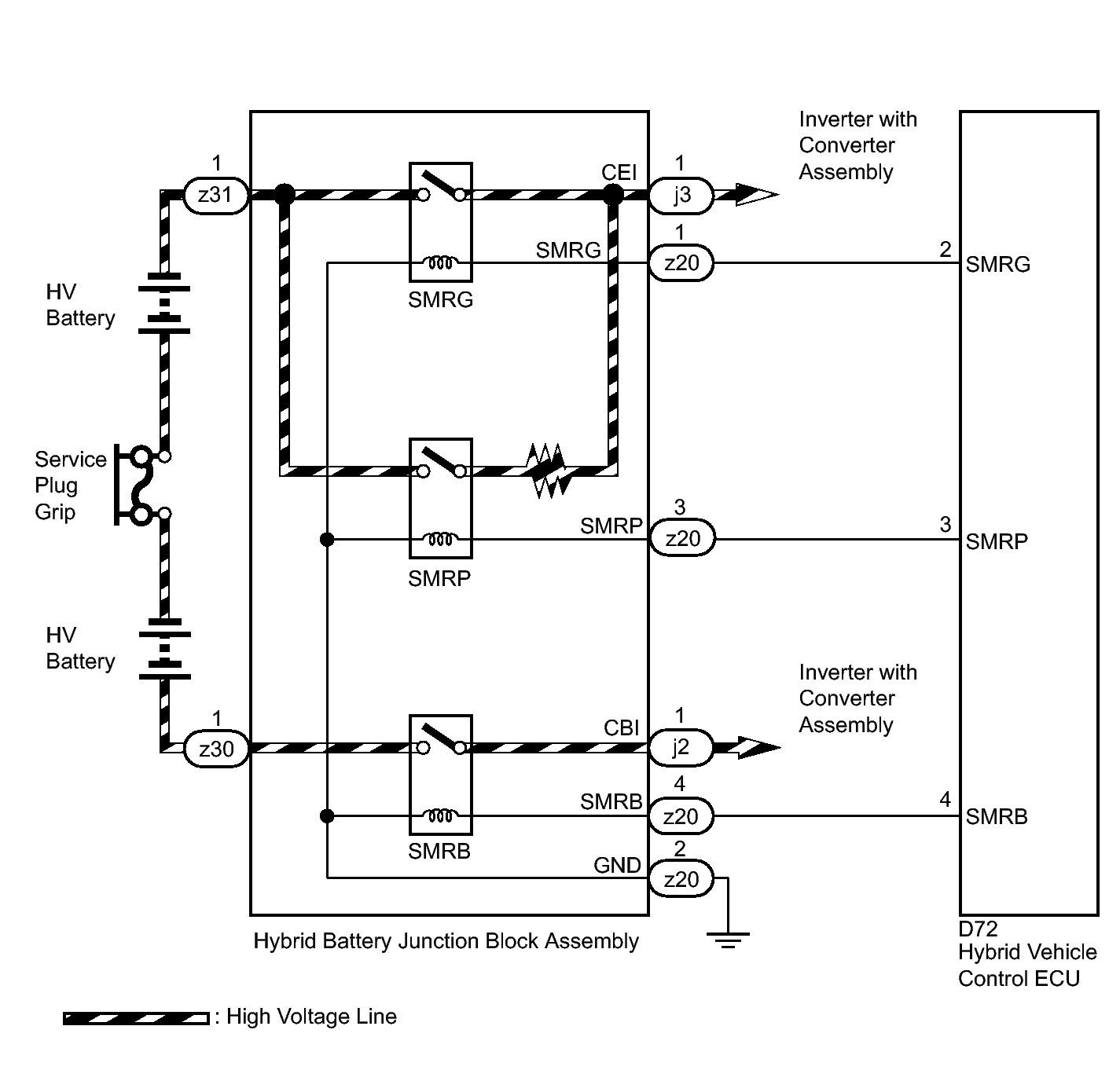

Fig 1: Identifying Hybrid Battery Junction Assembly Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
