DTC P0A38-257: Generator Temperature Sensor Circuit Low; DTC P0A39-259: Generator Temperature Sensor Circuit High: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

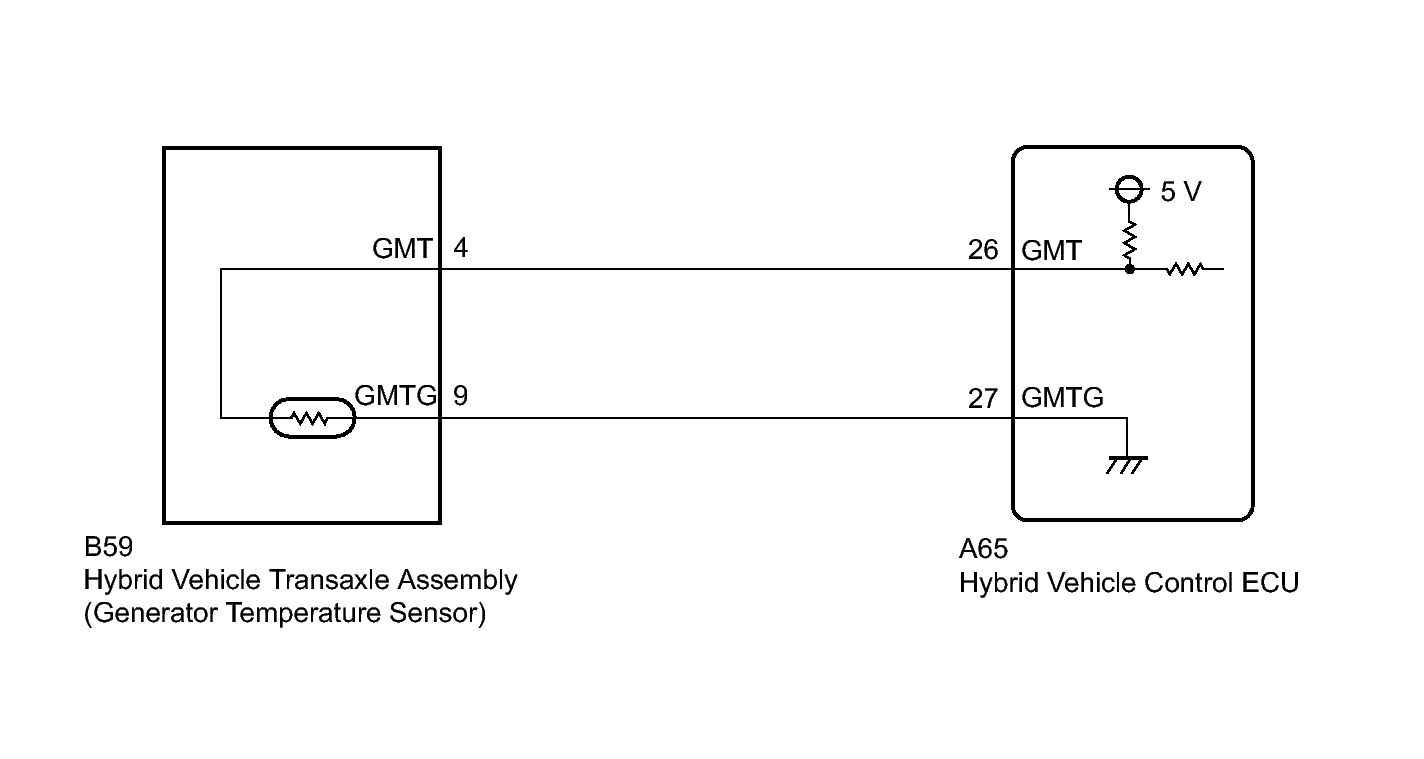

Fig 1: Identifying Hybrid Vehicle Transaxle Assembly Wiring Diagram
GTY295147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
