DTC P0A1A-200: Generator Control Module; DTC P0A1A-792: Generator Control Module; DTC P0A1A-793: Generator Control Module: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

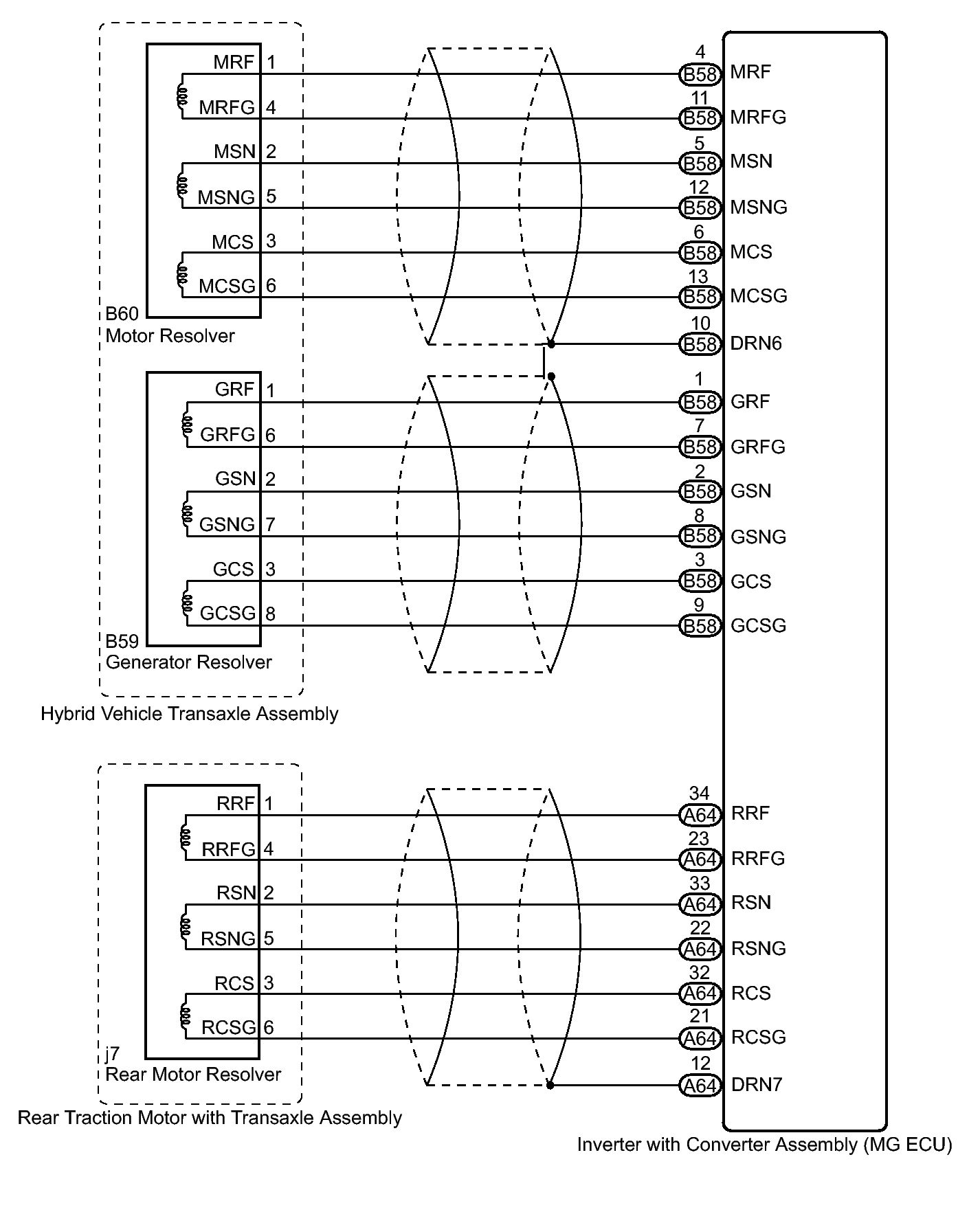

Fig 1: Identifying Inverter With Converter Assembly Wiring Diagram
GTY296269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
