DTC P0A0F-238: Engine Failed to Start: Description

WARNING: This page is about a different variant/trim than selected.

If the hybrid vehicle control ECU detects that the engine or transmission gear has seized, the hybrid vehicle control ECU will perform fail-safe control. Also, if a substance or object is preventing the engine or transmission internal components from rotating, the hybrid vehicle control ECU will perform fail-safe control.

DTC No. INF Code DTC Detection Condition Trouble Area
P0A0F 238 Engine does not start even though it is being cranked (transaxle input malfunction [engine system]).
  • Hybrid vehicle transaxle assembly
  • Transmission input damper assembly
  • Hybrid vehicle control ECU
  • Engine

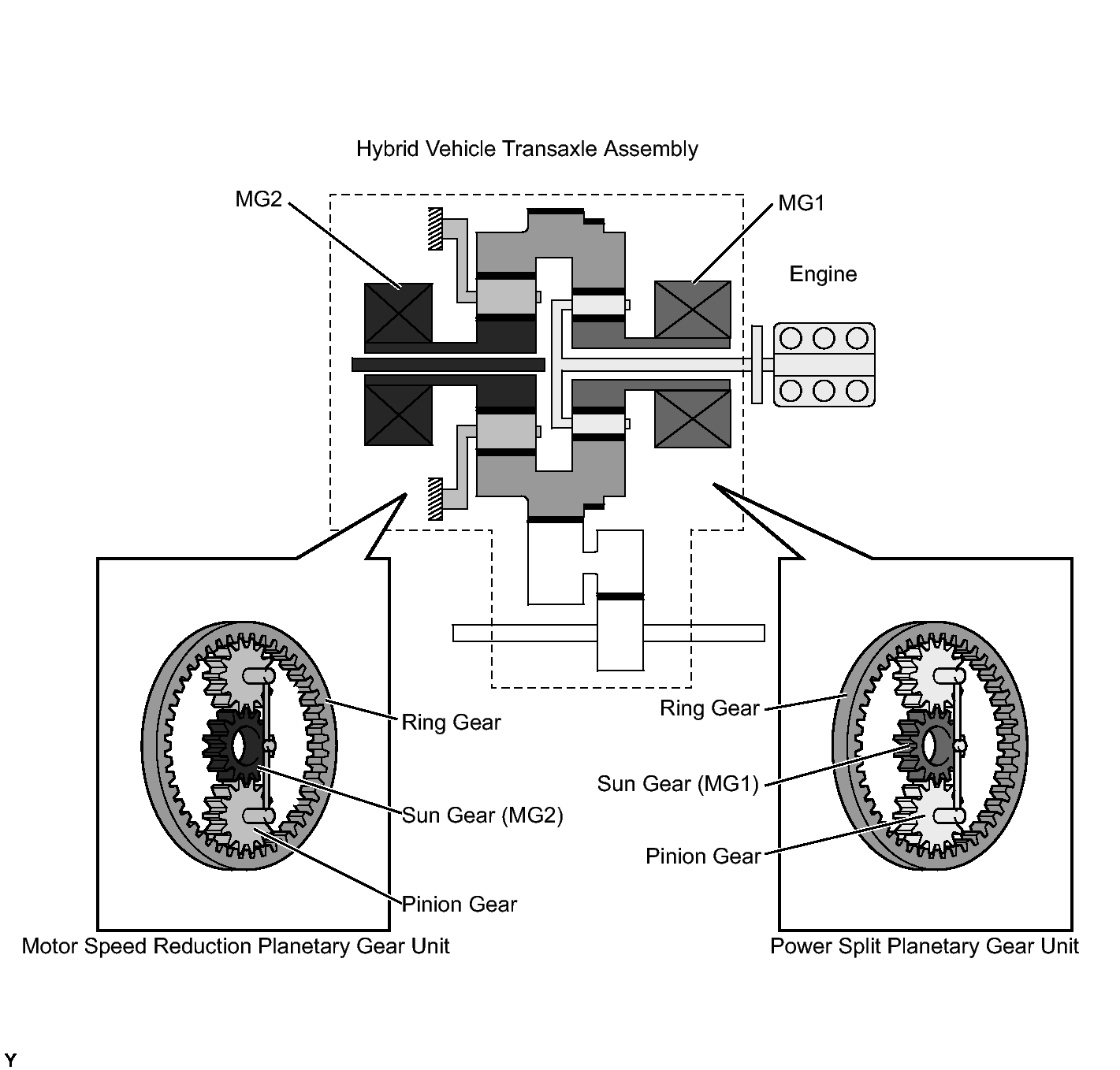

Fig 1: Identifying Hybrid Vehicle Transaxle Assembly
GTY305314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
