DTC P0A08-264: DC / DC Converter Status Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

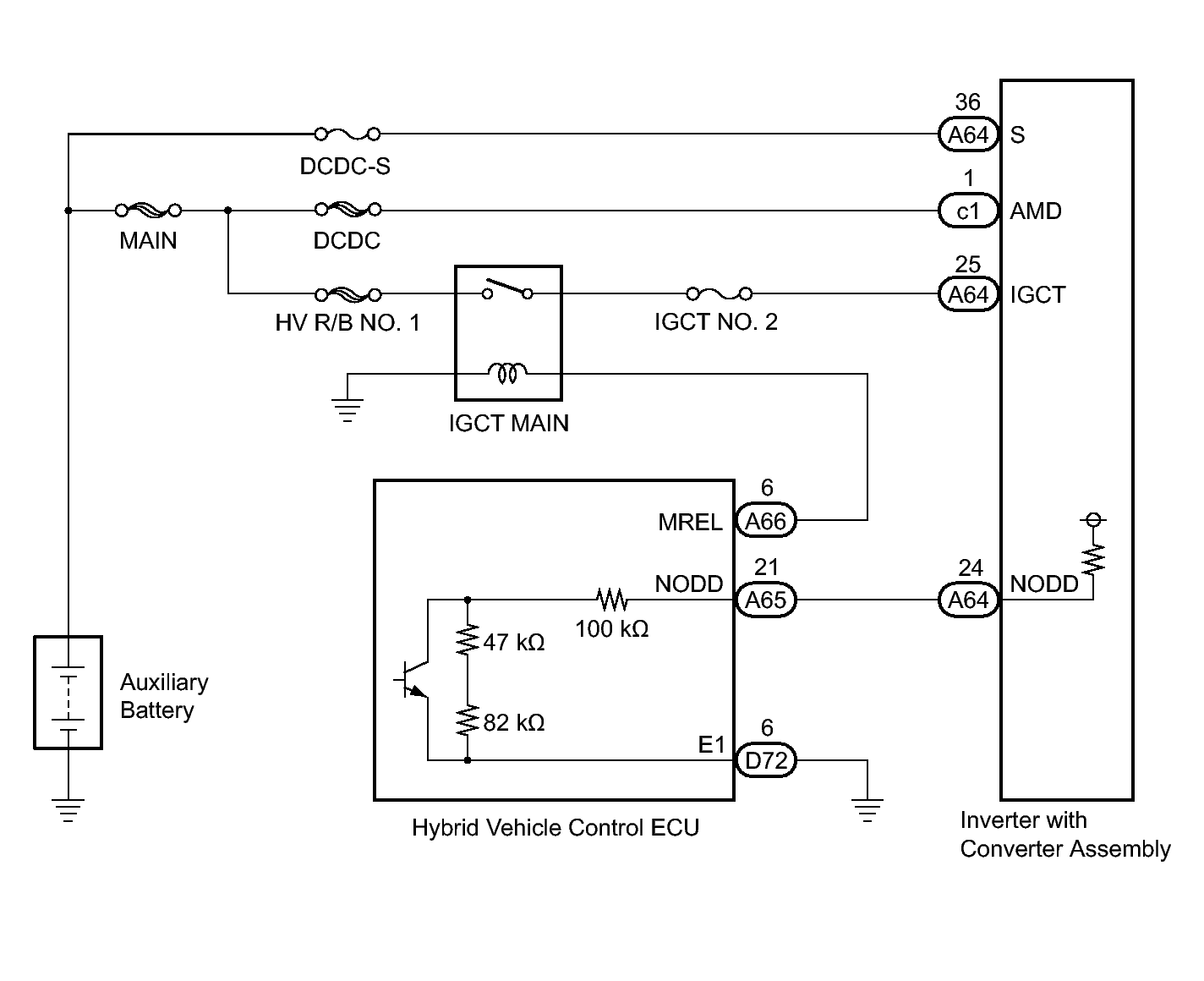

Fig 1: Identifying IGCT MAIN Wiring Diagram
GTY296734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
