DTC P0617-142: Starter Relay Circuit High
>>
Wiring Diagram
DTC P0617-142: Starter Relay Circuit High: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

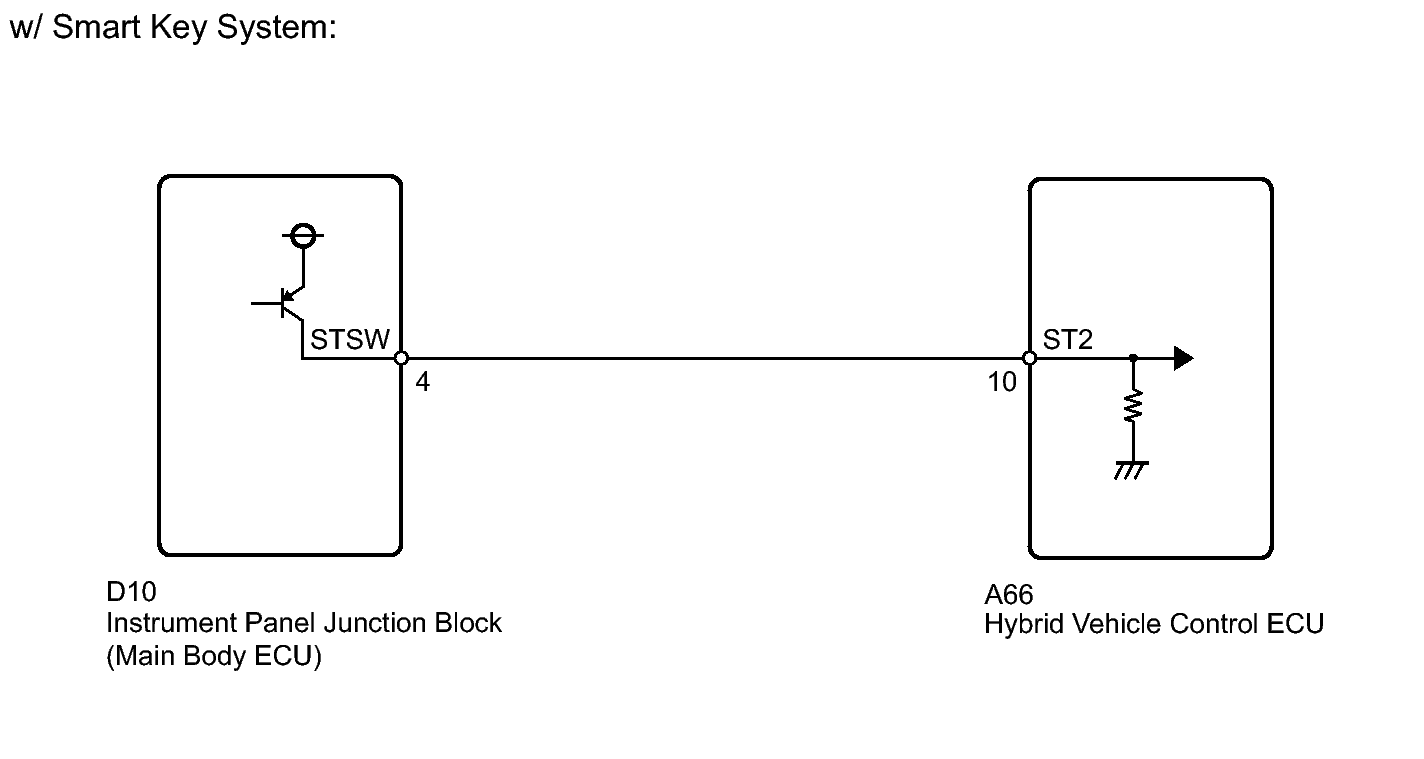

Fig 1: Identifying Instrument Panel Junction Block Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

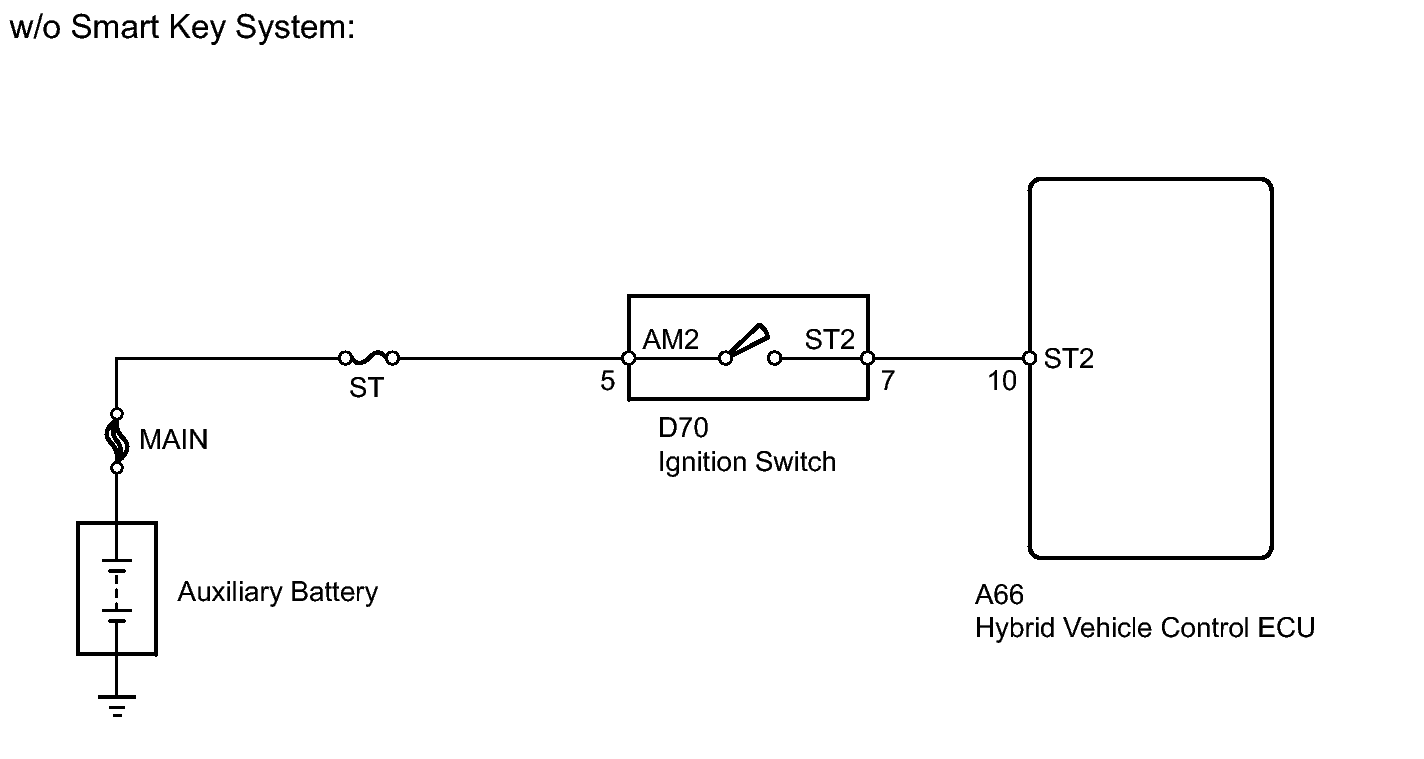

Fig 2: Identifying Ignition Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
