Seat Heater

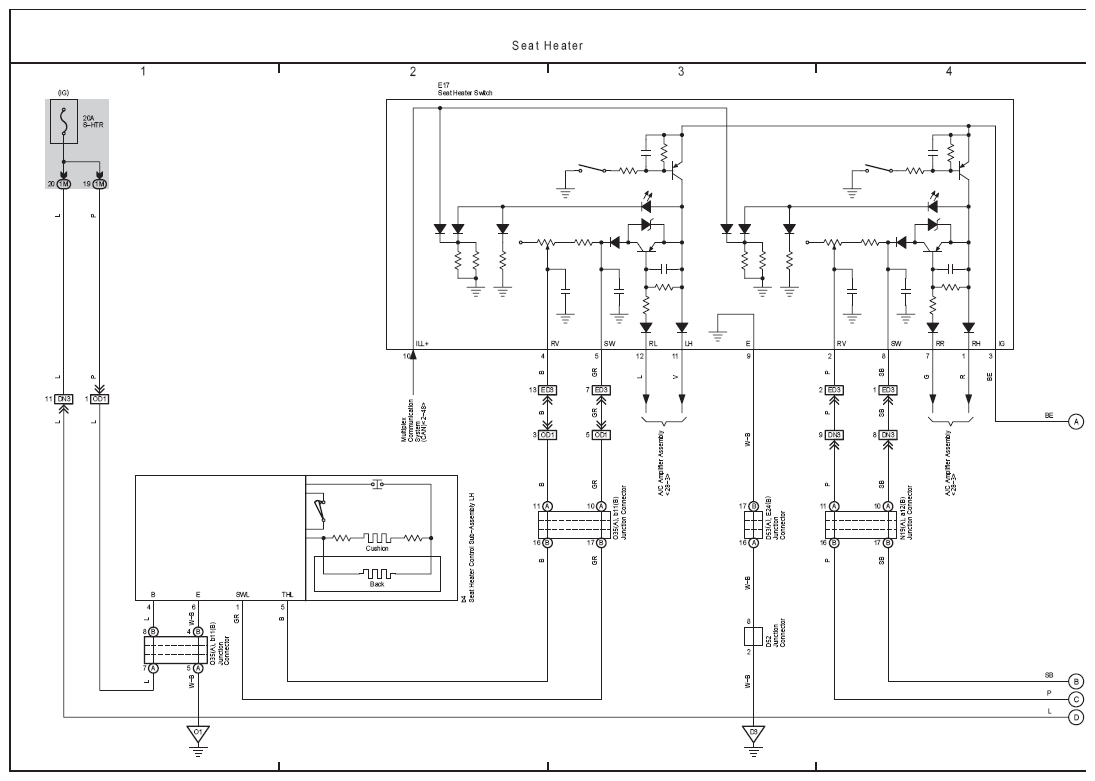

Fig 1: Seat Heater Electrical Wiring Diagram (1 Of 2)
G08849845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

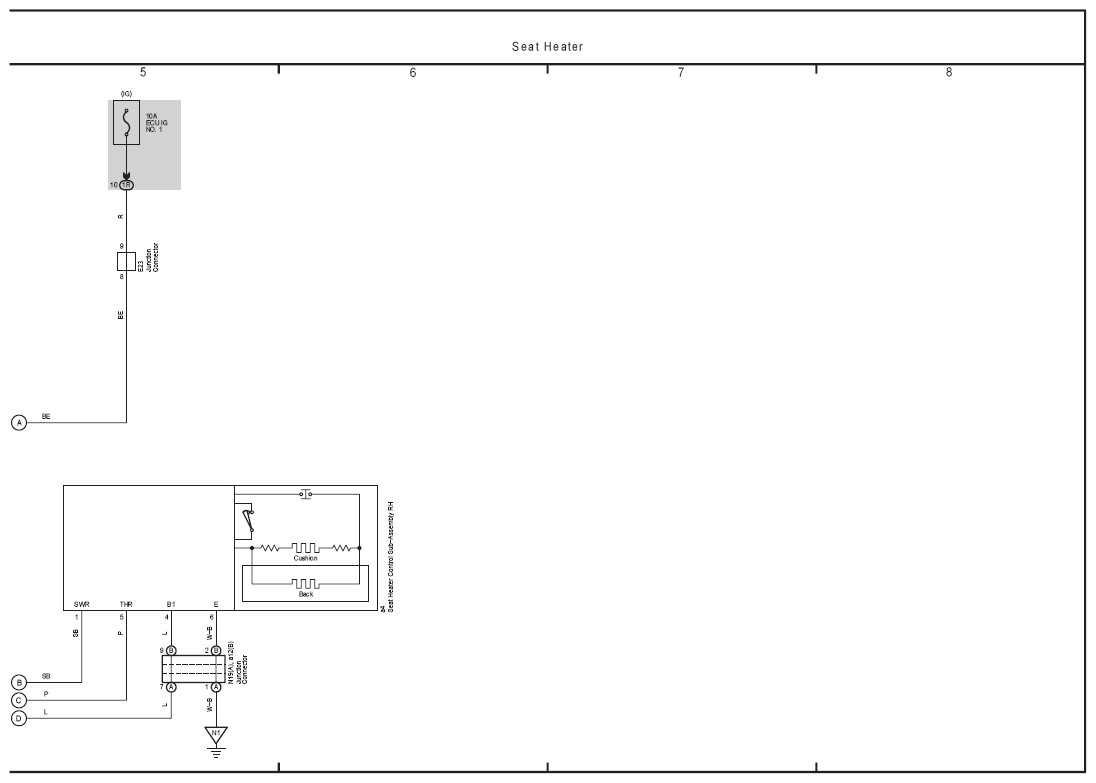

Fig 2: Seat Heater Electrical Wiring Diagram (2 Of 2)
G08849846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
