Power Seat (Front Seats)

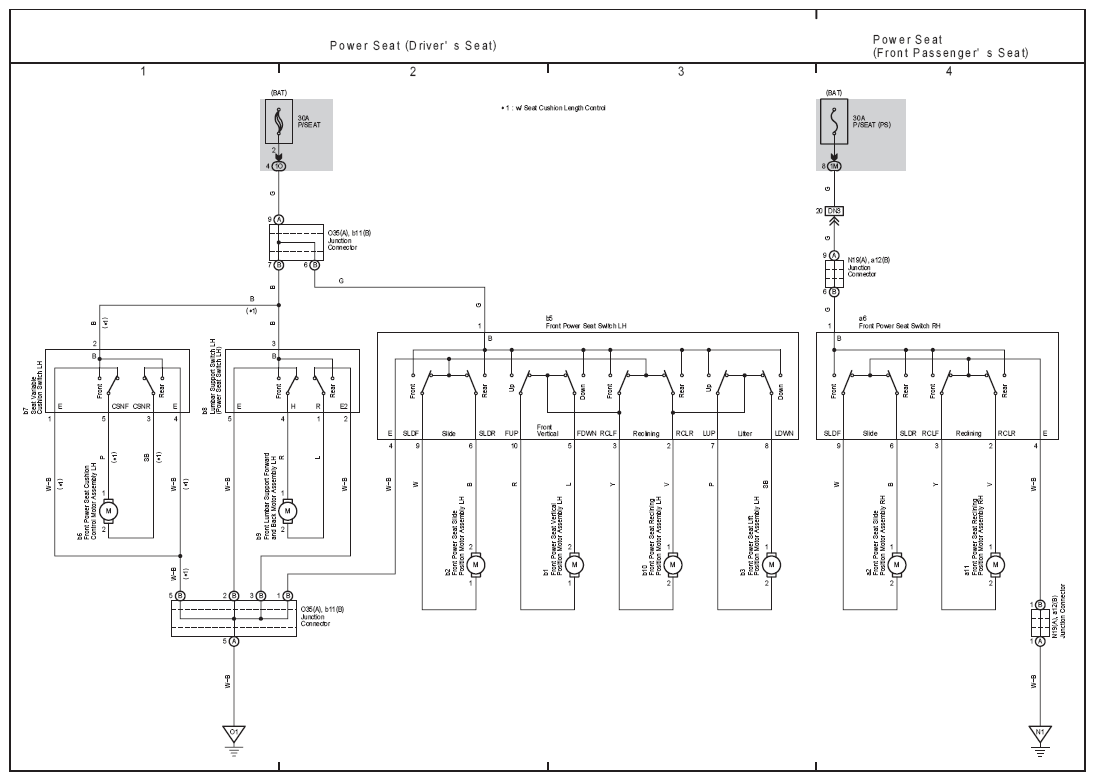

Fig 1: Power Seat (Front Driver & Front Passenger Seats) Electrical Wiring Diagram

G08849844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
