Overall Electrical Wiring Diagram
>>
Power Back Door
Power Back Door

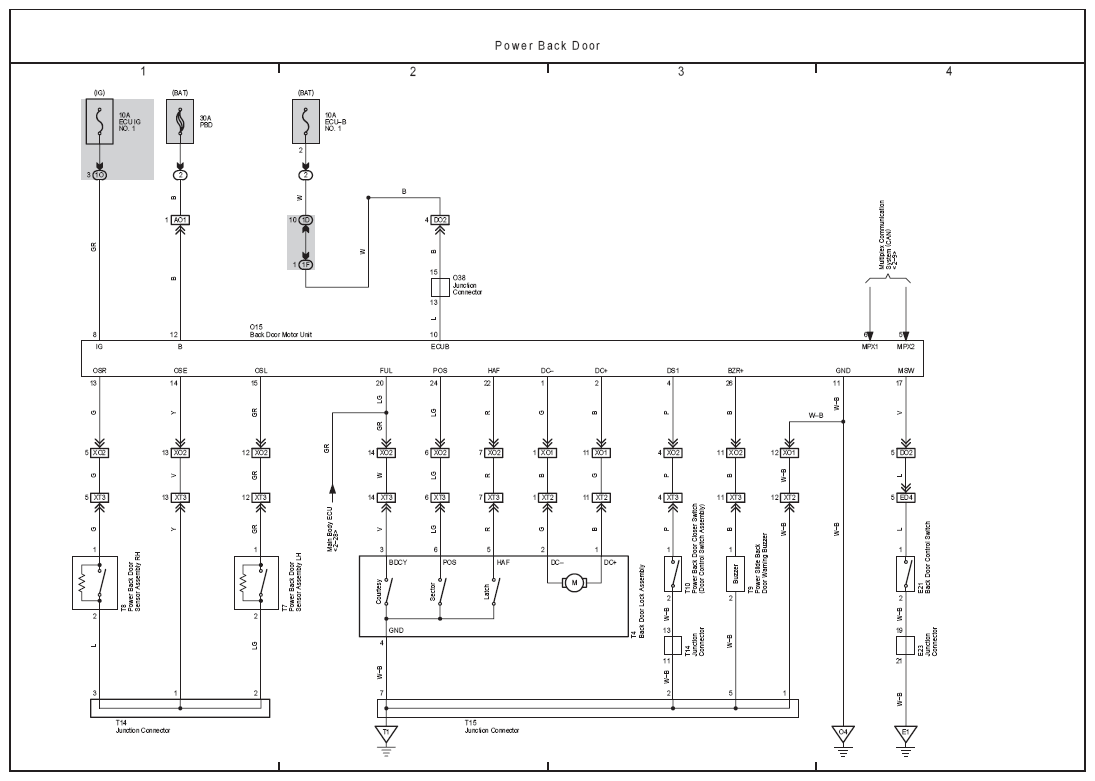

Fig 1: Power Back Door Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
