Multiplex Communication System (CAN)

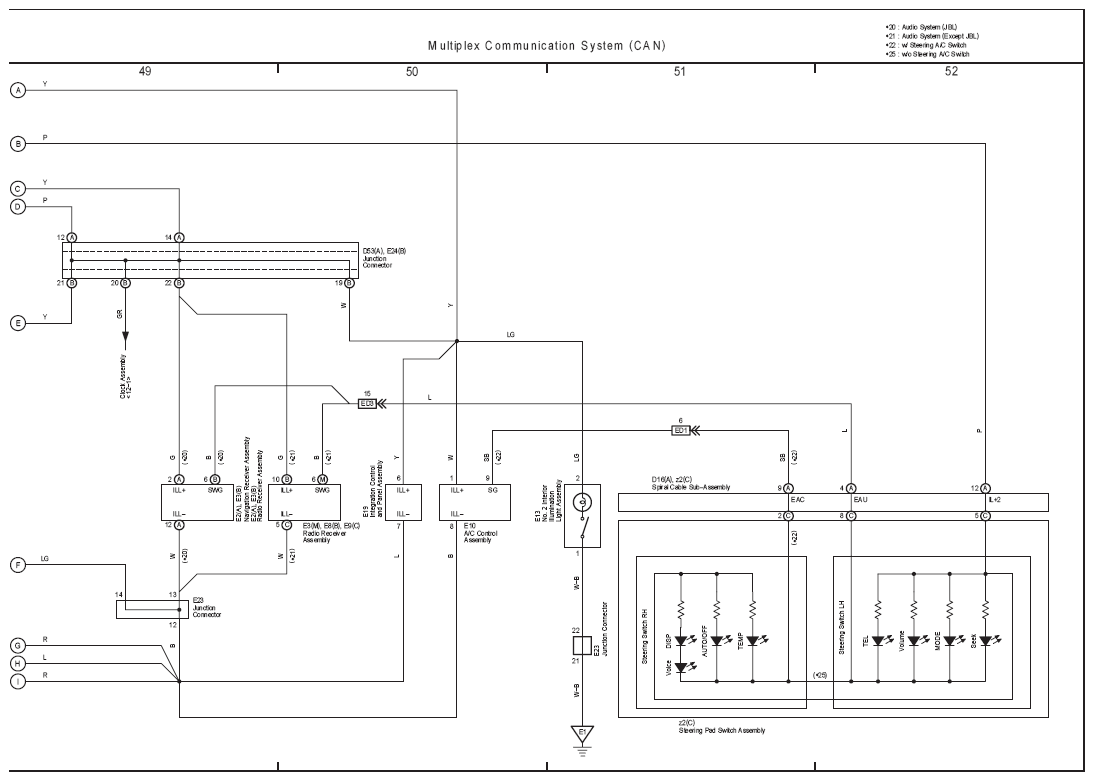

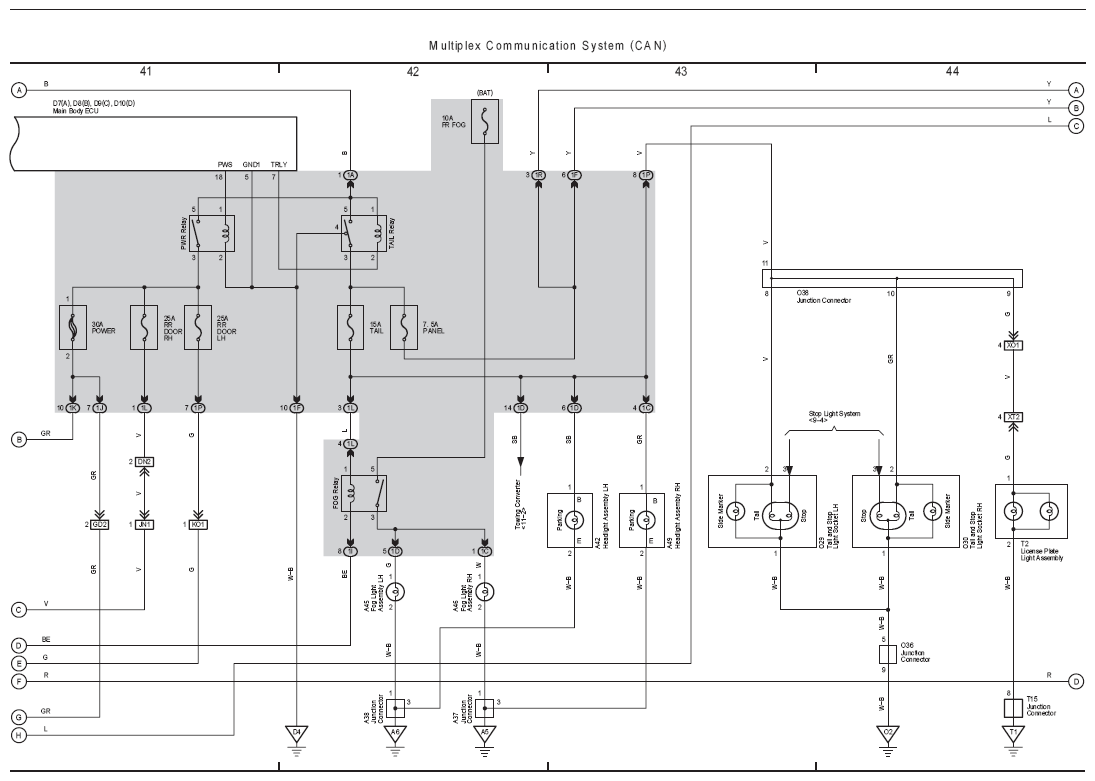

Fig 1: Multiplex Communication System Electrical Wiring Diagram (CAN; 1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

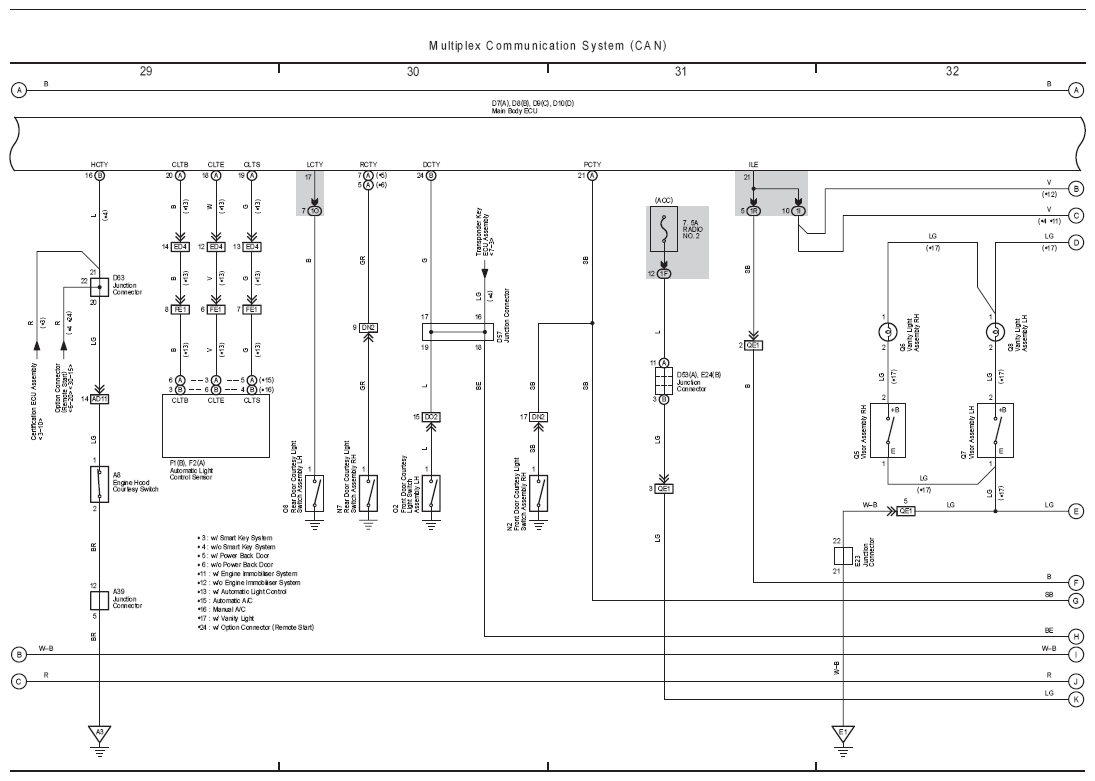

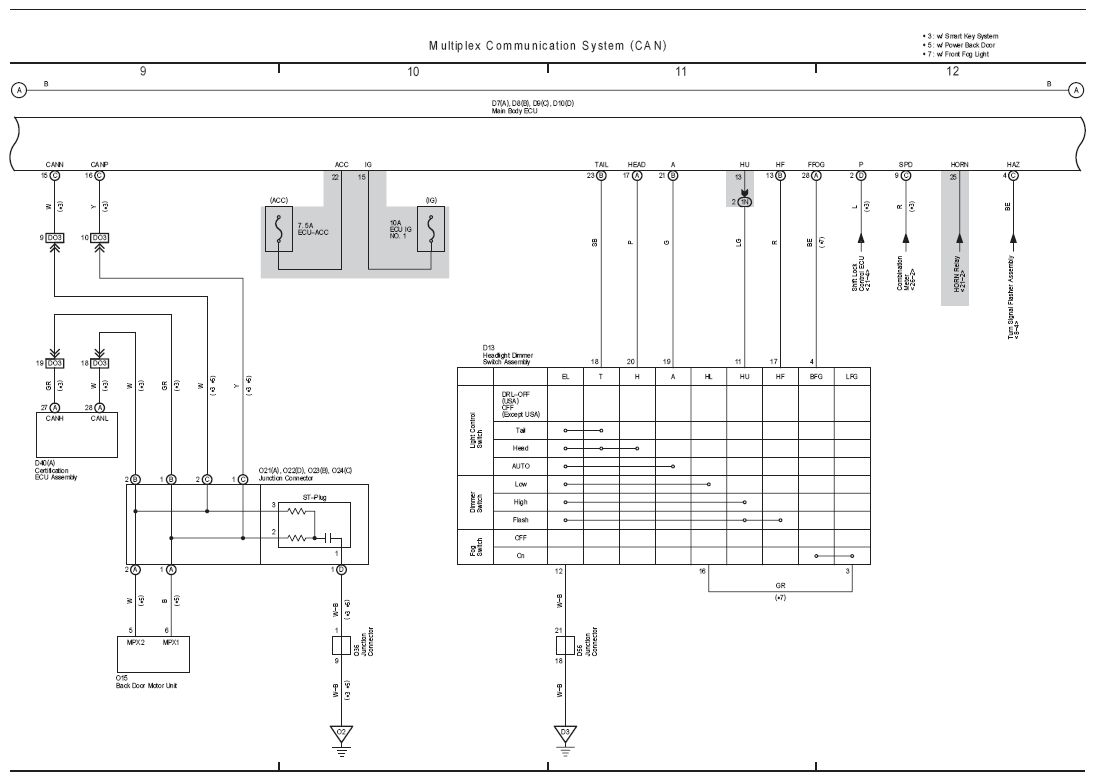

Fig 2: Multiplex Communication System Electrical Wiring Diagram (CAN; 2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

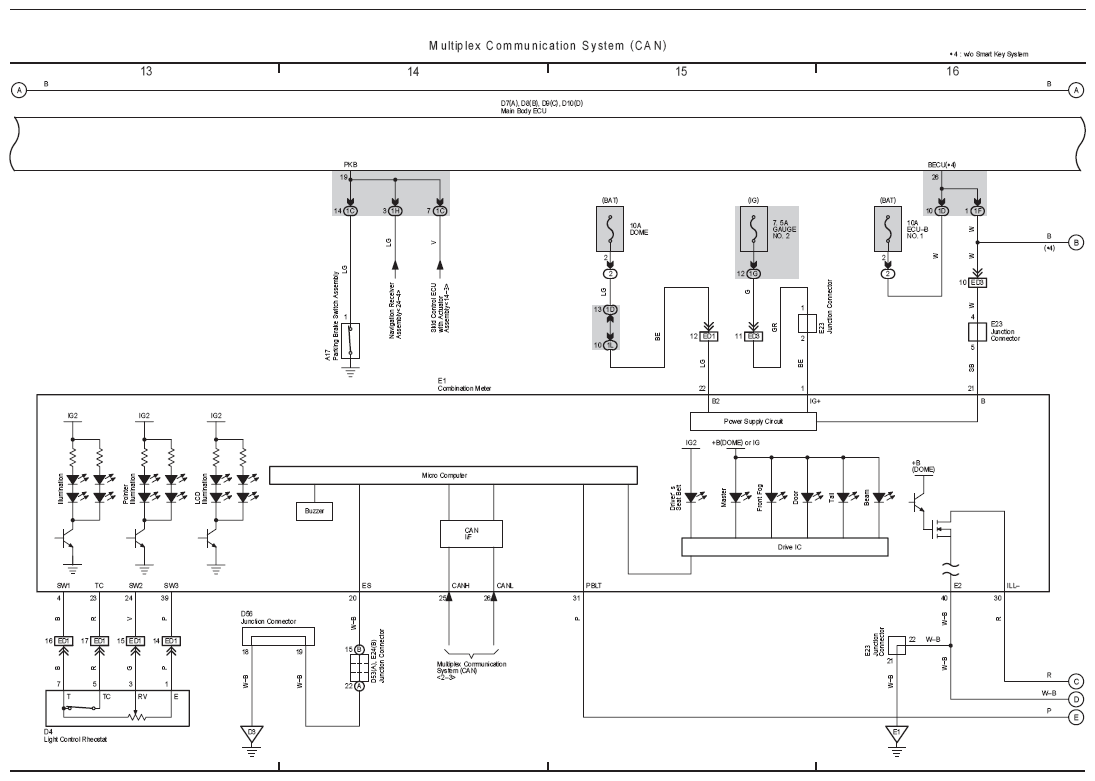

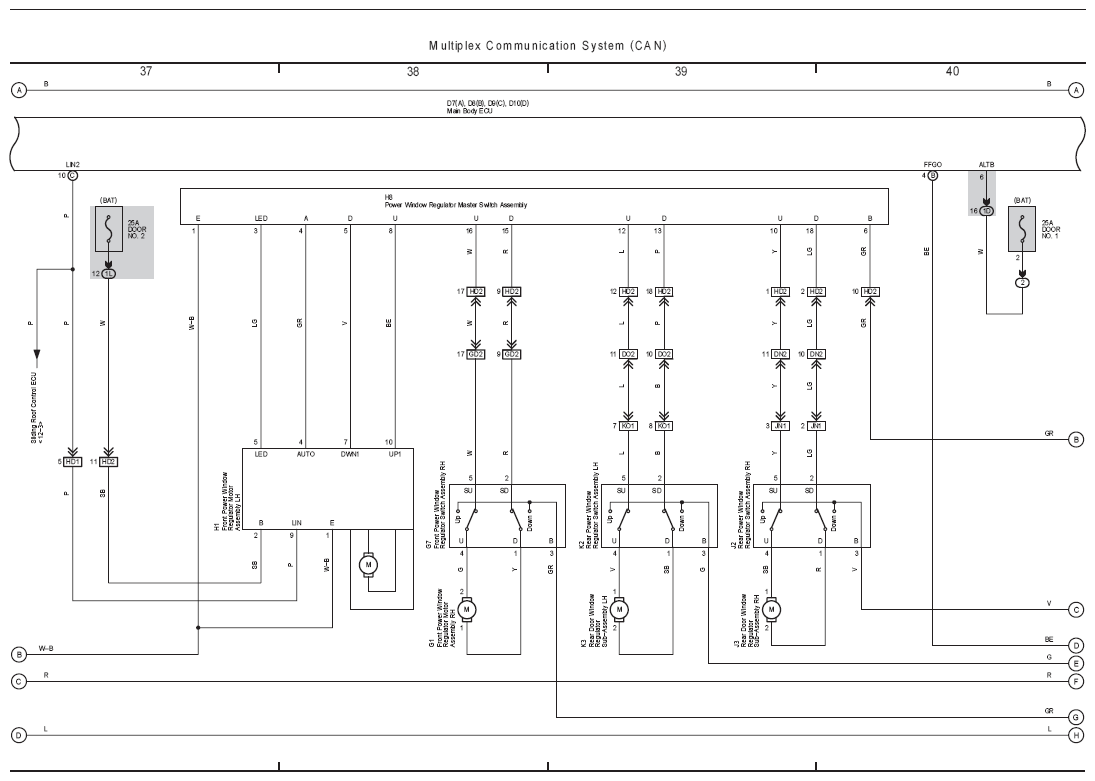

Fig 3: Multiplex Communication System Electrical Wiring Diagram (CAN; 3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

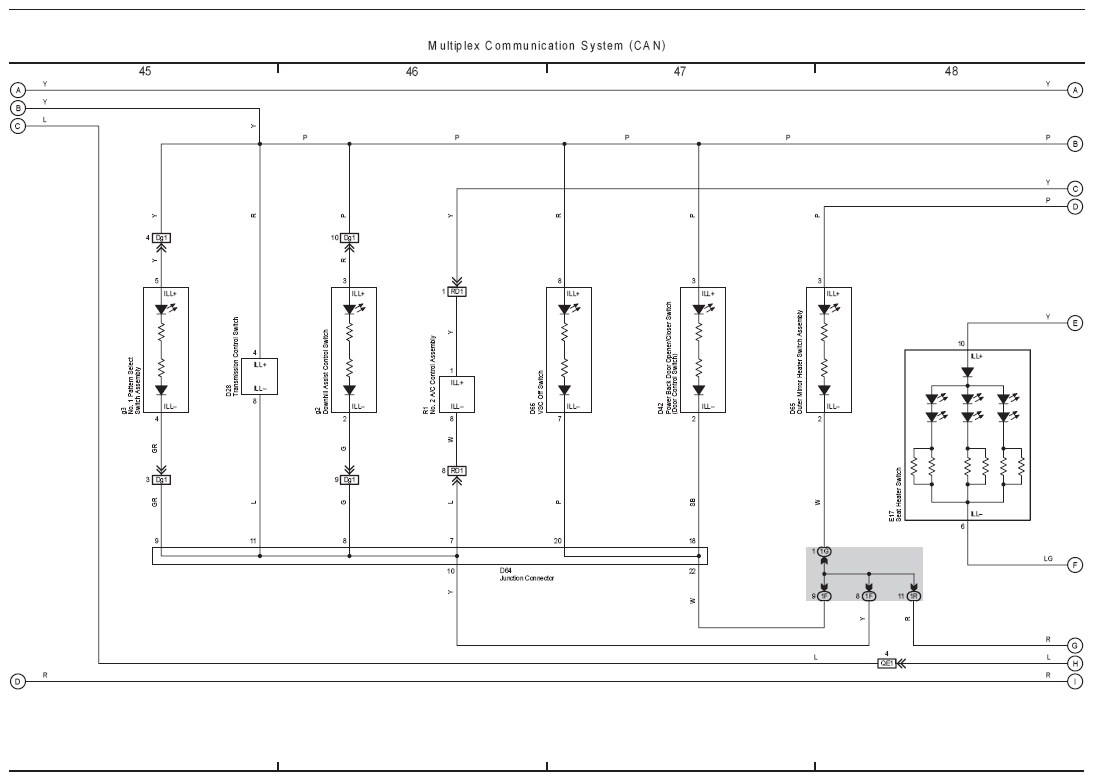

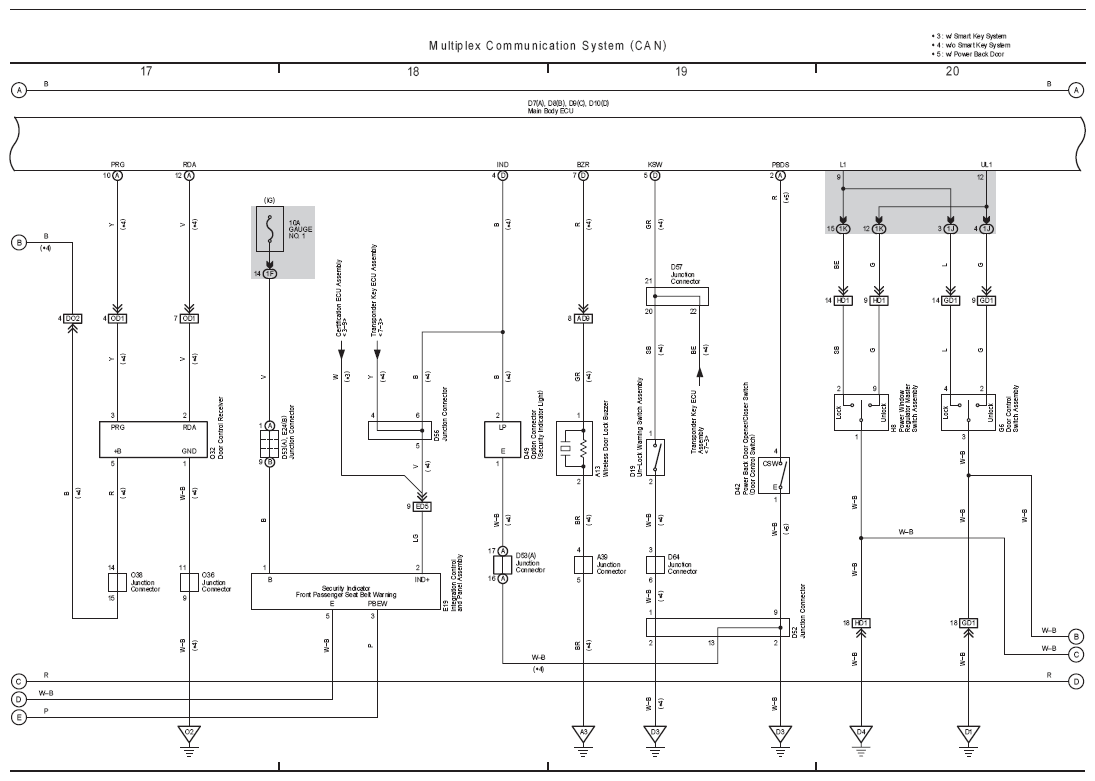

Fig 4: Multiplex Communication System Electrical Wiring Diagram (CAN; 4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

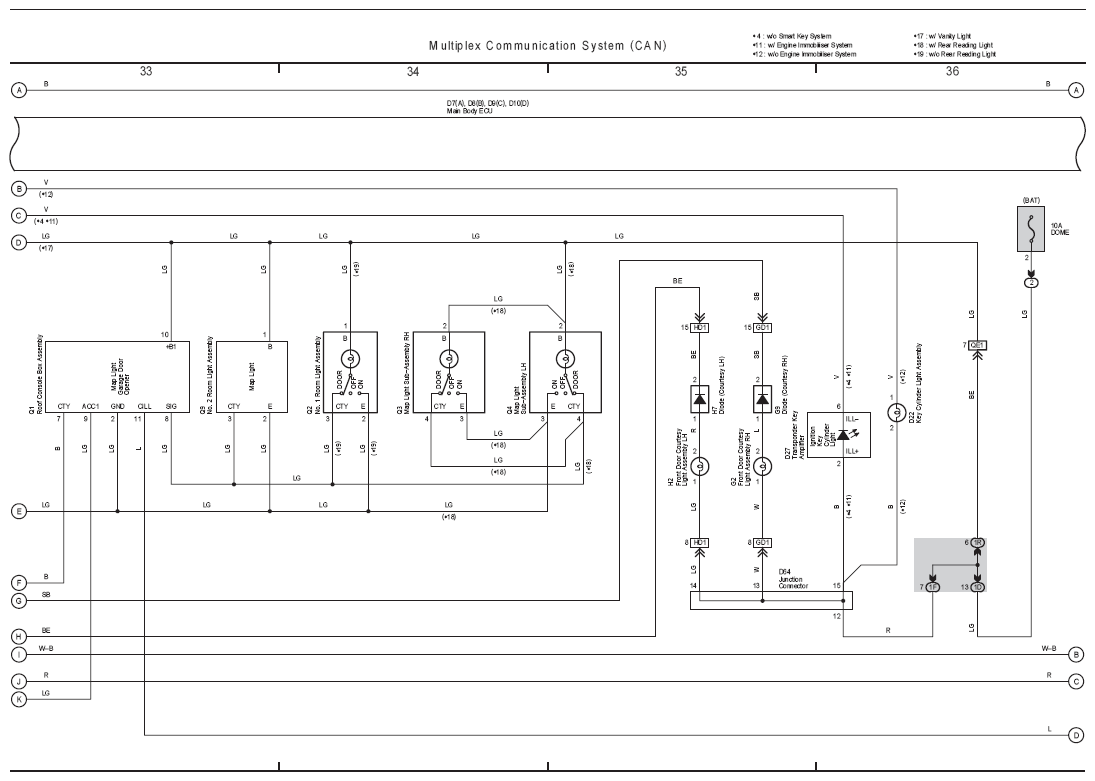

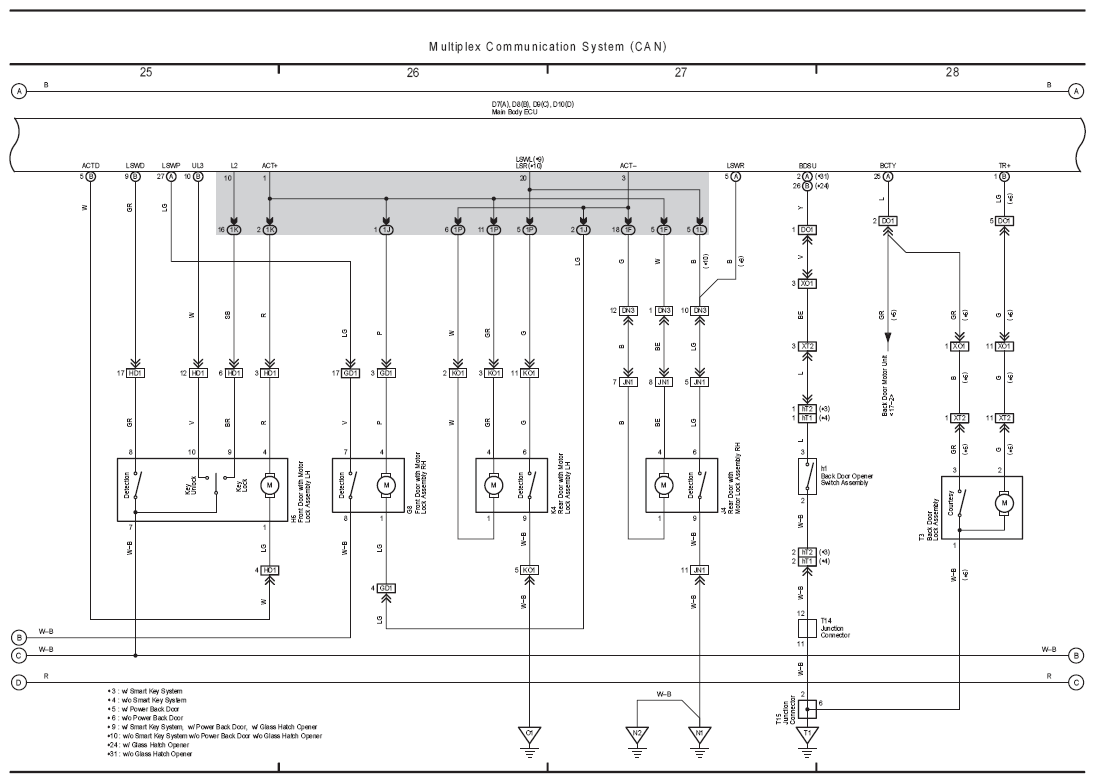

Fig 5: Multiplex Communication System Electrical Wiring Diagram (CAN; 5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

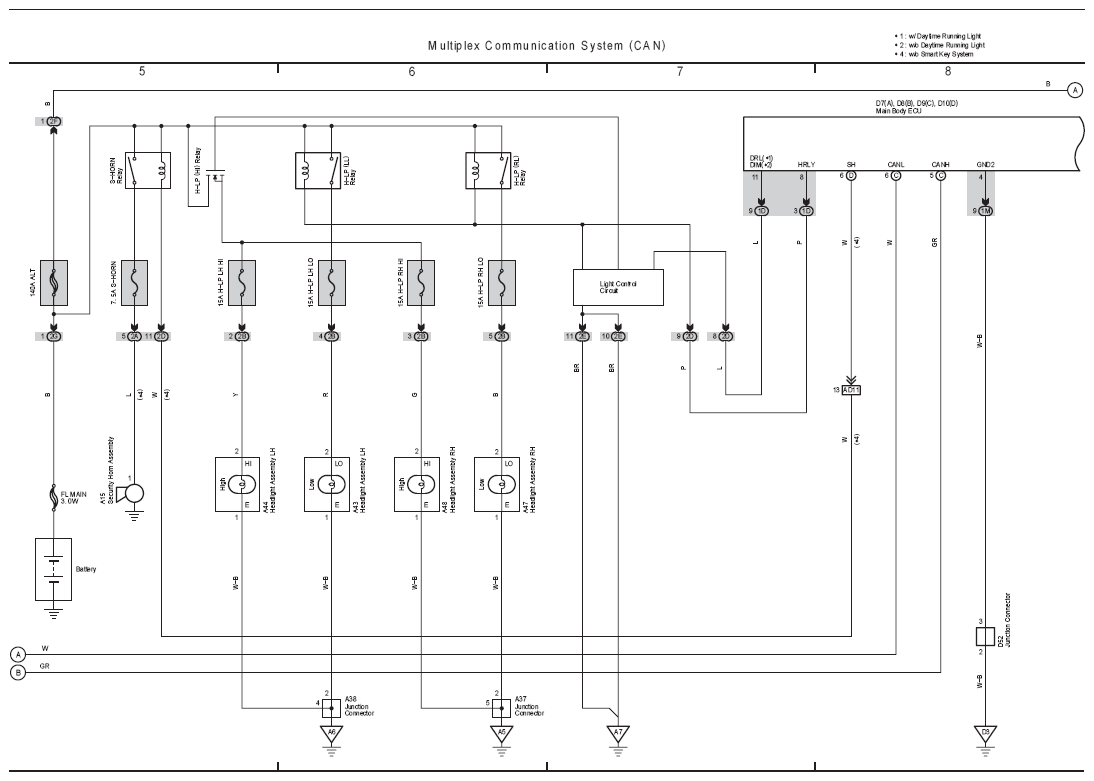

Fig 6: Multiplex Communication System Electrical Wiring Diagram (CAN; 6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

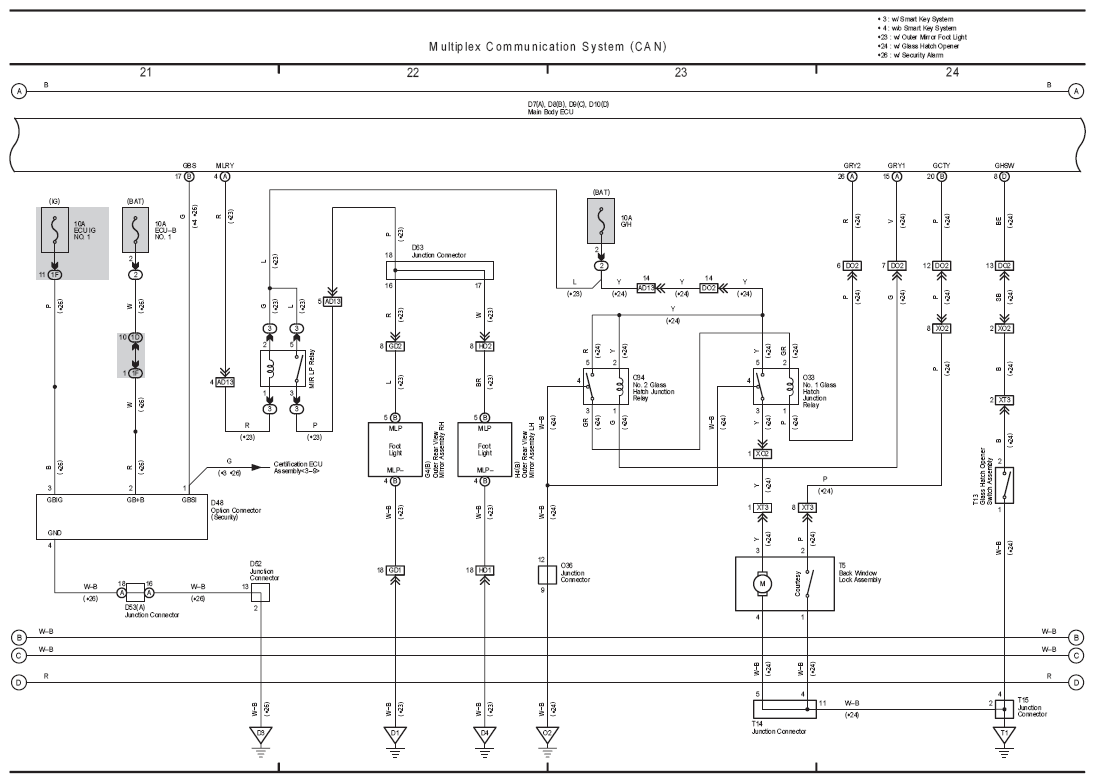

Fig 7: Multiplex Communication System Electrical Wiring Diagram (CAN; 7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

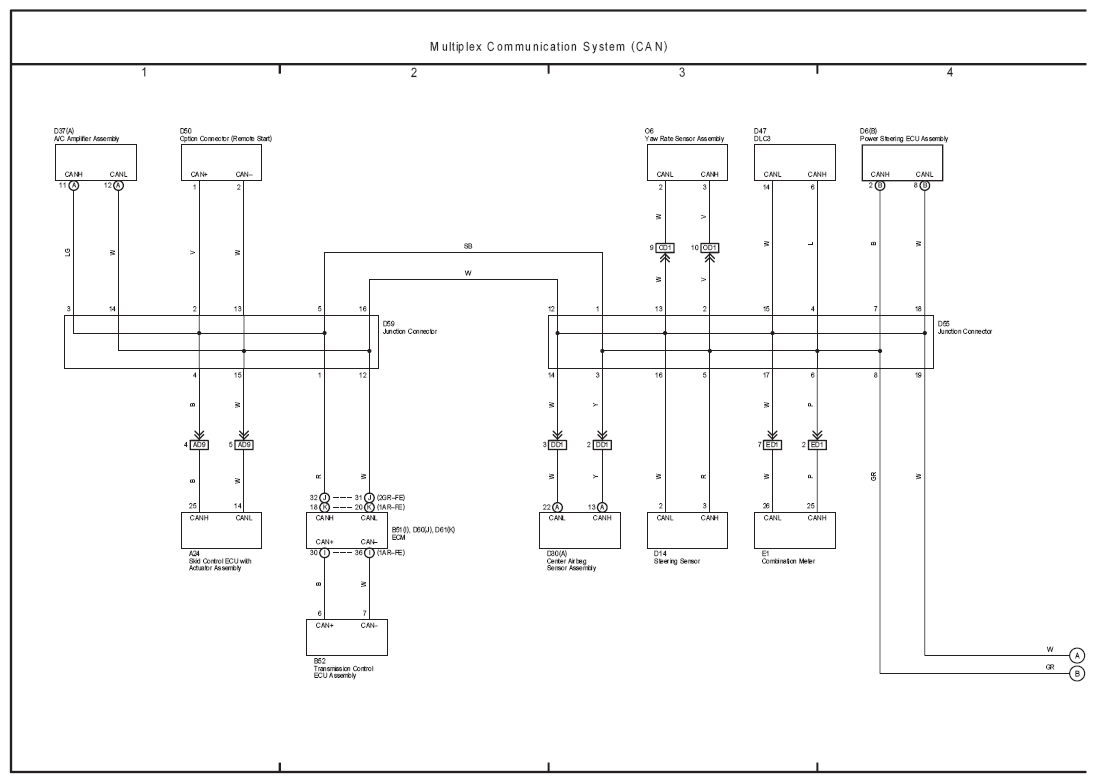

Fig 8: Multiplex Communication System Electrical Wiring Diagram (CAN; 8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Multiplex Communication System Electrical Wiring Diagram (CAN; 9 Of 13)

Fig 10: Multiplex Communication System Electrical Wiring Diagram (CAN; 10 Of 13)

Fig 11: Multiplex Communication System Electrical Wiring Diagram (CAN; 11 Of 13)

Fig 12: Multiplex Communication System Electrical Wiring Diagram (CAN; 12 Of 13)

Fig 13: Multiplex Communication System Electrical Wiring Diagram (CAN; 13 Of 13)
