Mirror Heater, Remote Control Mirror

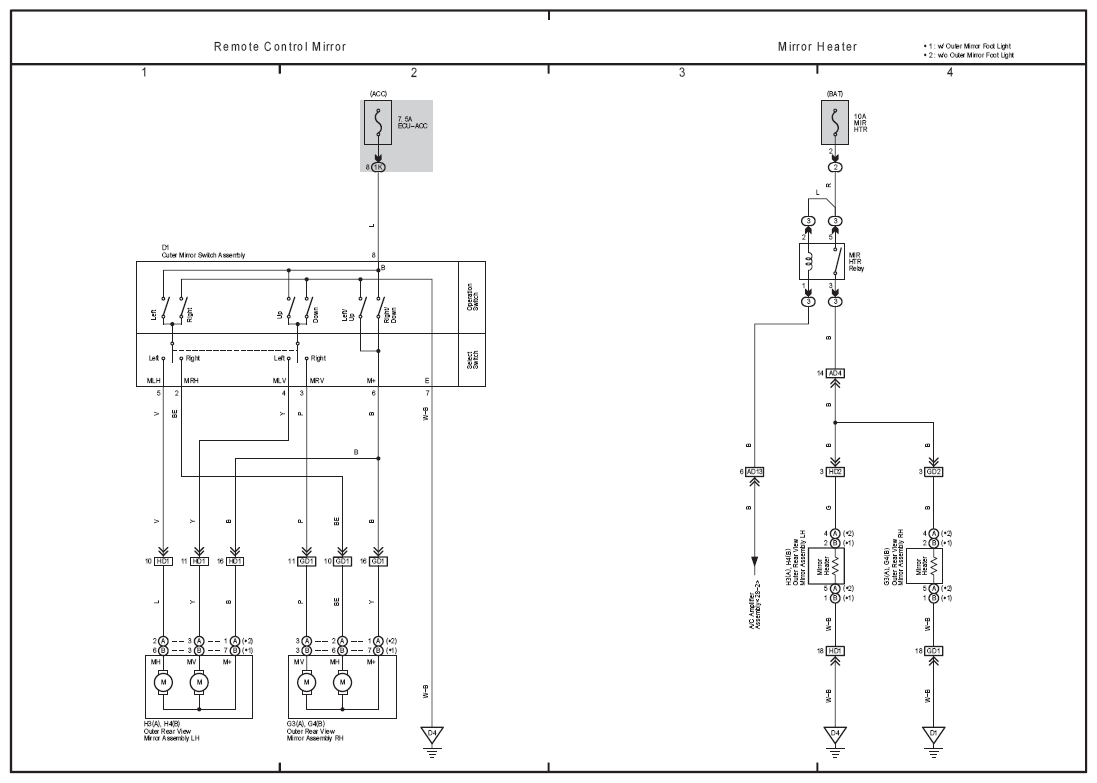

Fig 1: Mirror Heater And Remote Control Mirror Electrical Wiring Diagram

G08849847

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
