Ignition (1AR-FE)

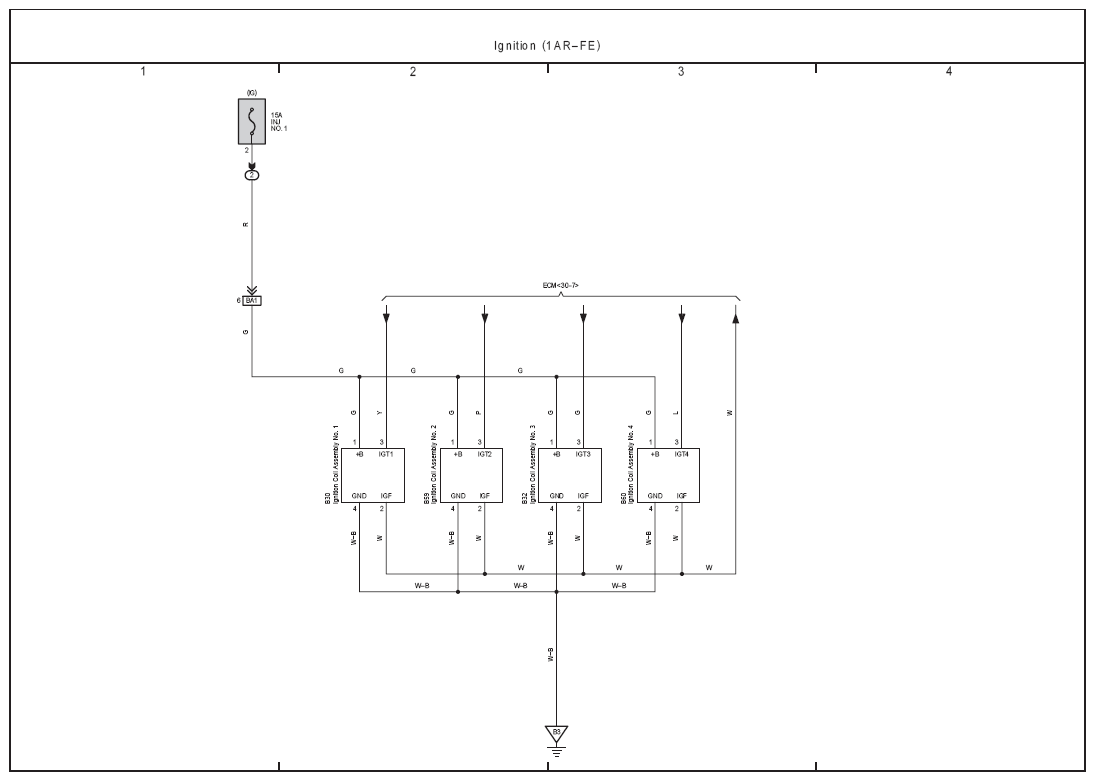

Fig 1: Ignition Electrical Wiring Diagram (1AR-FE)

G08849864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
