Front Wiper And Washer

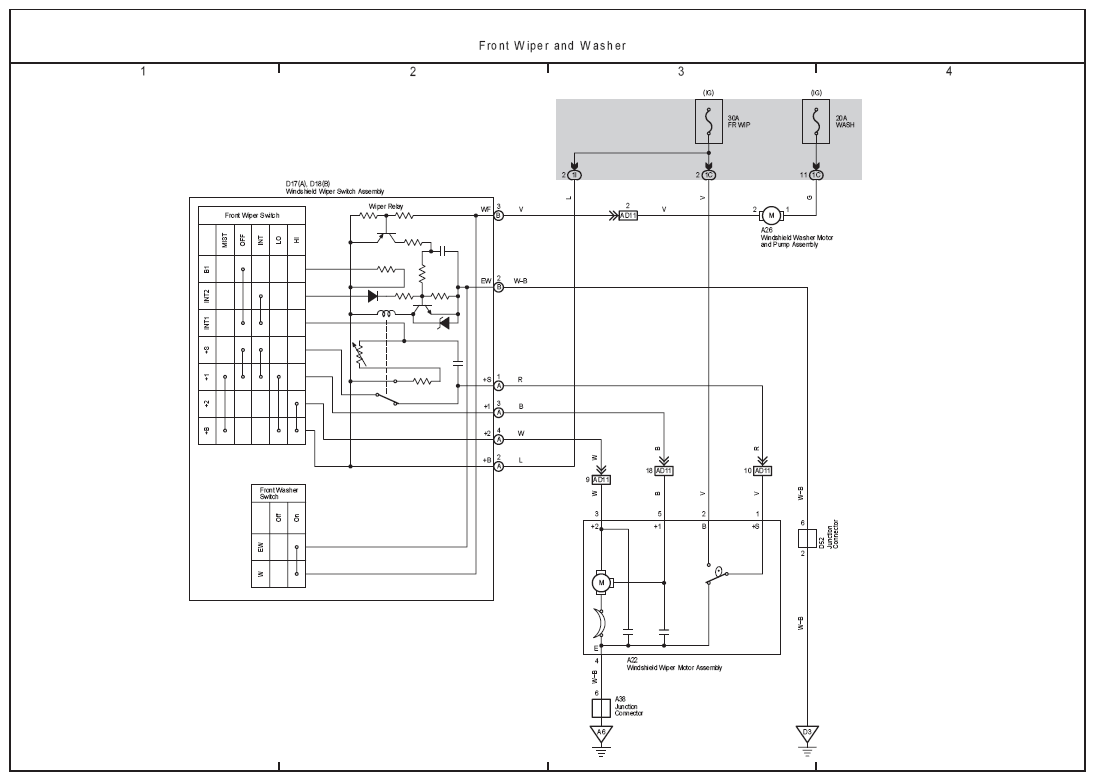

Fig 1: Front Wiper And Washer Electrical Wiring Diagram
G08849834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
