Front Window Deicer, Horn, Shift Lock

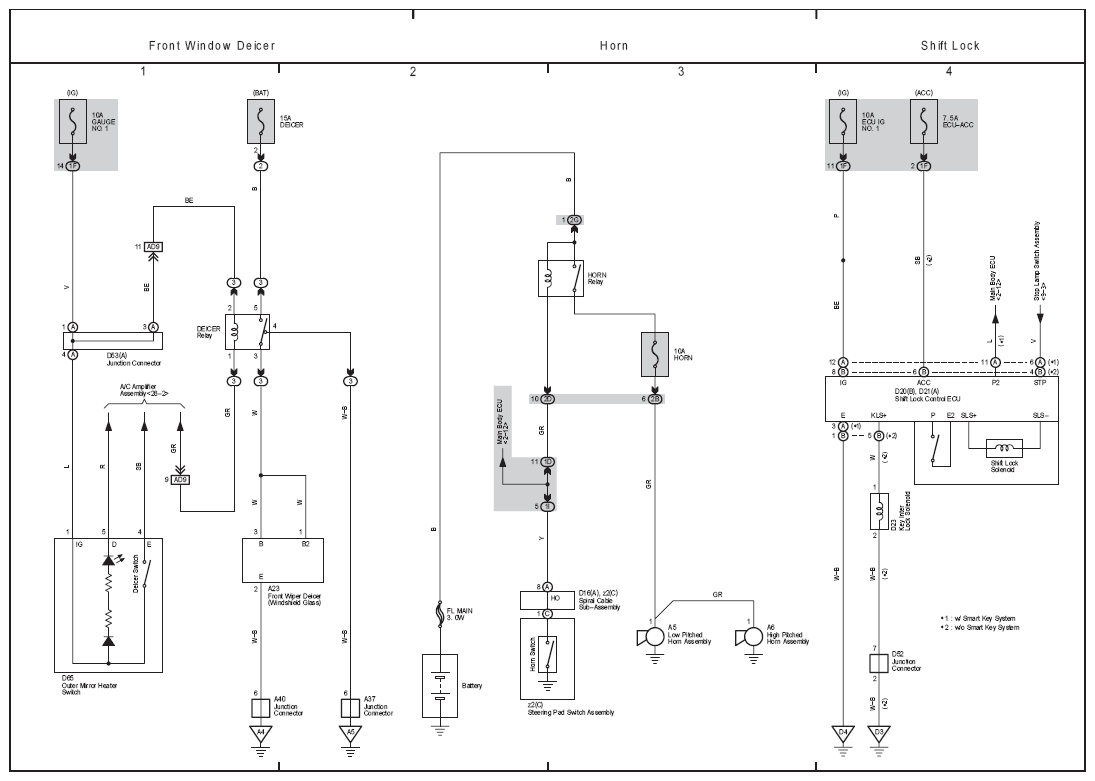

Fig 1: Front Window Deicer, Horn And Shift Lock Electrical Wiring Diagram

G08849848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
