DLC3, Engine Immobilizer System (w/o Smart Key System)

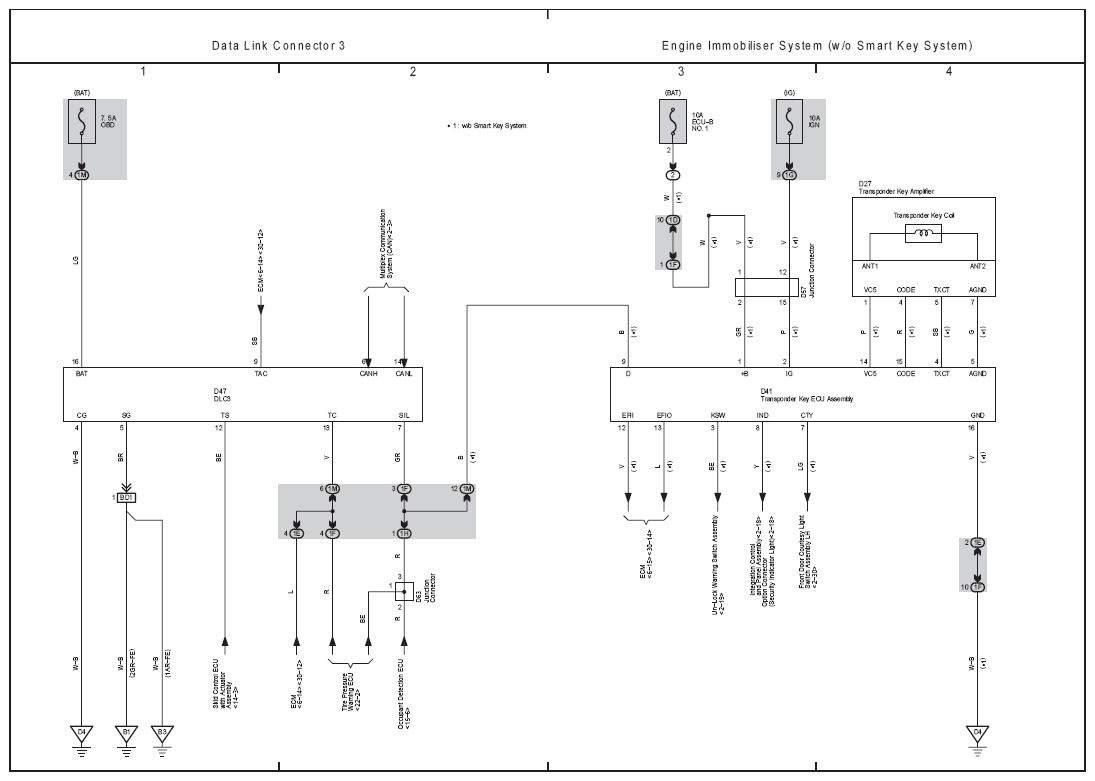

Fig 1: DLC3 And Engine Immobilizer System (w/o Smart Key System) Electrical Wiring Diagram

G08849831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
