Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control, (2GR-FE)

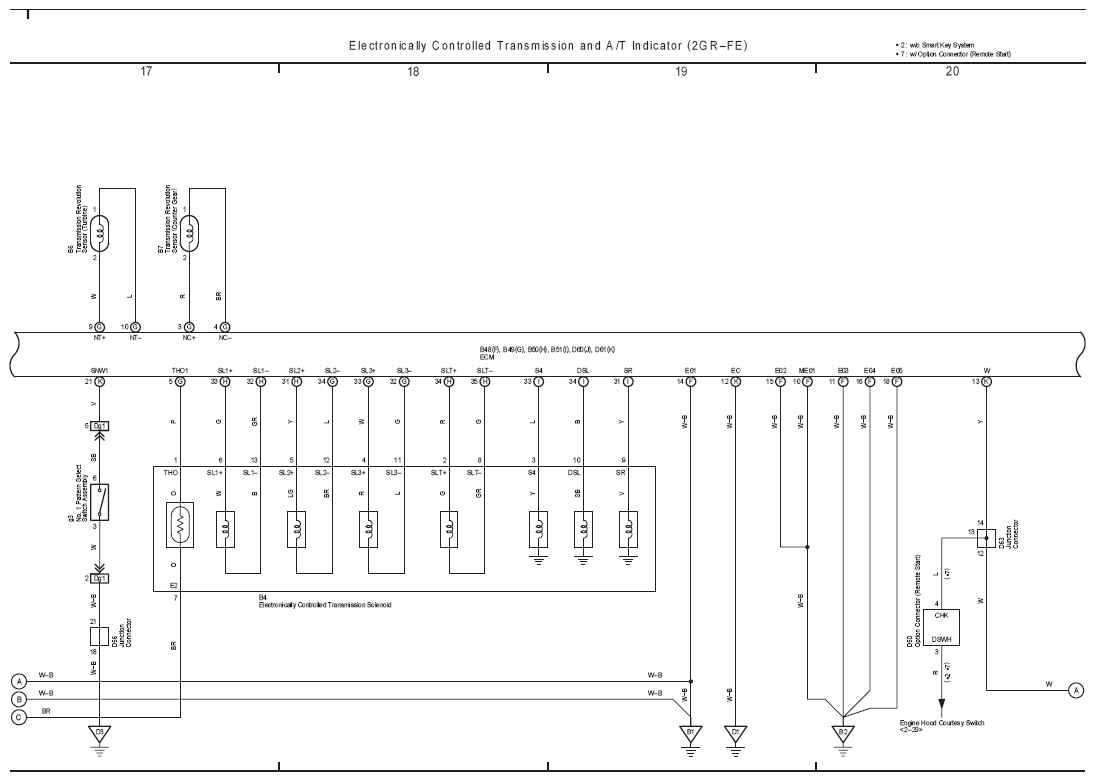

Fig 1: Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control Electrical Wiring Diagram (2GR-FE; 1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

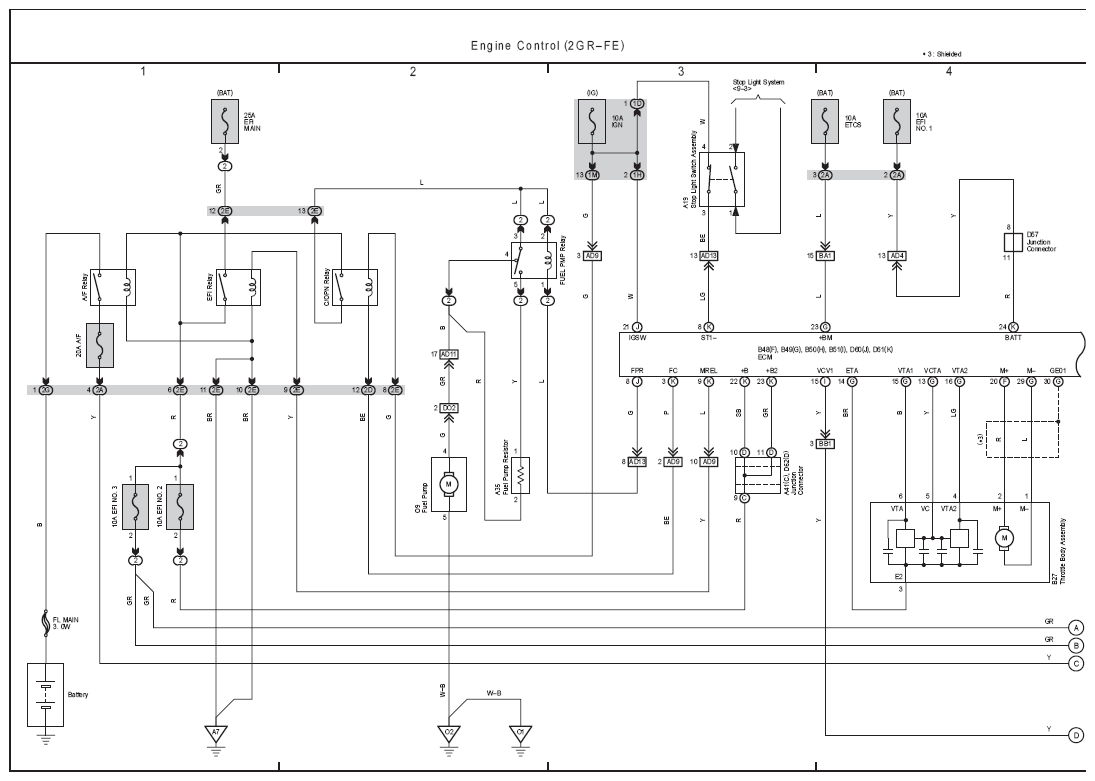

Fig 2: Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control Electrical Wiring Diagram (2GR-FE; 2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

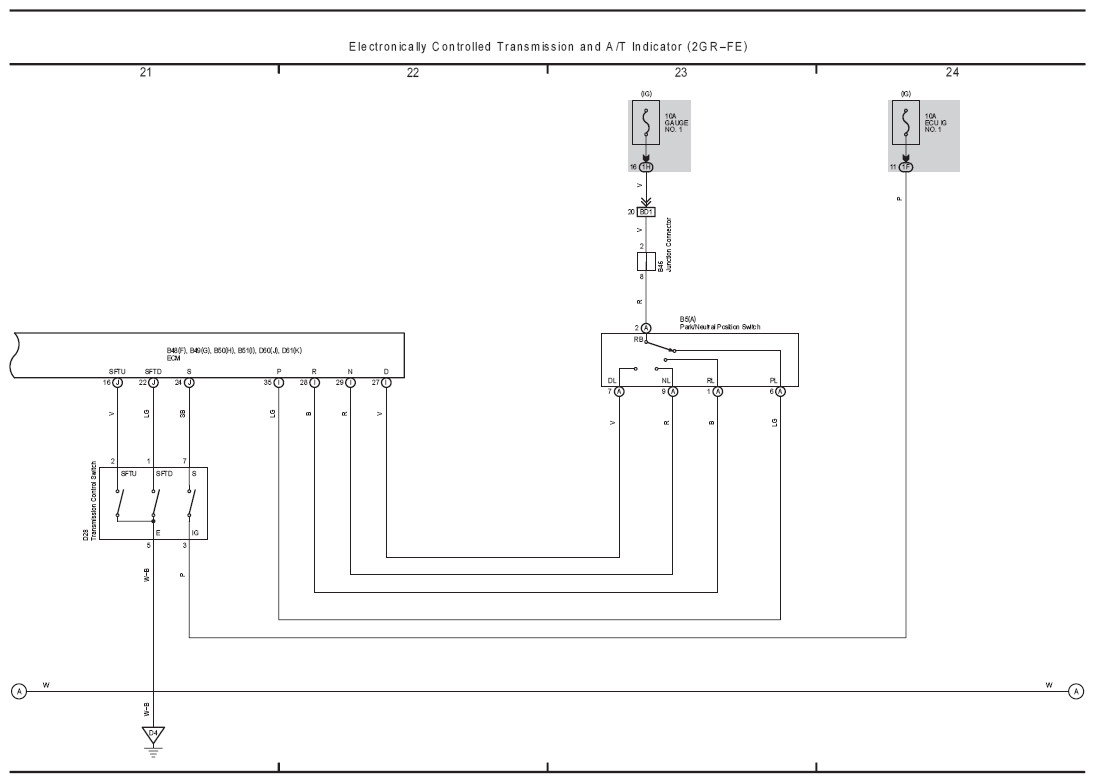

Fig 3: Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control Electrical Wiring Diagram (2GR-FE; 3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

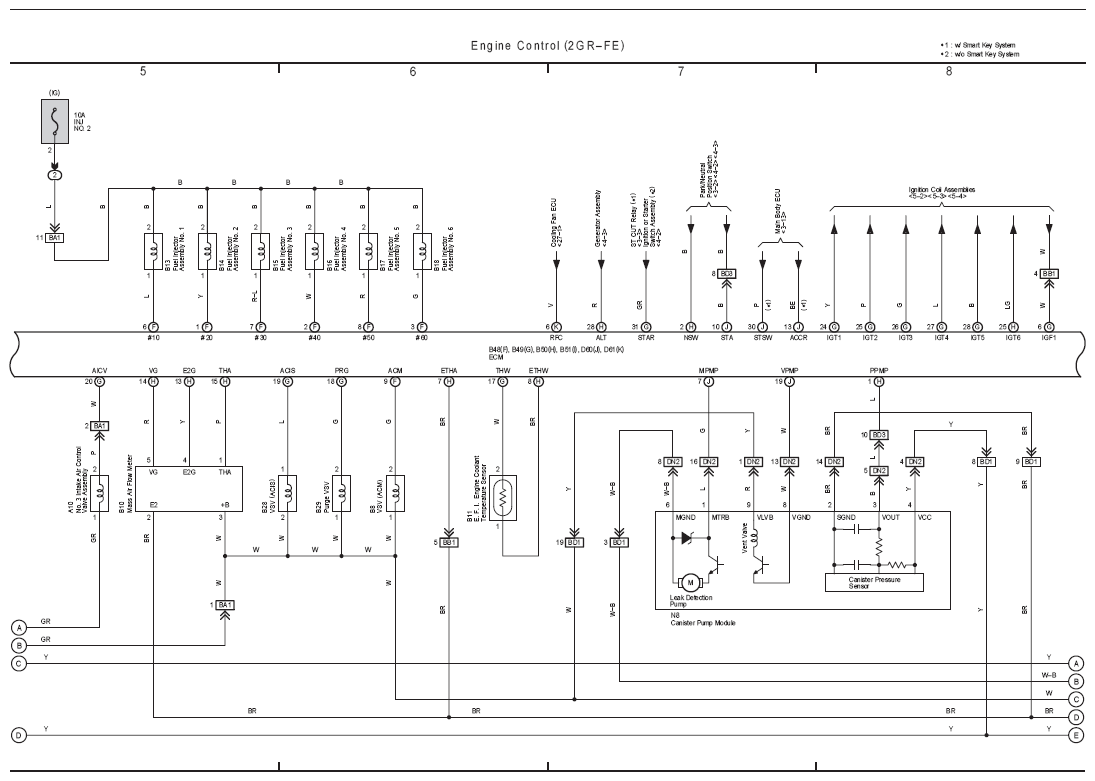

Fig 4: Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control Electrical Wiring Diagram (2GR-FE; 4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

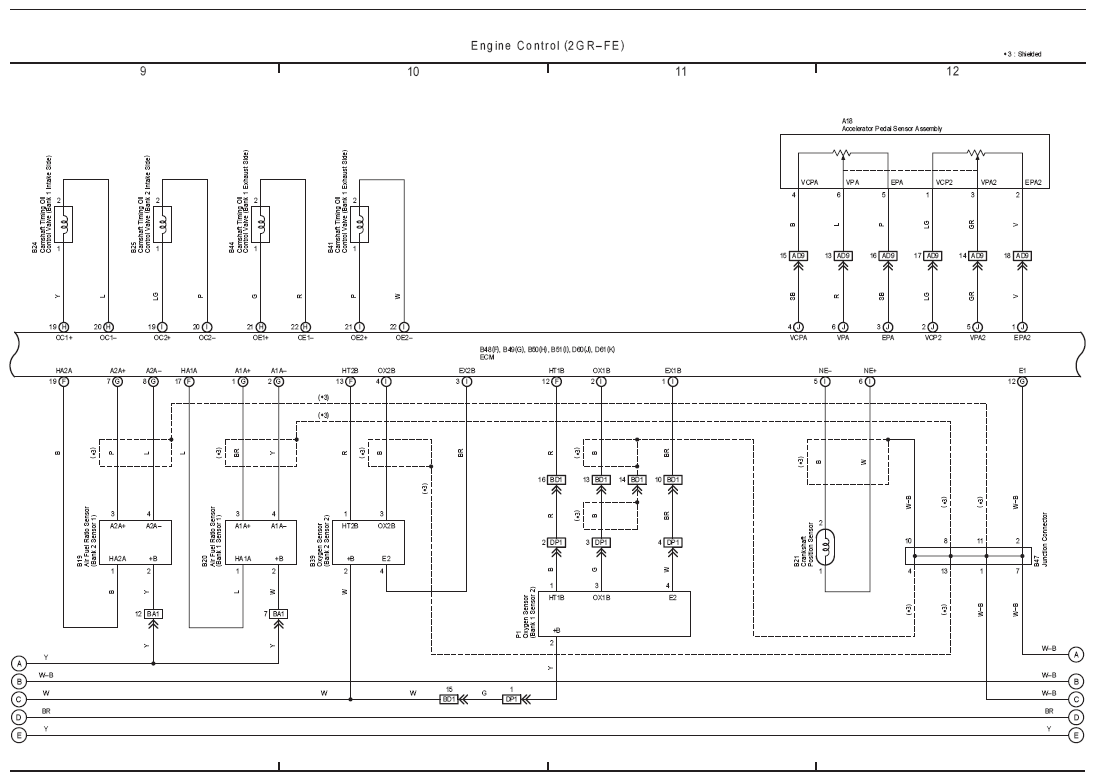

Fig 5: Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control Electrical Wiring Diagram (2GR-FE; 5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

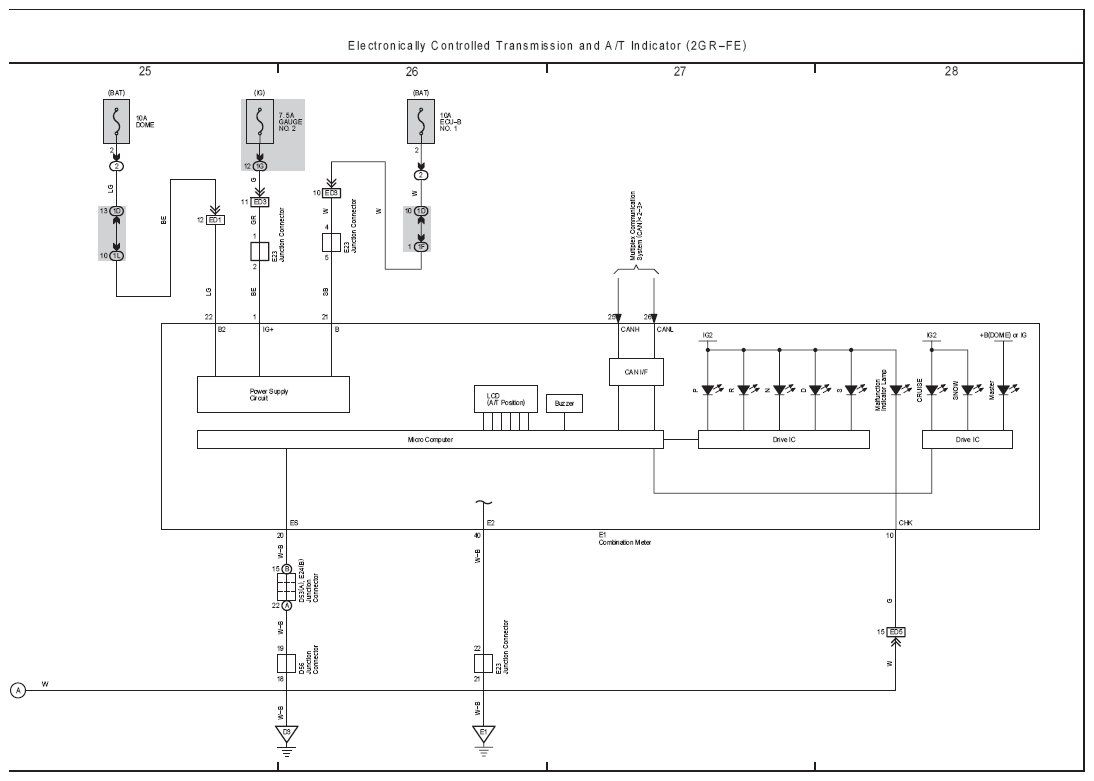

Fig 6: Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control Electrical Wiring Diagram (2GR-FE; 6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

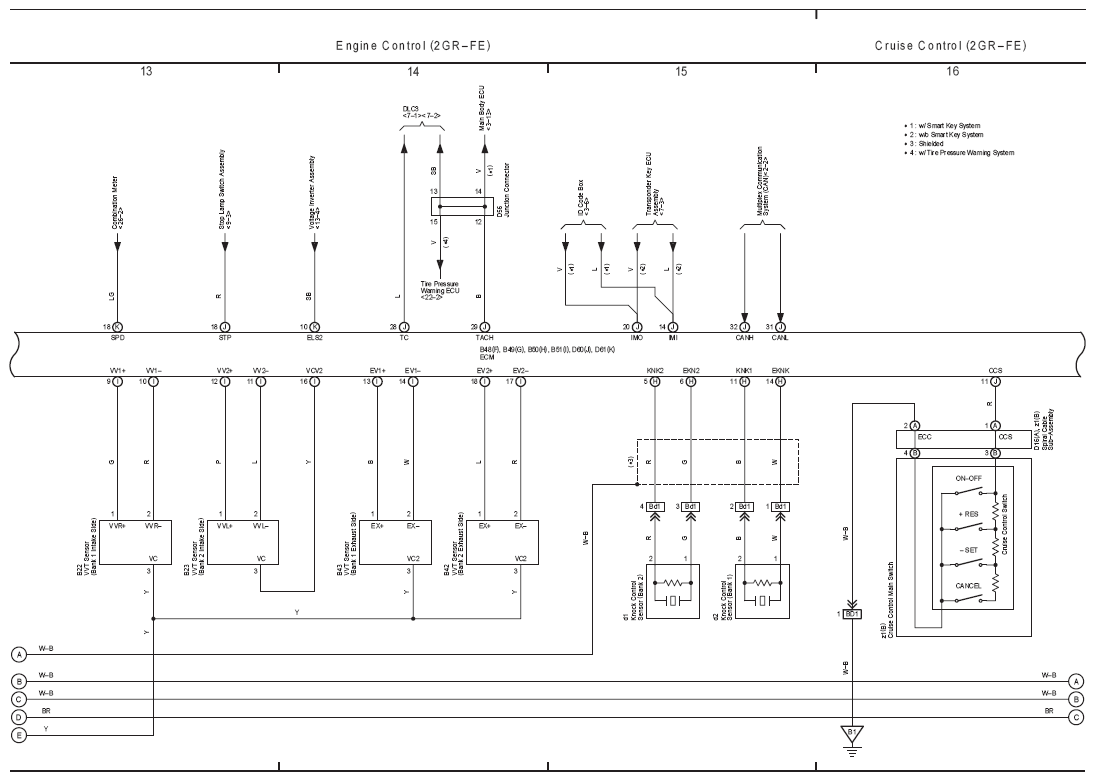

Fig 7: Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control Electrical Wiring Diagram (2GR-FE; 7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
