Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control, (1AR-FE)

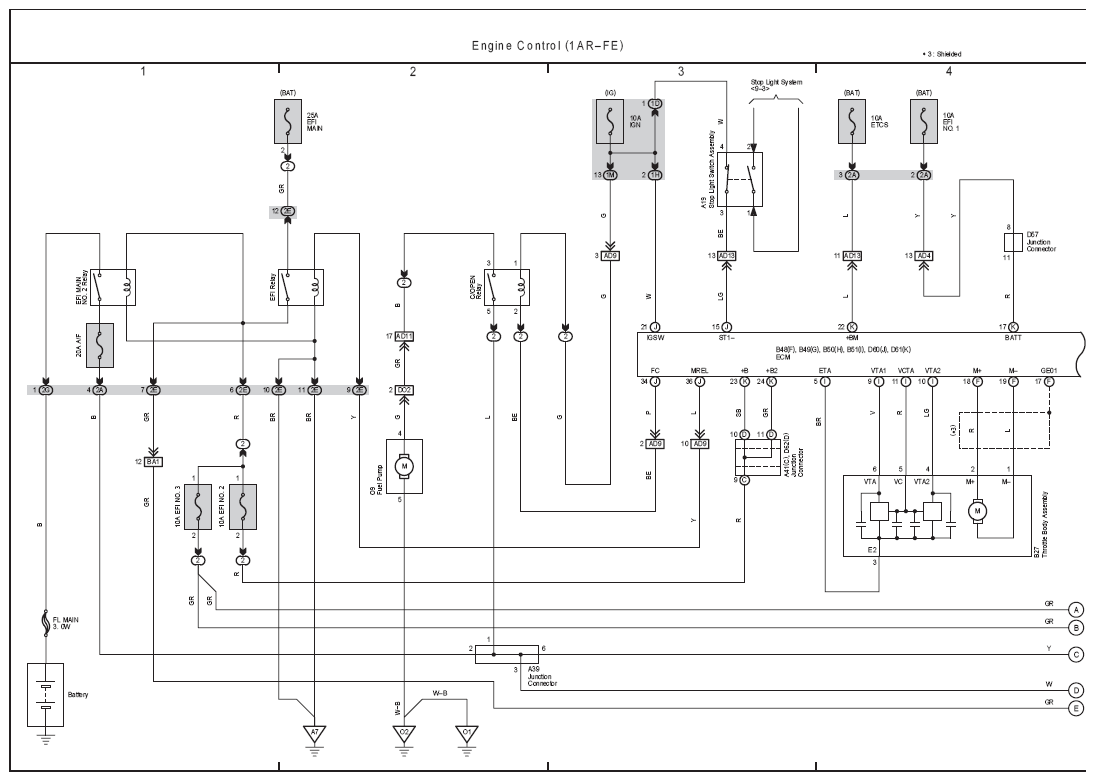

Fig 1: Engine Control Electrical Wiring Diagram (1AR-FE; 1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Control Electrical Wiring Diagram (1AR-FE; 2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Control Electrical Wiring Diagram (1AR-FE; 3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

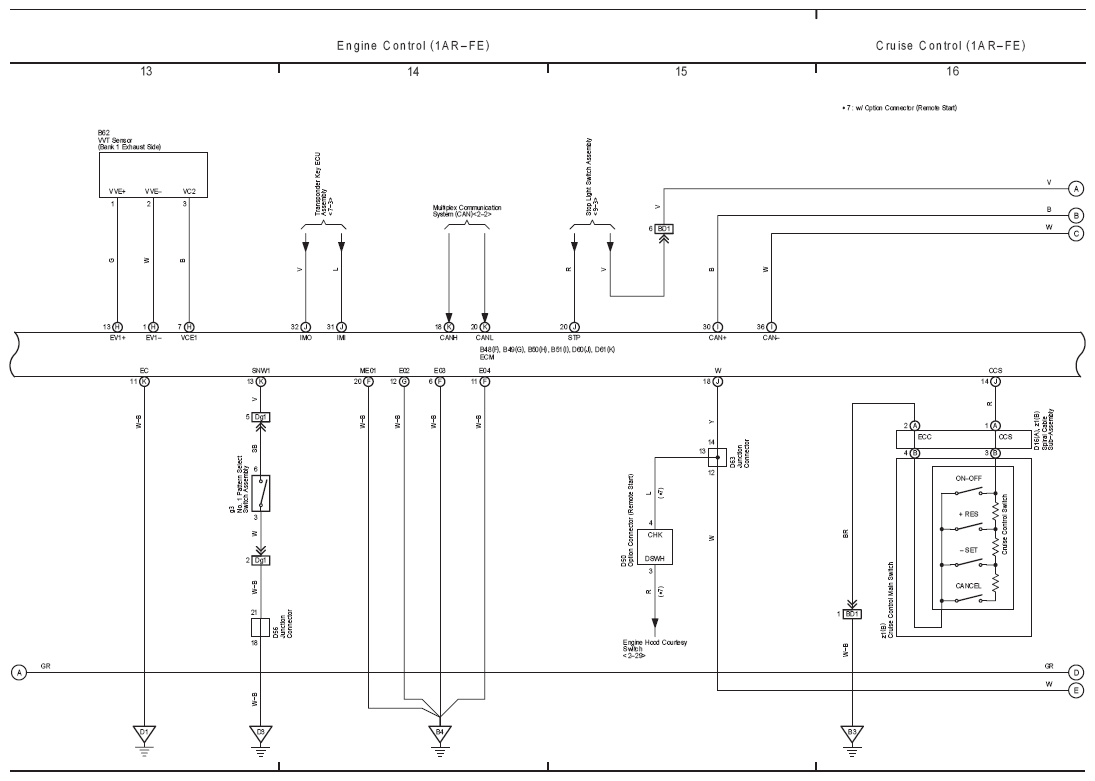

Fig 4: Engine Control Electrical Wiring Diagram (1AR-FE; 4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

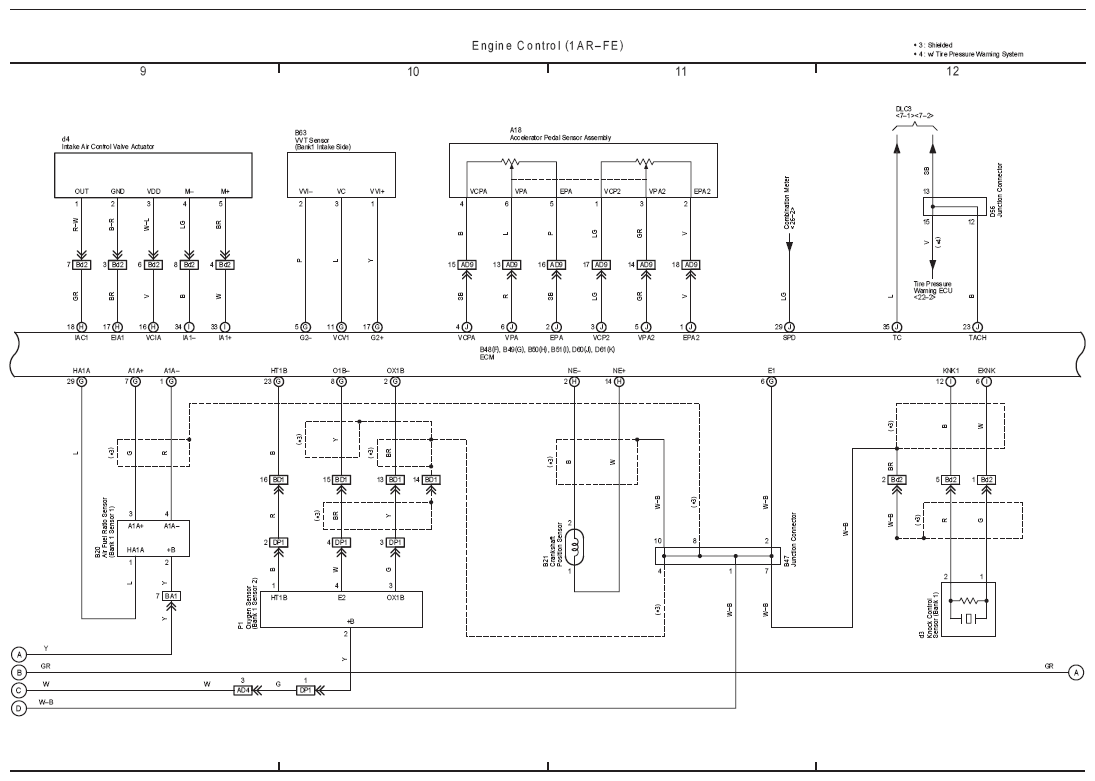

Fig 5: Engine Control Electrical Wiring Diagram (1AR-FE; 5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Control Electrical Wiring Diagram (1AR-FE; 6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

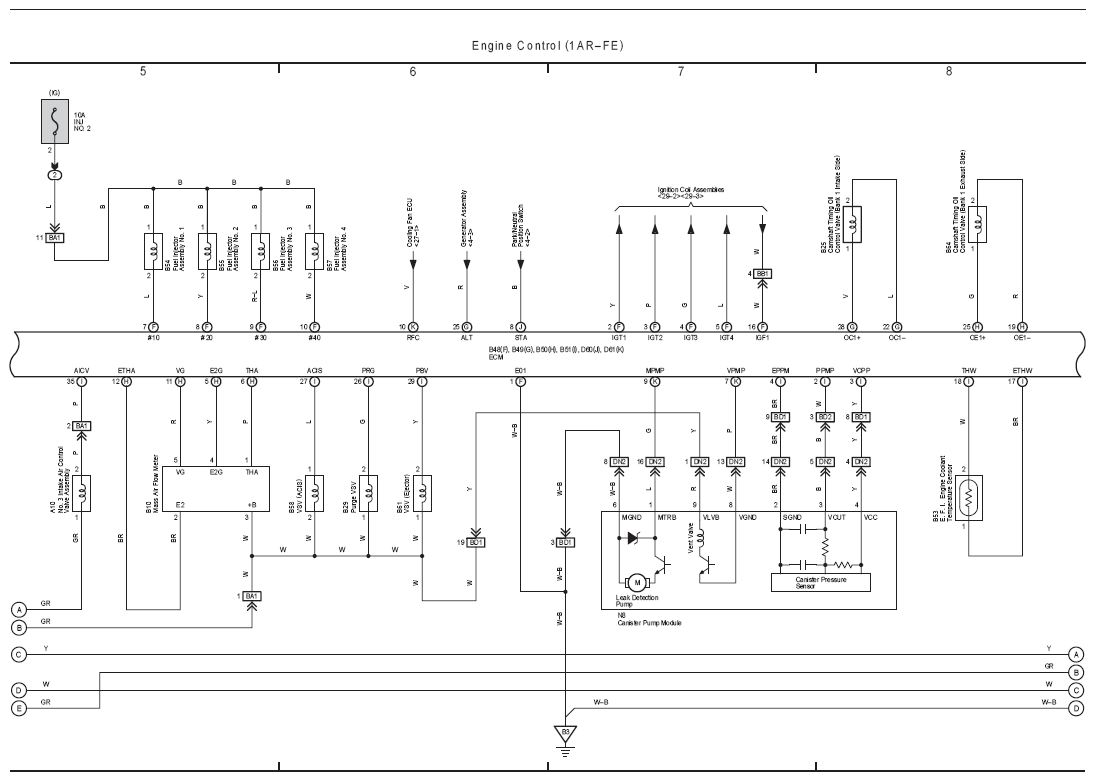

Fig 7: Engine Control Electrical Wiring Diagram (1AR-FE; 7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
