Clock With Multi Display, Multi Display, Parking Assist (Rear View Monitor W/O Navigation)

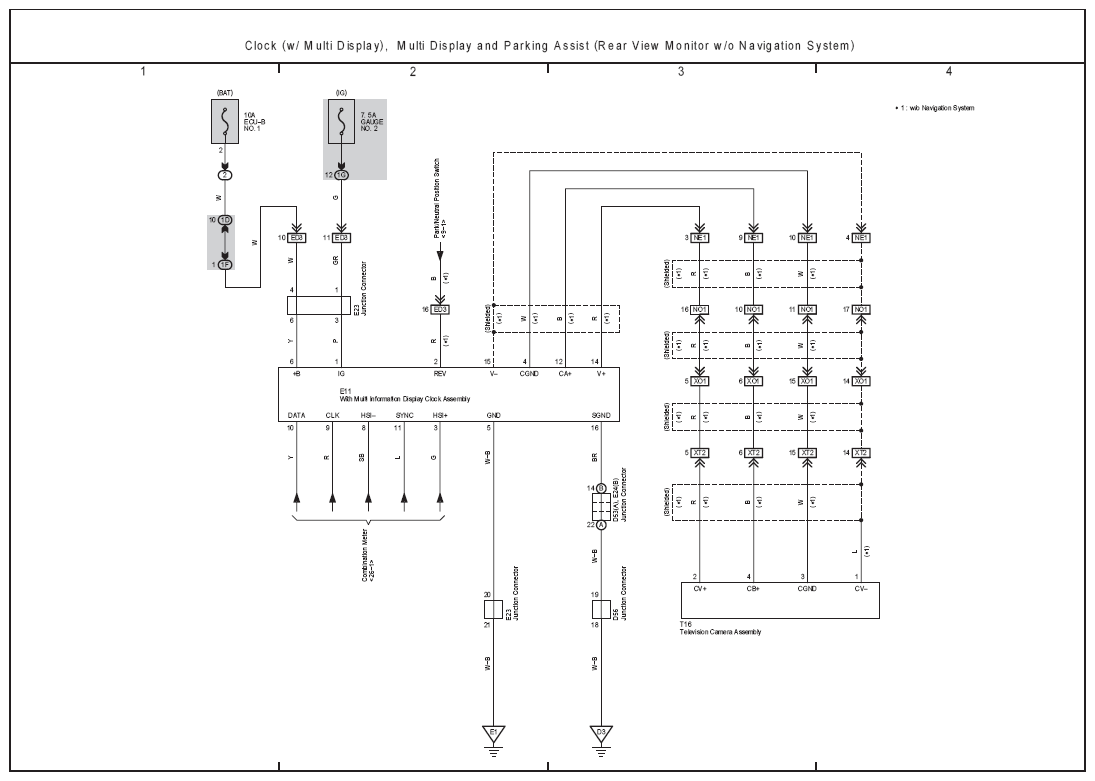

Fig 1: Clock With Multi Display, Multi Display And Parking Assist (Rear View Monitor W/O Navigation) System Electrical Wiring Diagram
G08849850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
