Back-Up Light, Stop Light

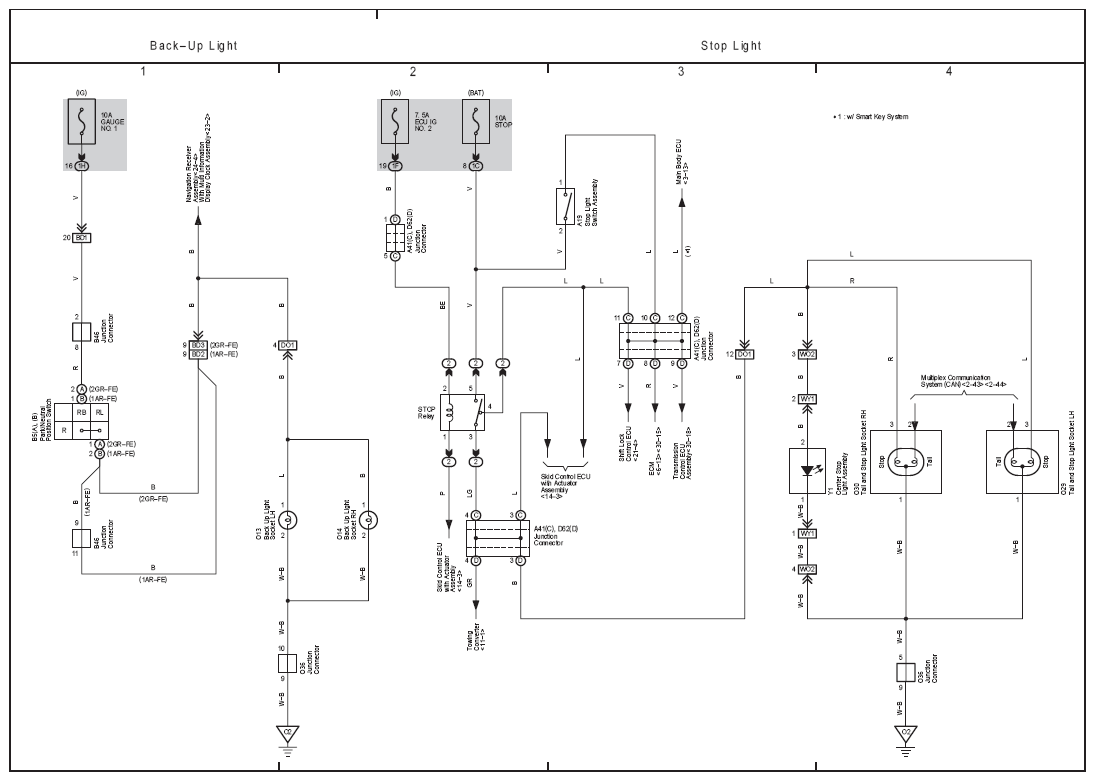

Fig 1: Back-Up Light And Stop Light Electrical Wiring Diagram

G08849833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
