Automatic Glare-Resistant EC Mirror with Compass, Clock (w/o Multi Display), Sliding Roof

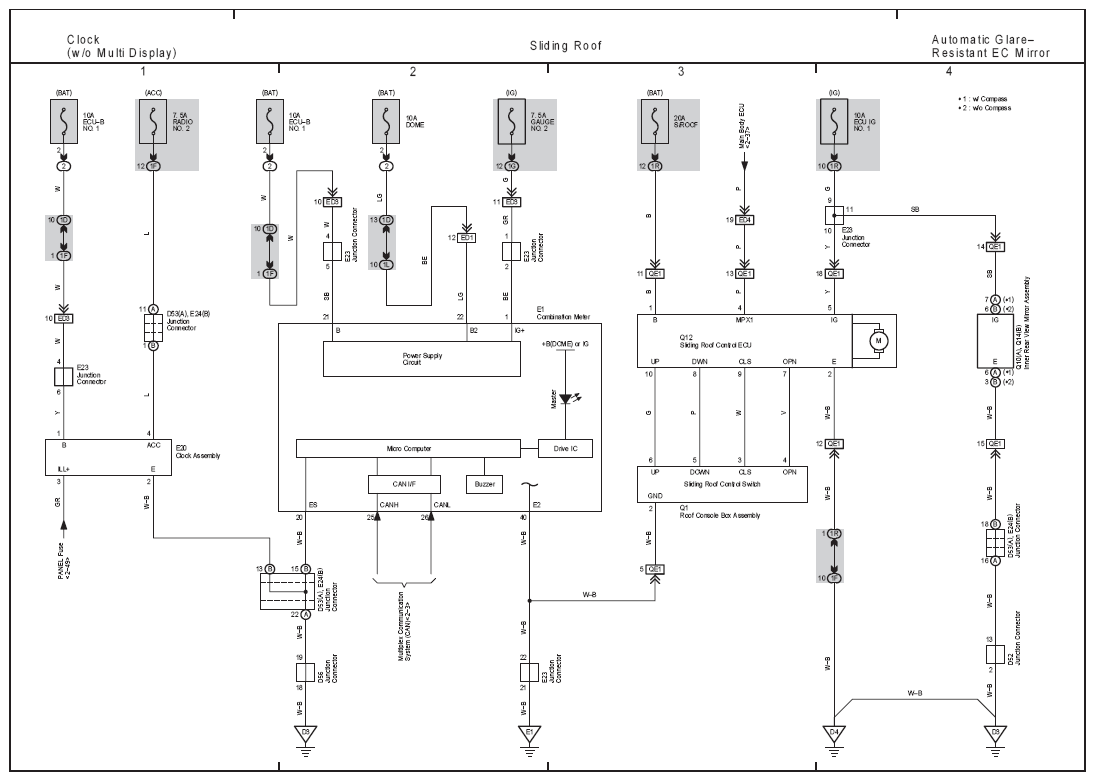

Fig 1: Automatic Glare-Resistant EC Mirror with Compass, Clock (w/o Multi Display) And Sliding Roof Electrical Wiring Diagram
G08849836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
