Audio With JBL, Navigation And Parking Assist (Rear View Monitor With Navigation)

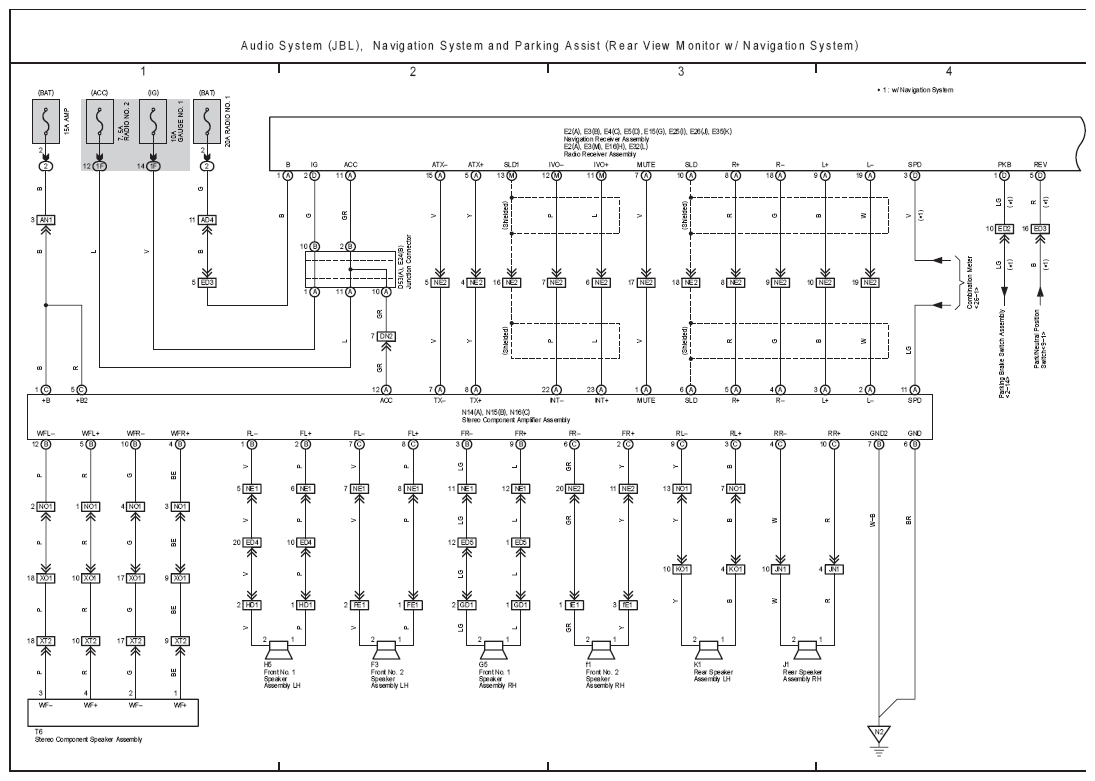

Fig 1: Audio With JBL, Navigation And Parking Assist (Rear View Monitor With Navigation) System Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

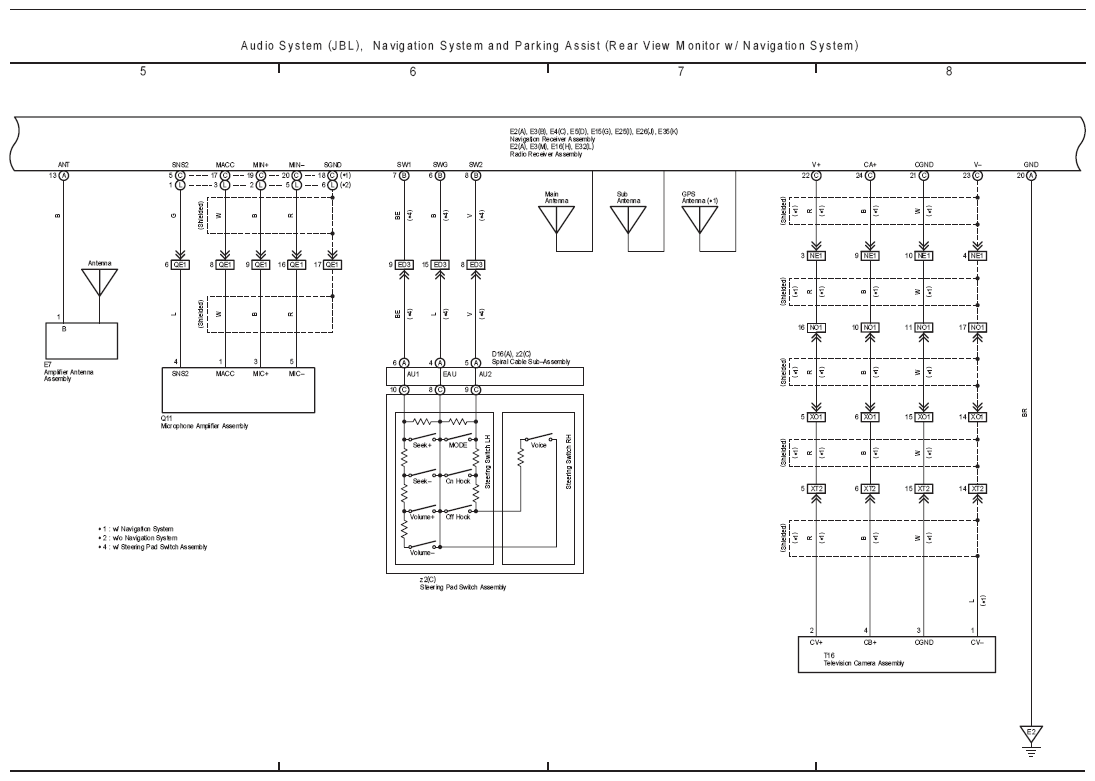

Fig 2: Audio With JBL, Navigation And Parking Assist (Rear View Monitor With Navigation) System Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

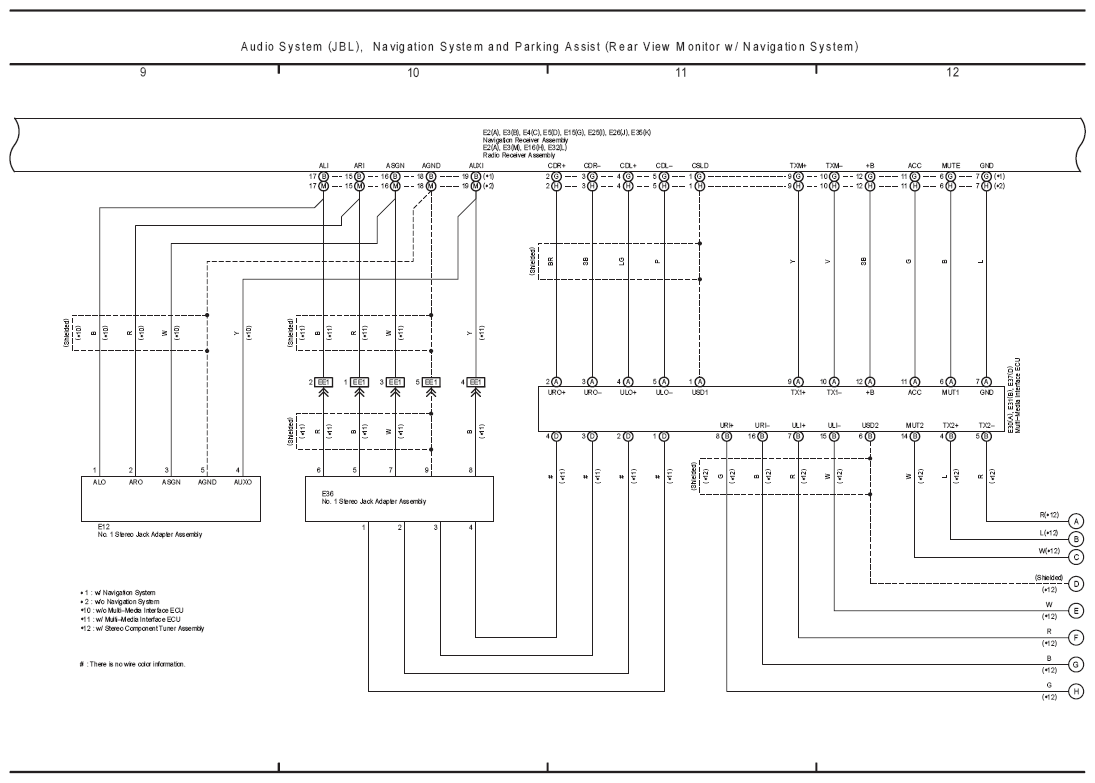

Fig 3: Audio With JBL, Navigation And Parking Assist (Rear View Monitor With Navigation) System Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

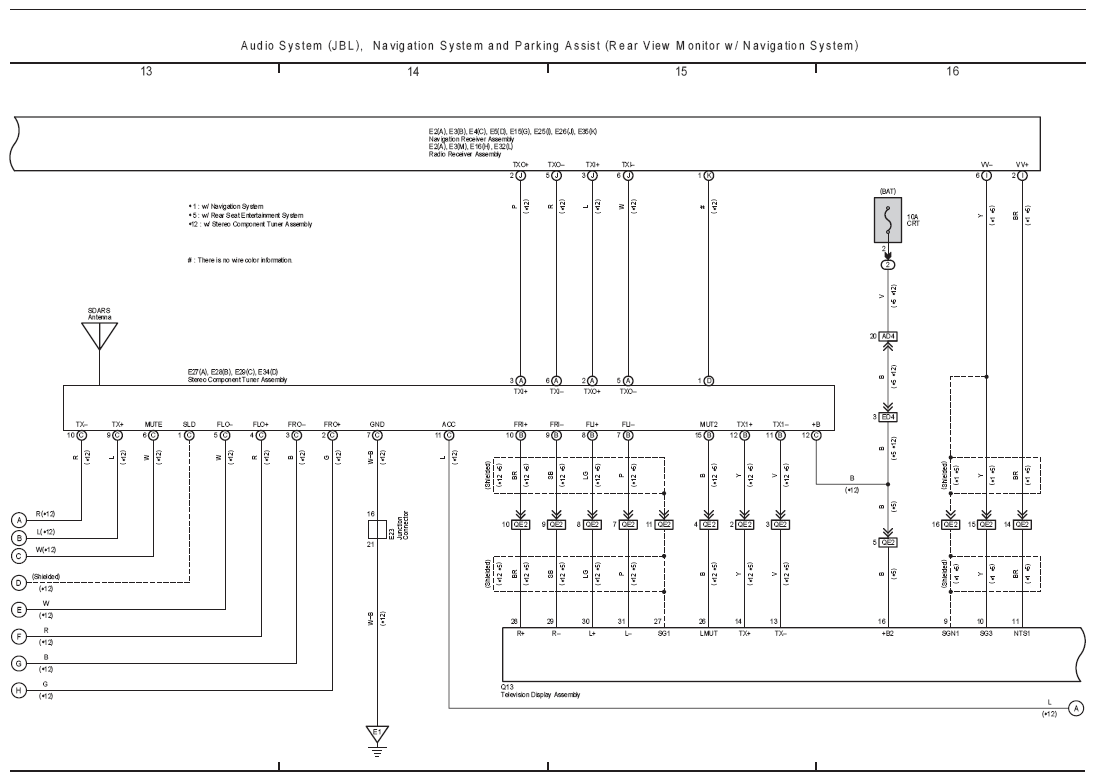

Fig 4: Audio With JBL, Navigation And Parking Assist (Rear View Monitor With Navigation) System Electrical Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

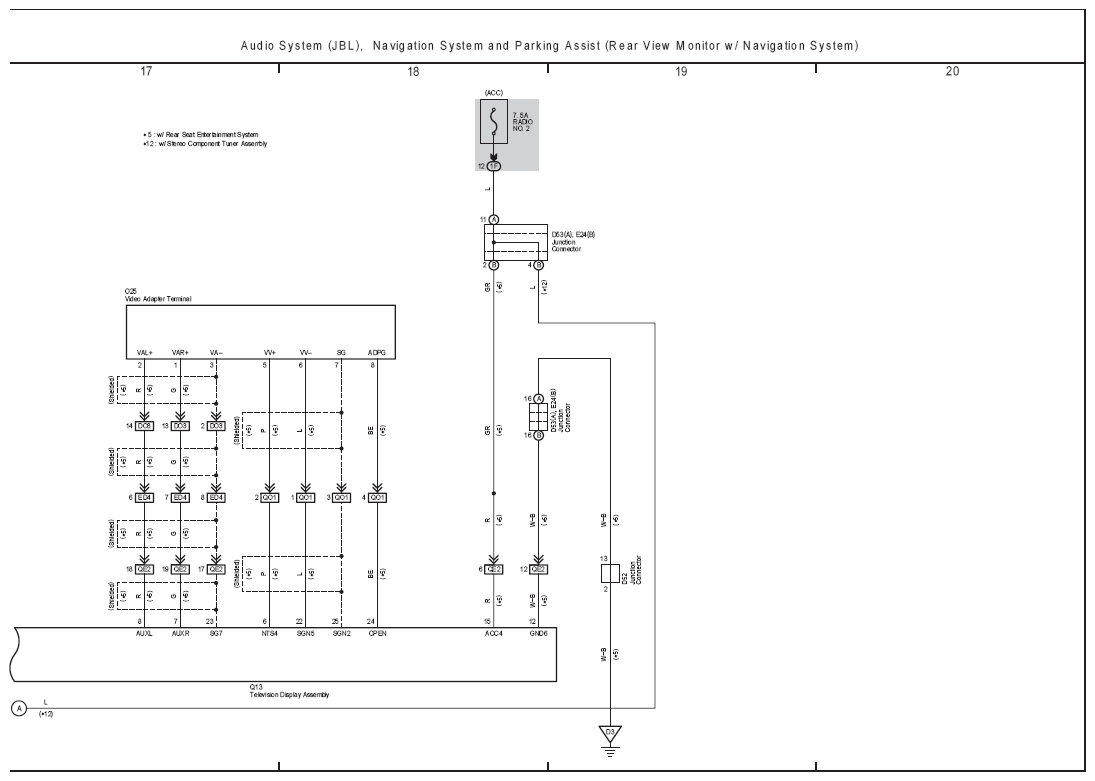

Fig 5: Audio With JBL, Navigation And Parking Assist (Rear View Monitor With Navigation) System Electrical Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
