Air Conditioning

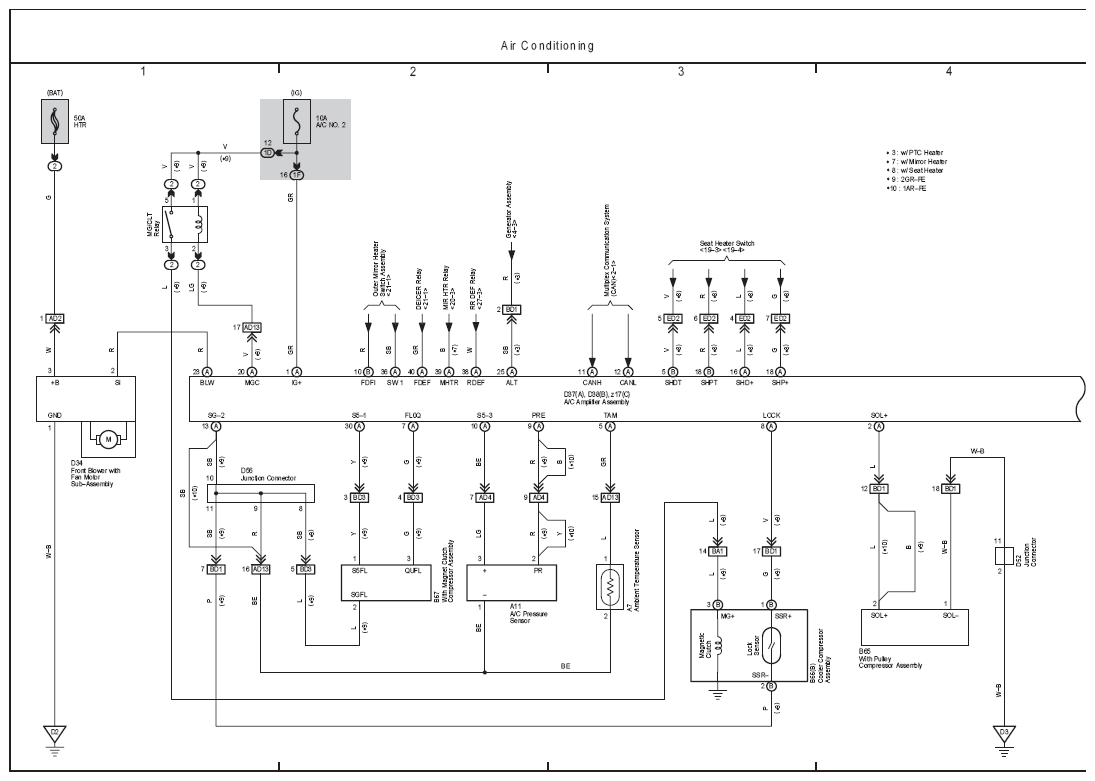

Fig 1: Air Conditioning Electrical Wiring Diagram (1 Of 3)
G08849861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

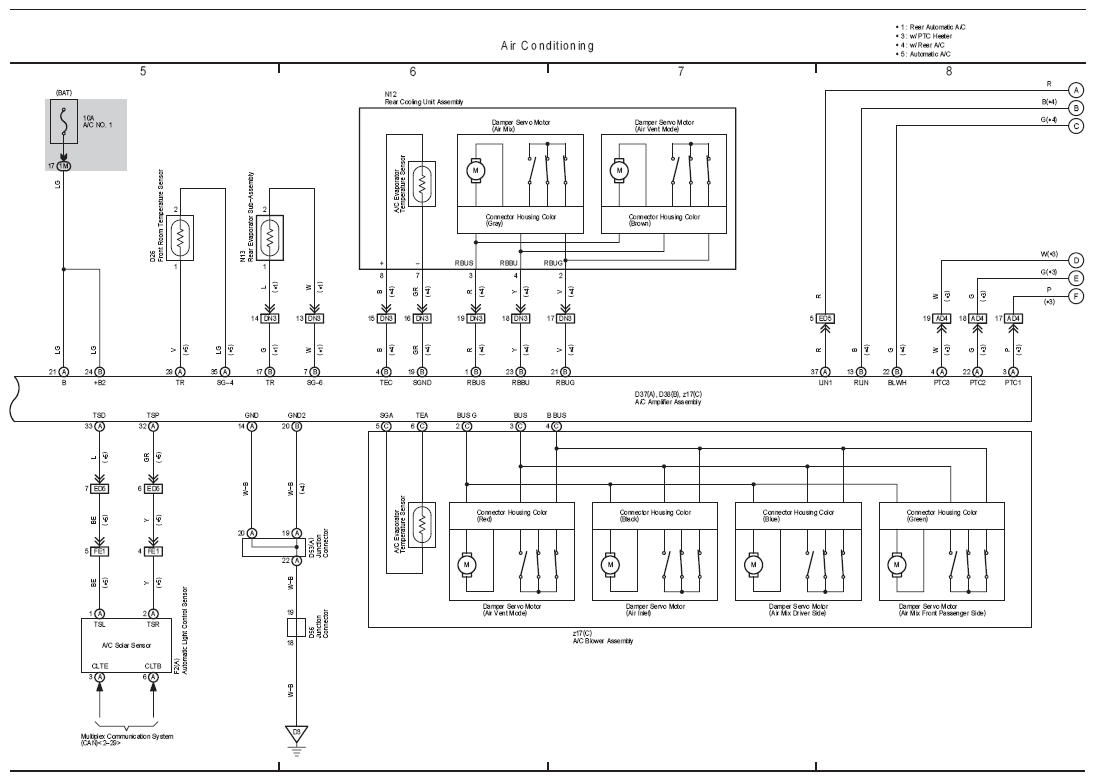

Fig 2: Air Conditioning Electrical Wiring Diagram (2 Of 3)
G08849862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

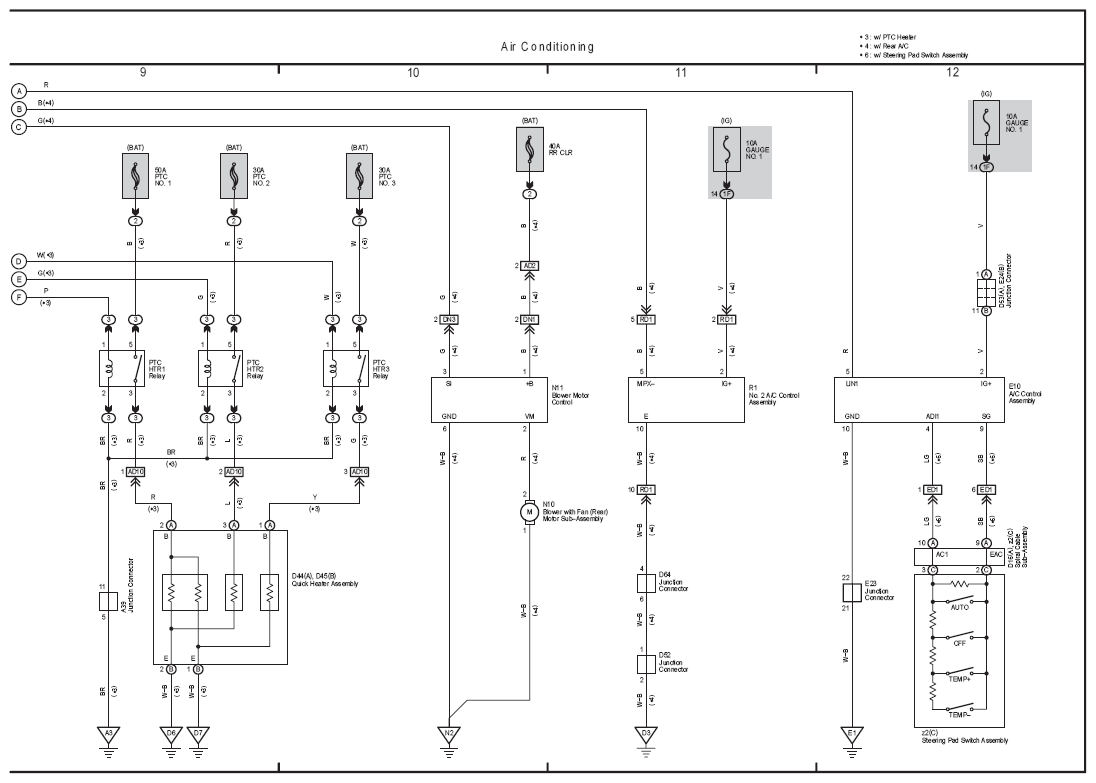

Fig 3: Air Conditioning Electrical Wiring Diagram (3 Of 3)
G08849863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
