Rear Drive Shaft Assembly: Components: Illustration

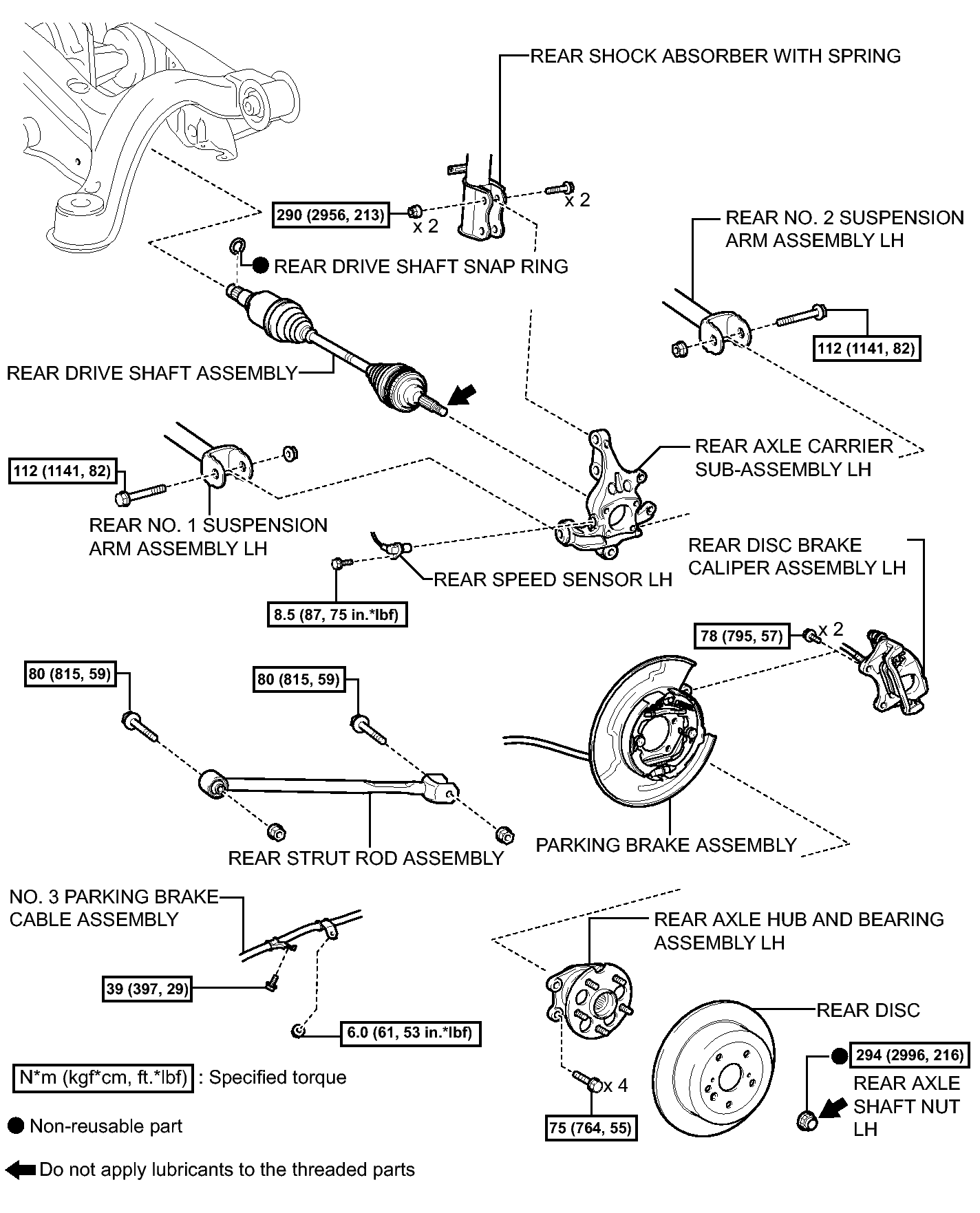

Fig 1: Identifying Rear Drive Shaft Assembly Replacement Components With Torque Specifications (1 of 2)
GTY296354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

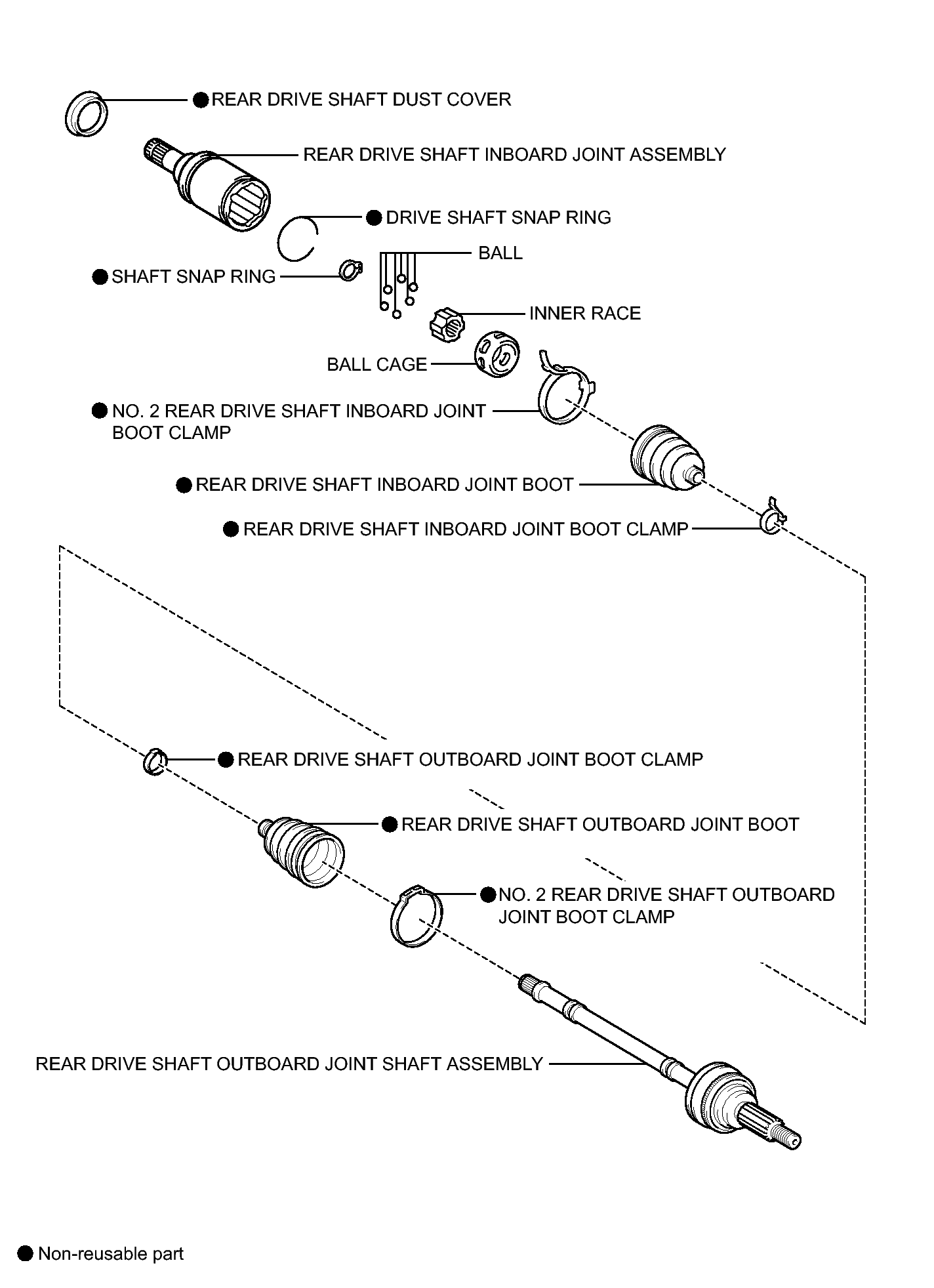

Fig 1: Identifying Rear Drive Shaft Assembly Replacement Components (2 of 2)
GTY174454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
