FRONT DRIVE SHAFT ASSEMBLY (for 2GR-FE): Components: Illustration

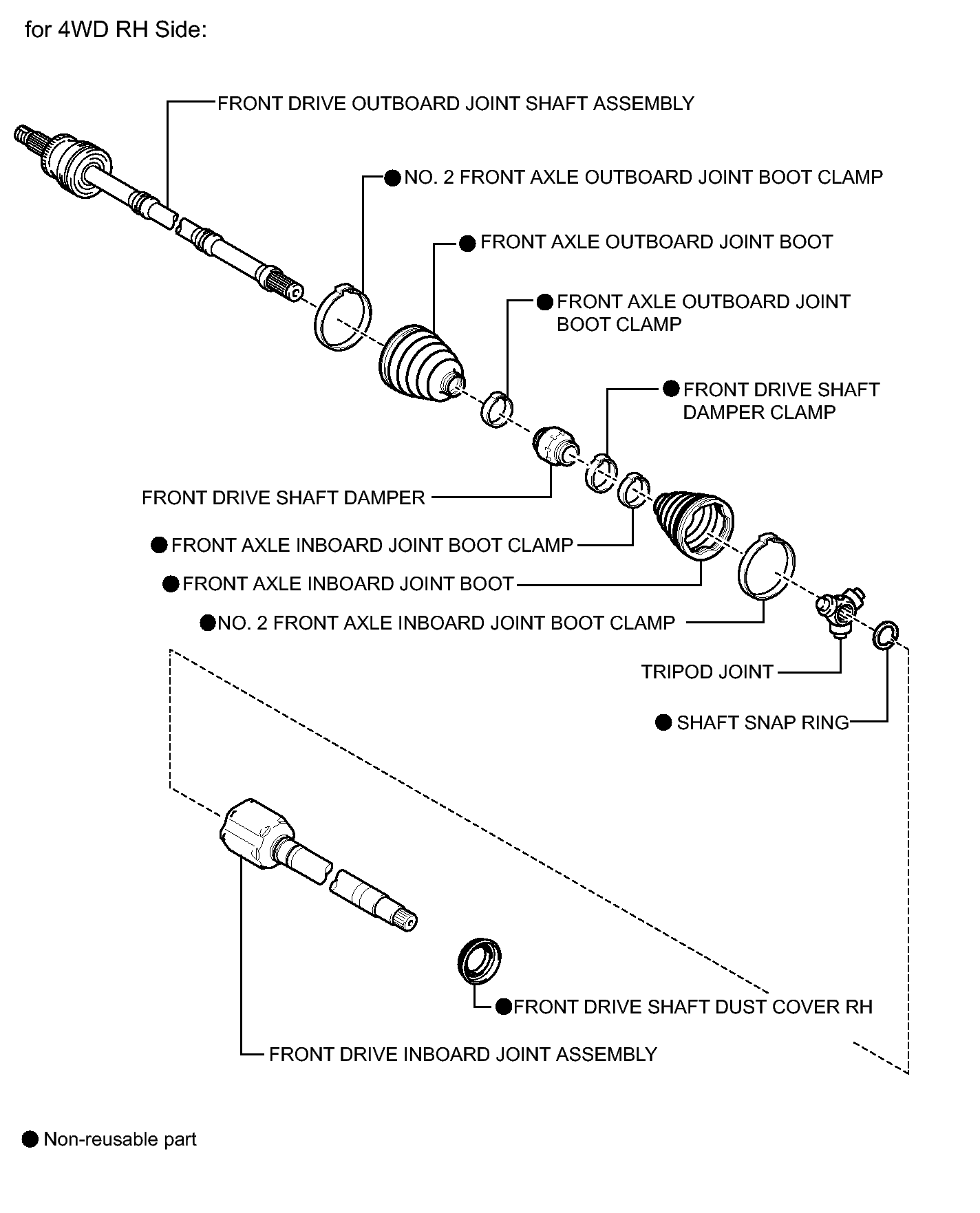

Fig 1: Identifying Front Drive Shaft Assembly For (2GR-FE) Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

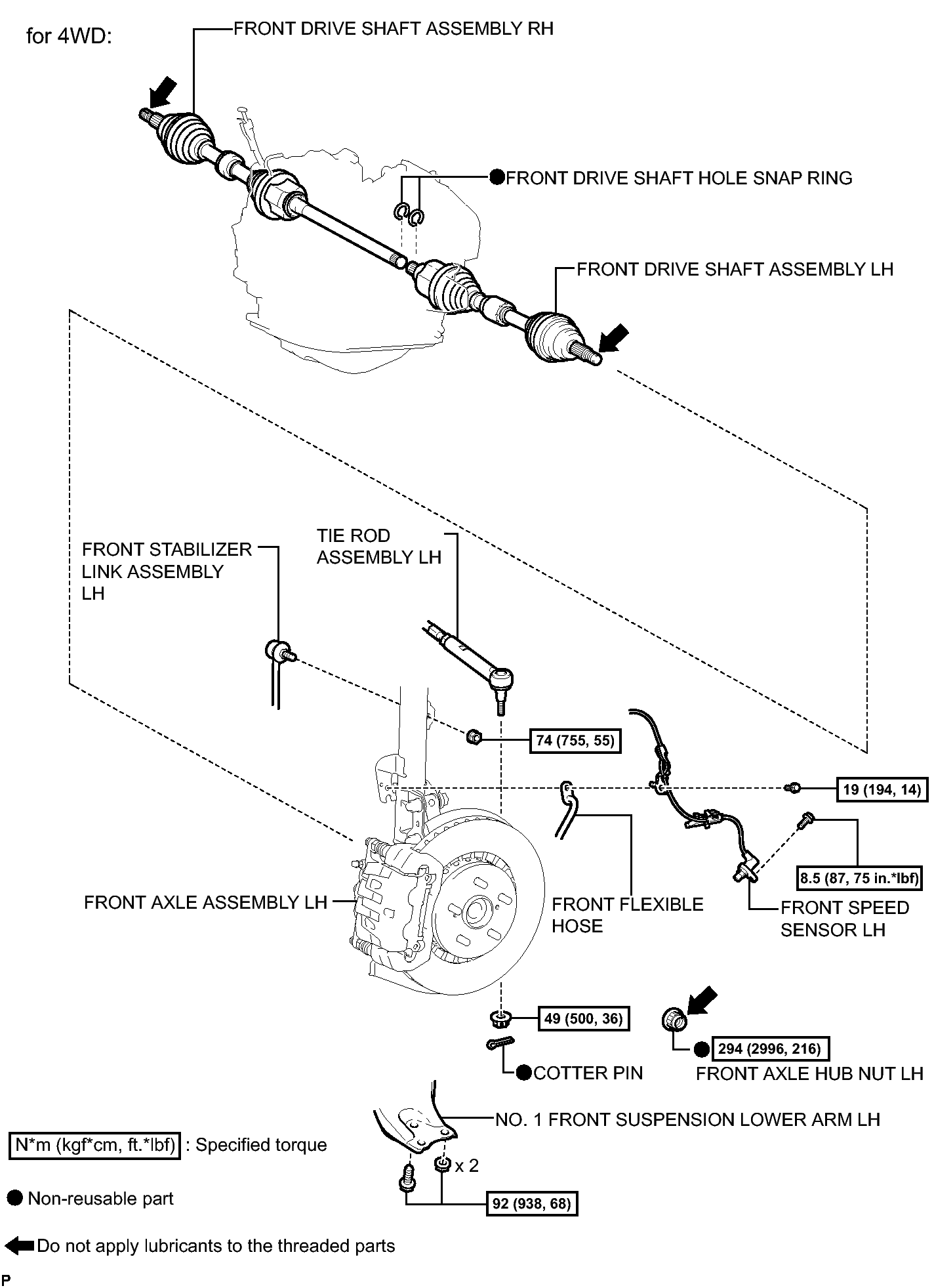

Fig 1: Identifying Front Drive Shaft Assembly For (2GR-FE) Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

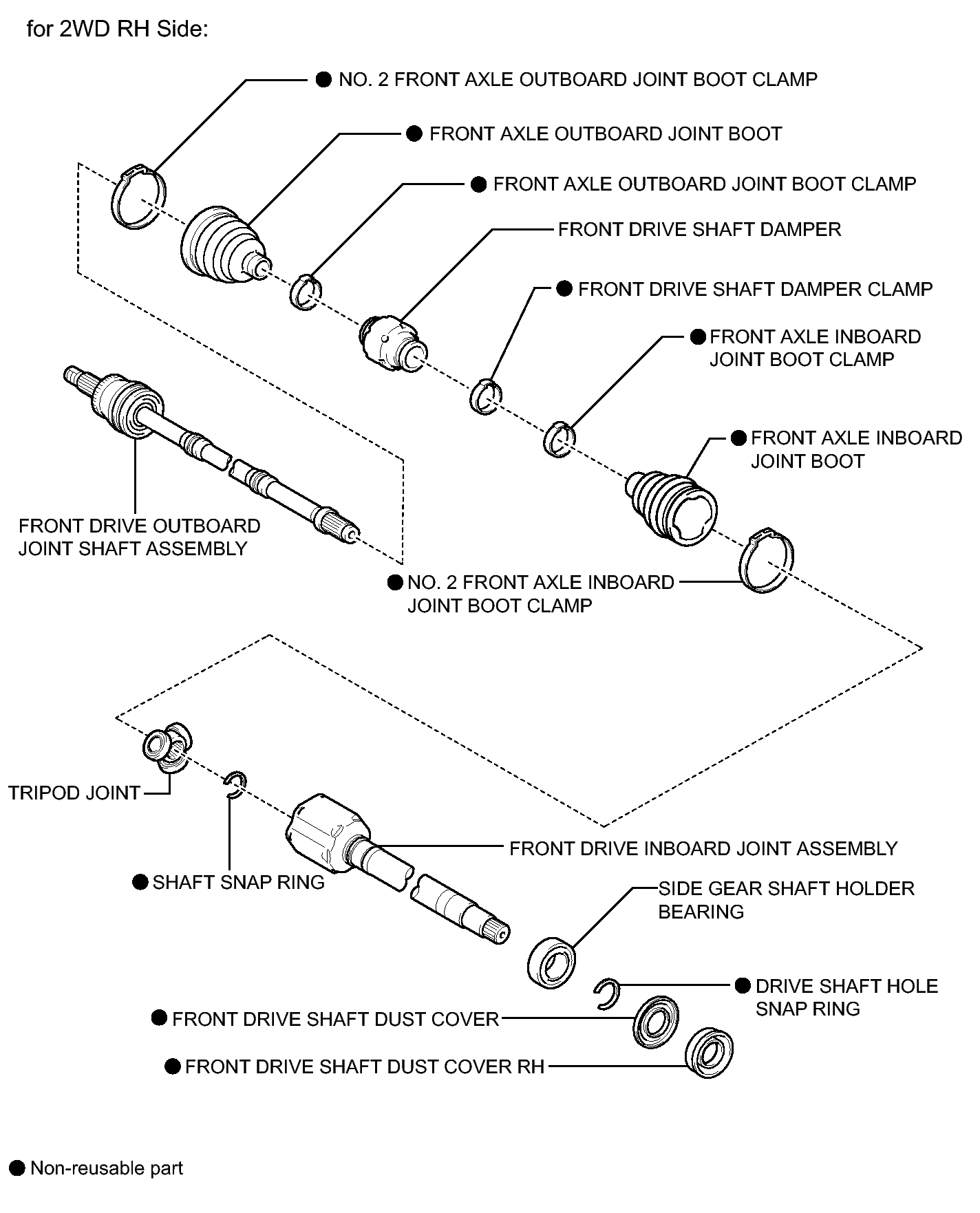

Fig 1: Identifying Front Drive Shaft Assembly For (2GR-FE) Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

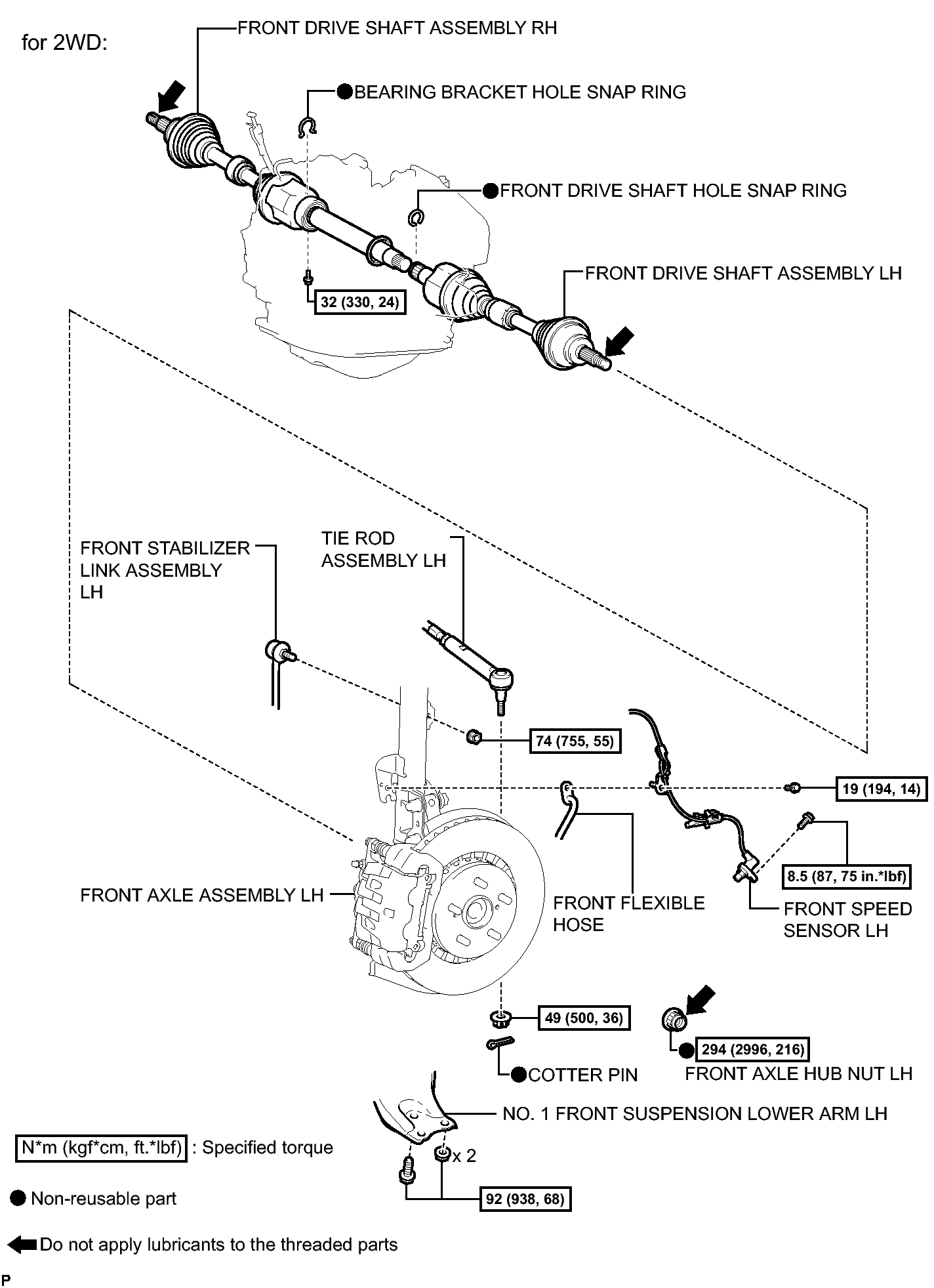

Fig 1: Identifying Front Drive Shaft Assembly For (2GR-FE) Replacement Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Drive Shaft Assembly (for 2GR-FE) Replacement Components (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Drive Shaft Assembly (for 2GR-FE) Replacement Components (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
