FRONT DRIVE SHAFT ASSEMBLY (for 1AR-FE): Components: Illustration

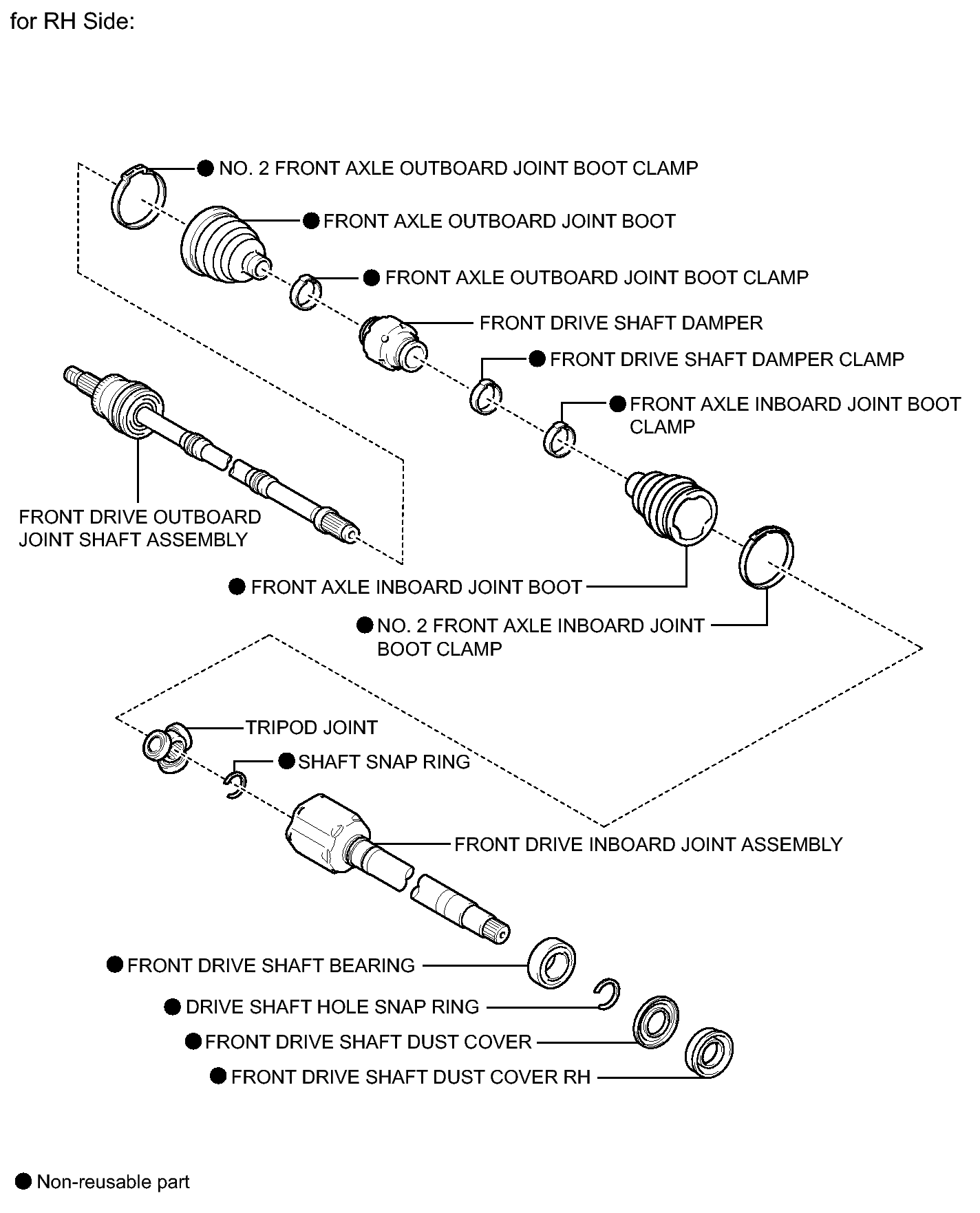

Fig 1: Identifying Front Drive Shaft Assembly (for TMMI Made 1AR-FE) Replacement Components (1 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

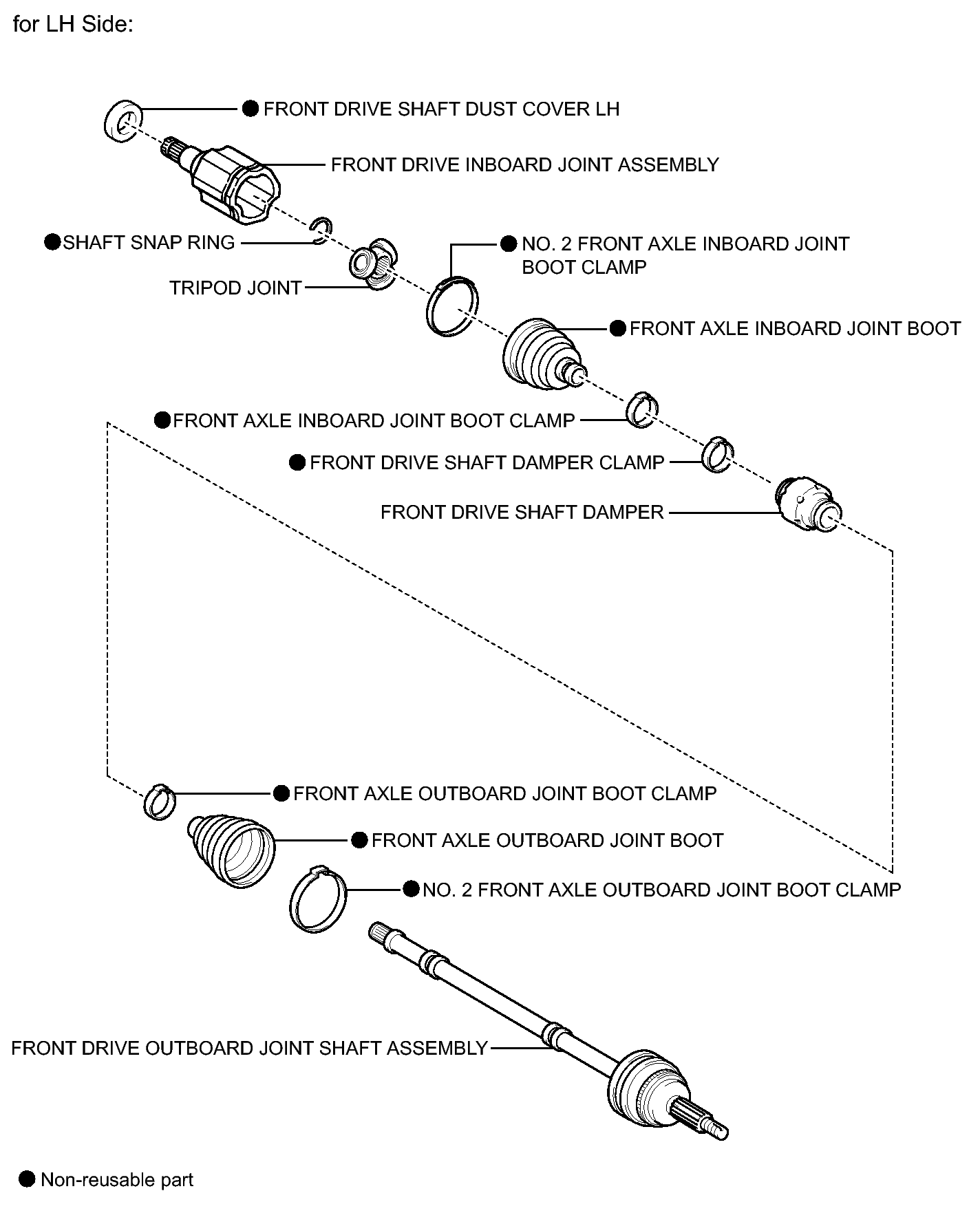

Fig 1: Identifying Front Drive Shaft Assembly (for TMMI Made 1AR-FE) Replacement Components With Torque Specifications (2 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

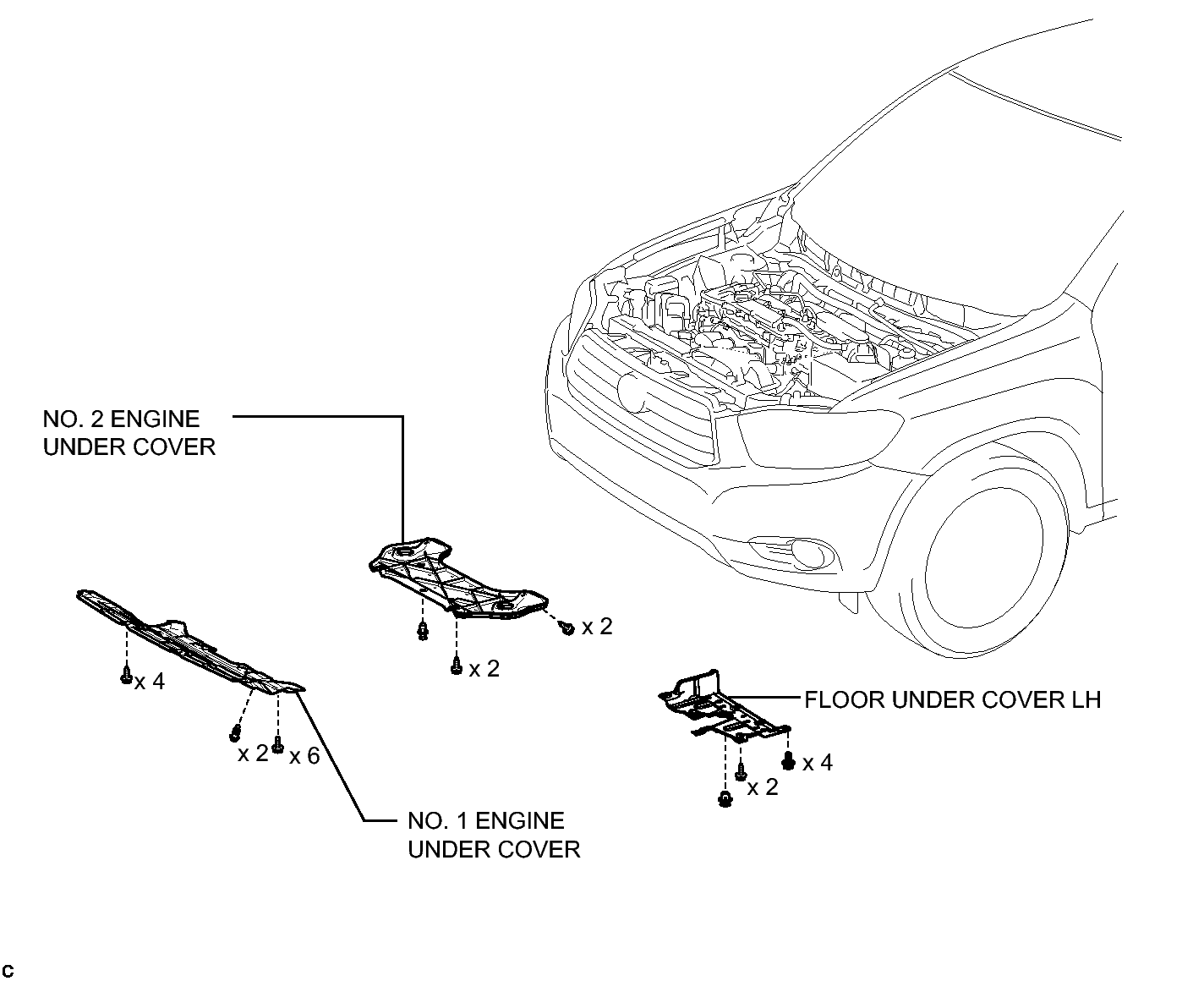

Fig 1: Identifying Front Drive Shaft Assembly (for TMMI Made 1AR-FE) Replacement Components (3 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

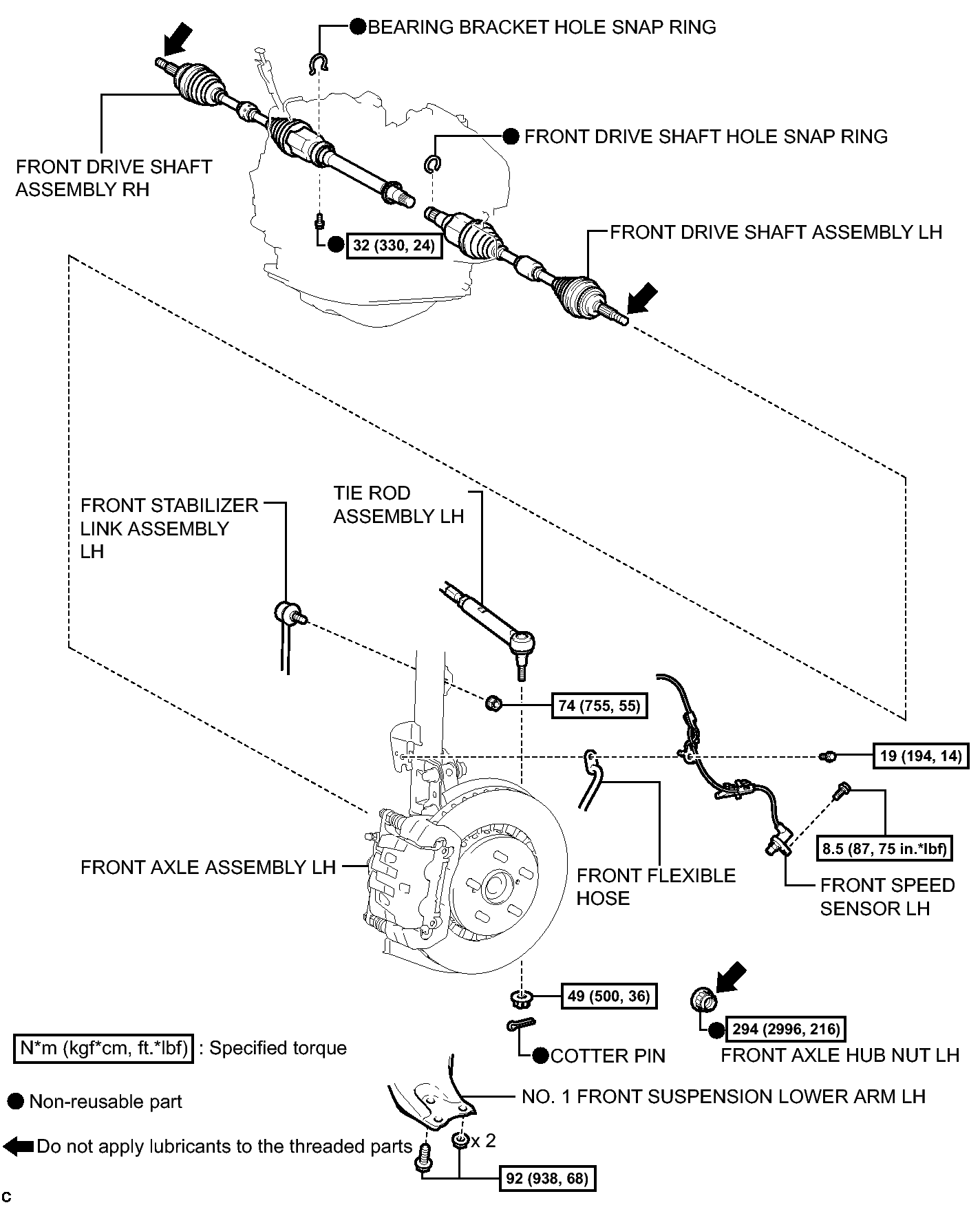

Fig 1: Identifying Front Drive Shaft Assembly (for TMMI Made 1AR-FE) Replacement Components (4 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
