Parking Brake Pedal: Components: Illustration

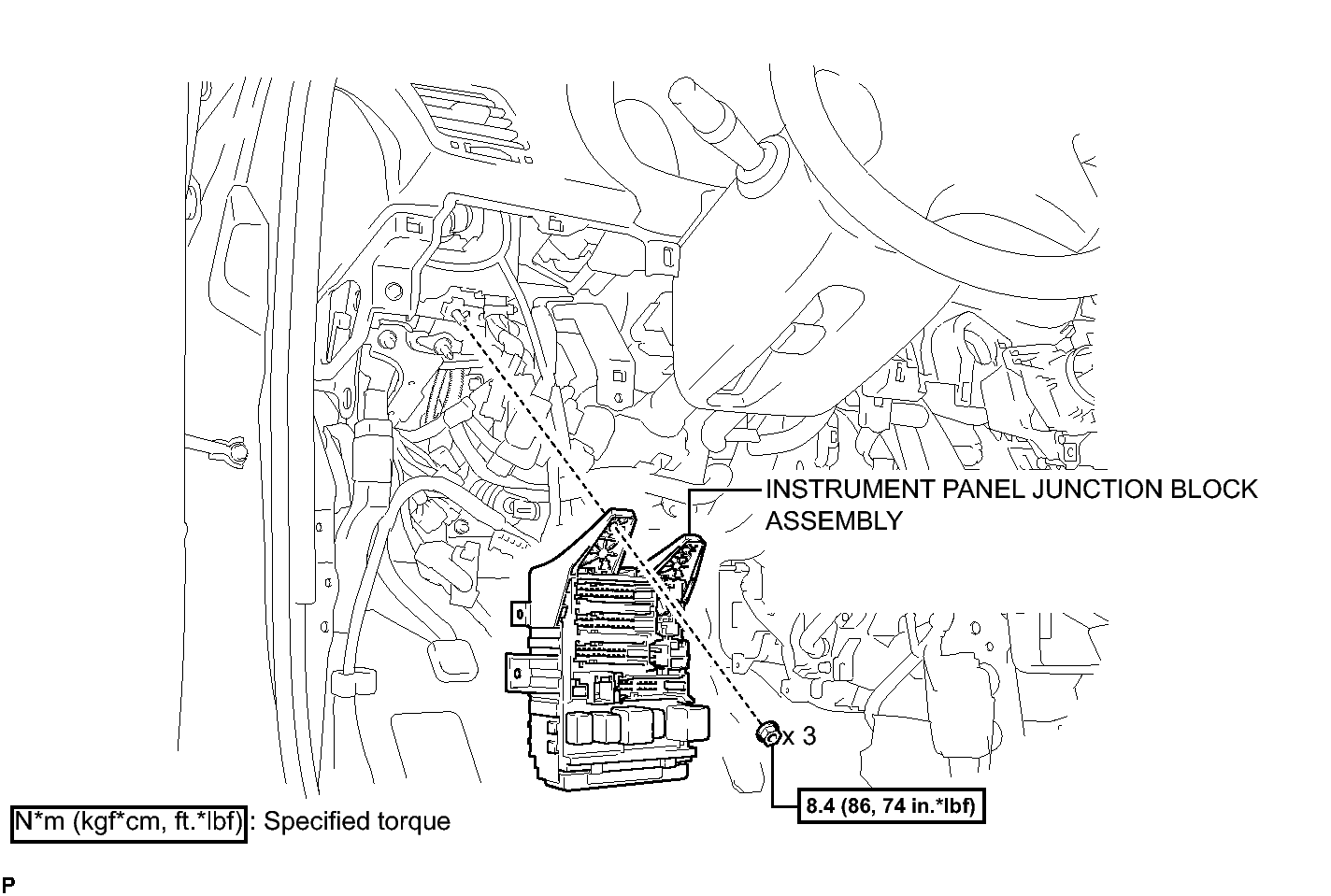

Fig 1: Identifying Parking Brake Pedal Replacement Components With Torque Specification (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

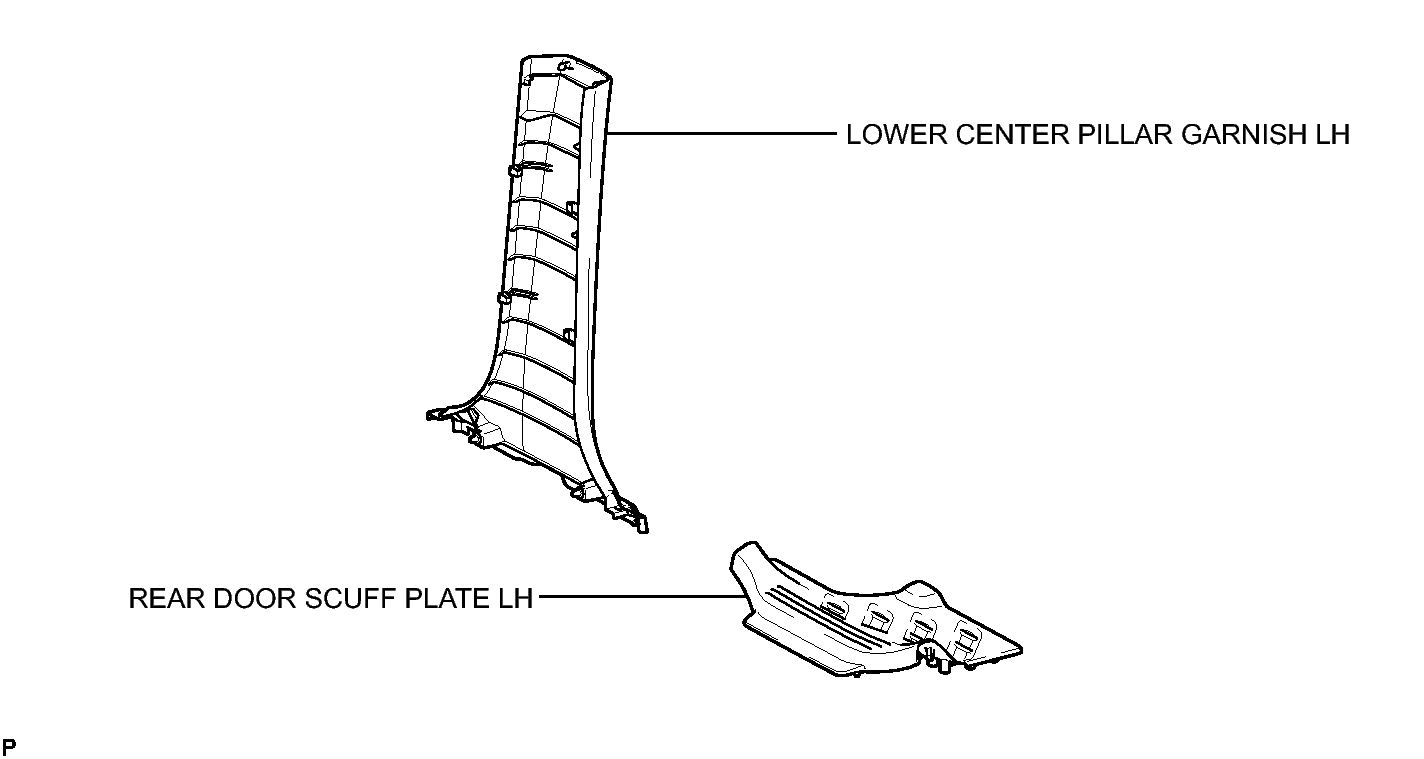

Fig 1: Identifying Parking Brake Pedal Replacement Components With Torque Specification (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

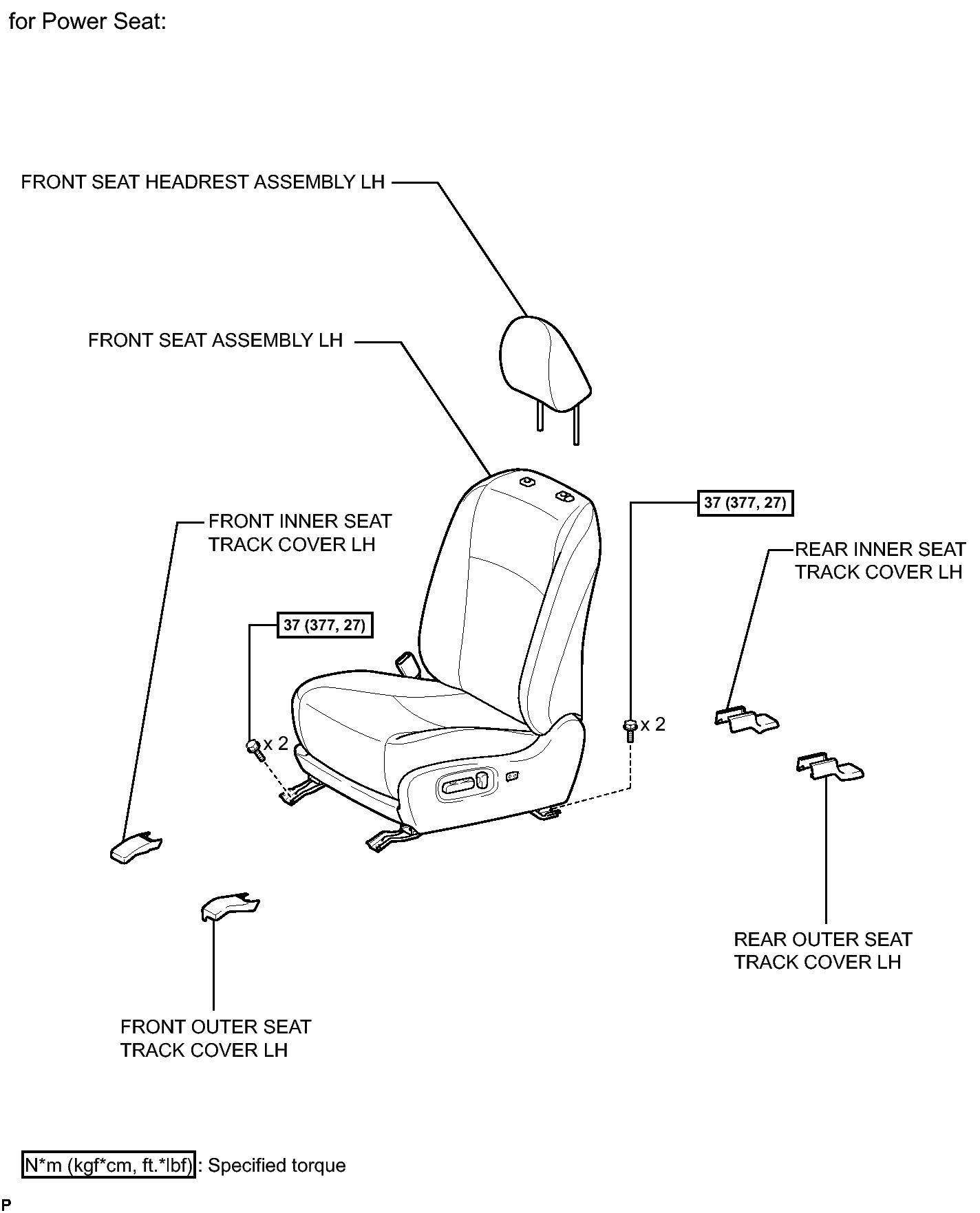

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

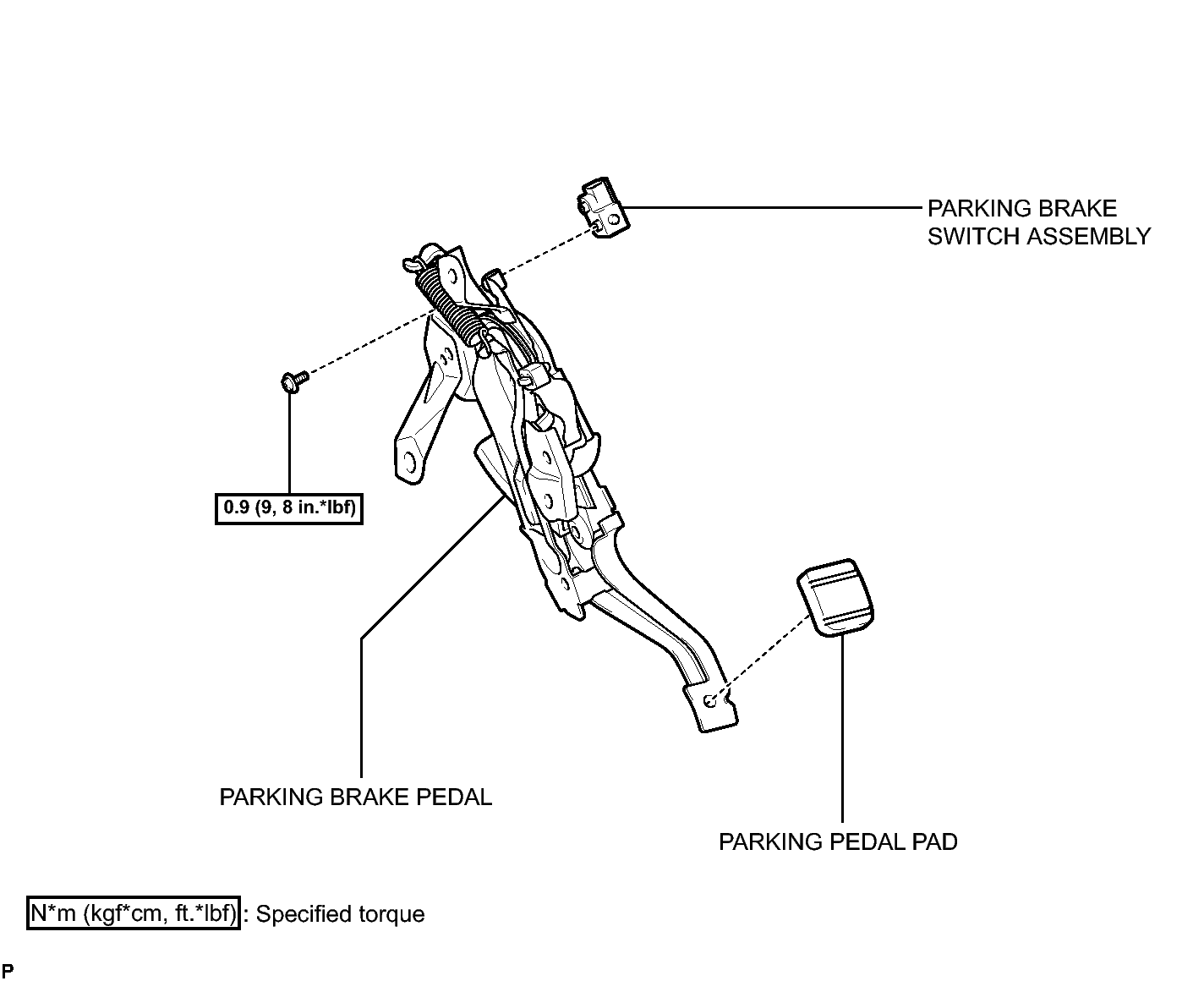

Fig 1: Identifying Parking Brake Pedal Replacement Components (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

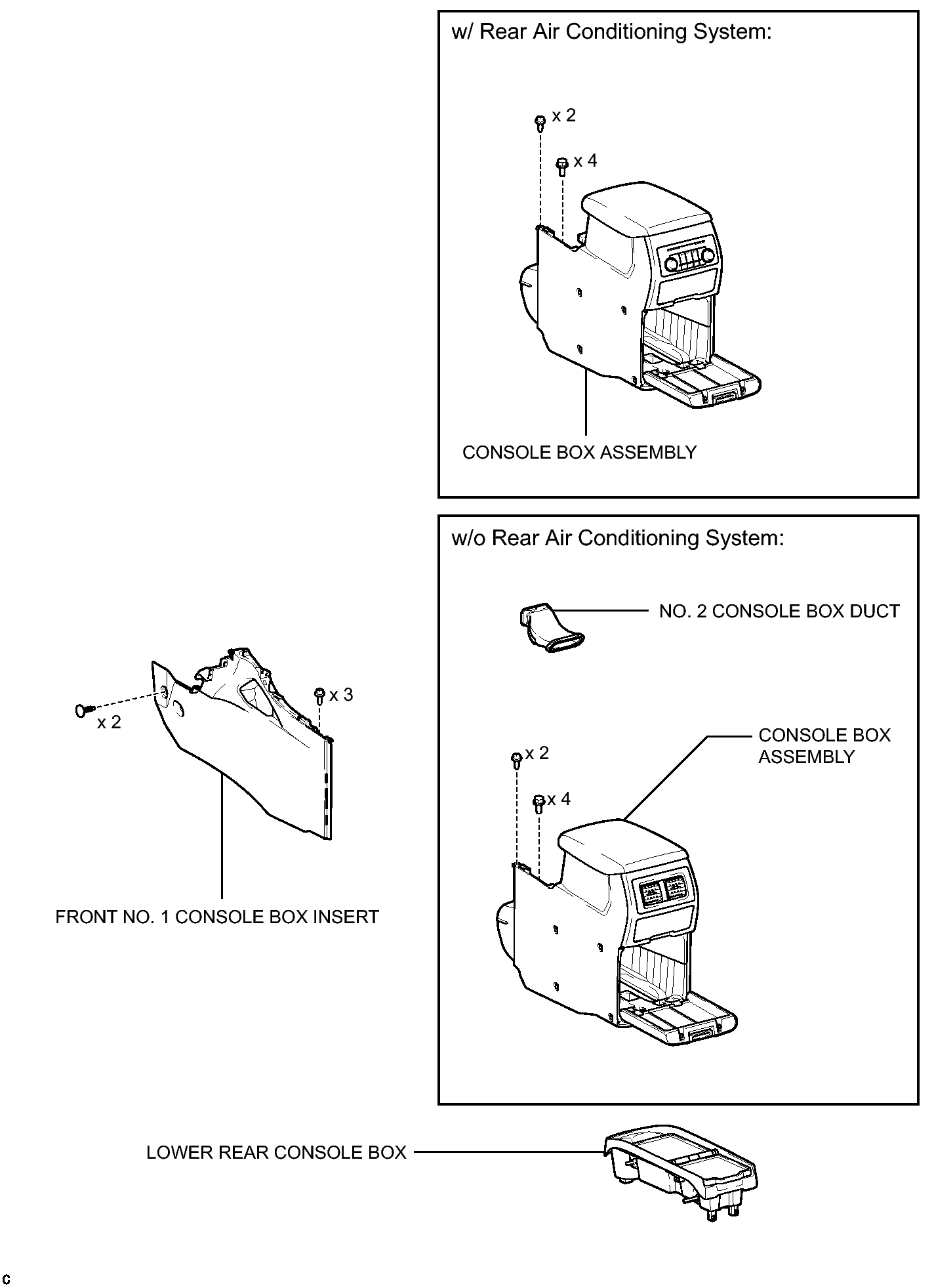

Fig 1: Identifying Parking Brake Pedal Replacement Components With Torque Specifications (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

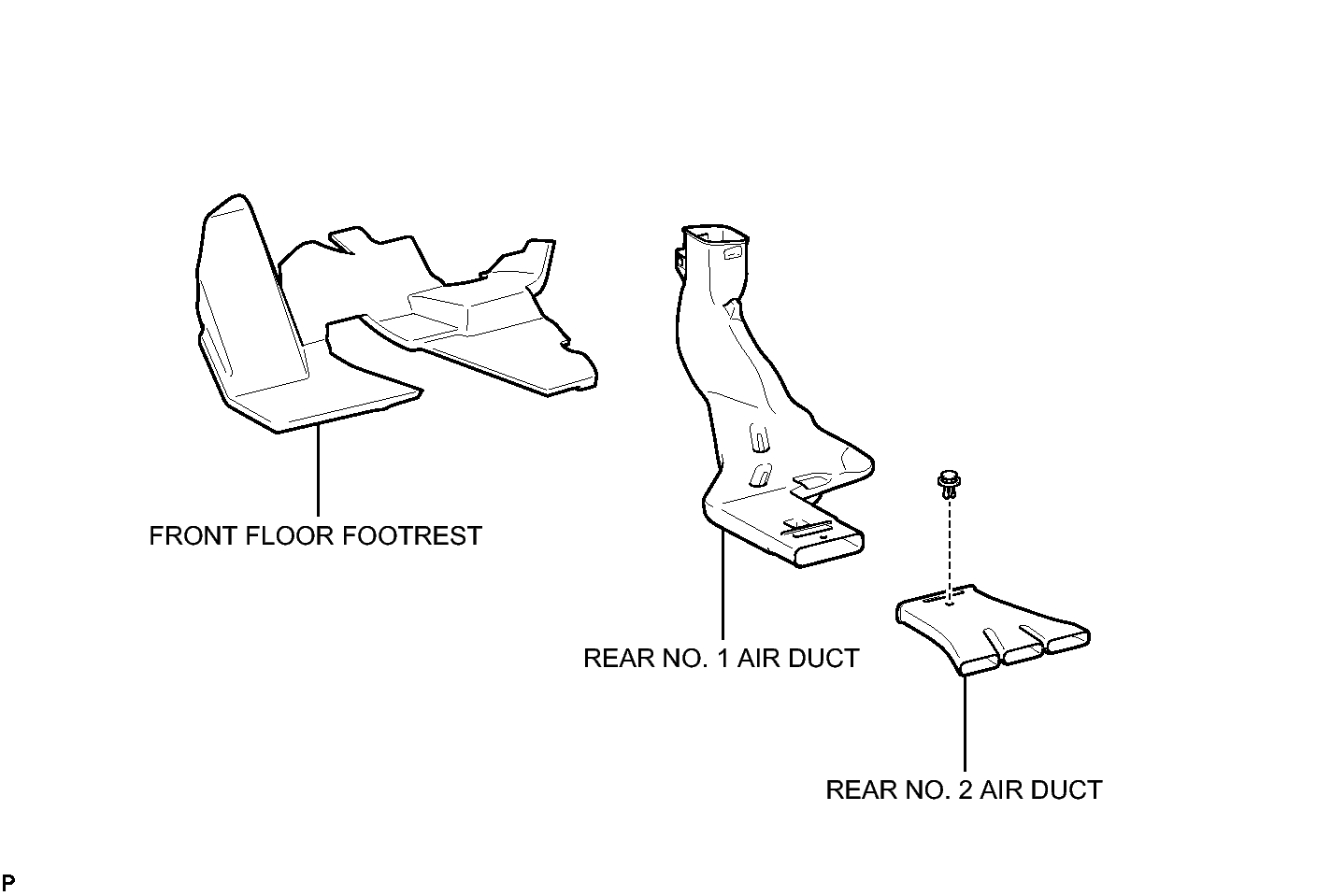

Fig 1: Identifying Parking Brake Pedal Replacement Components (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

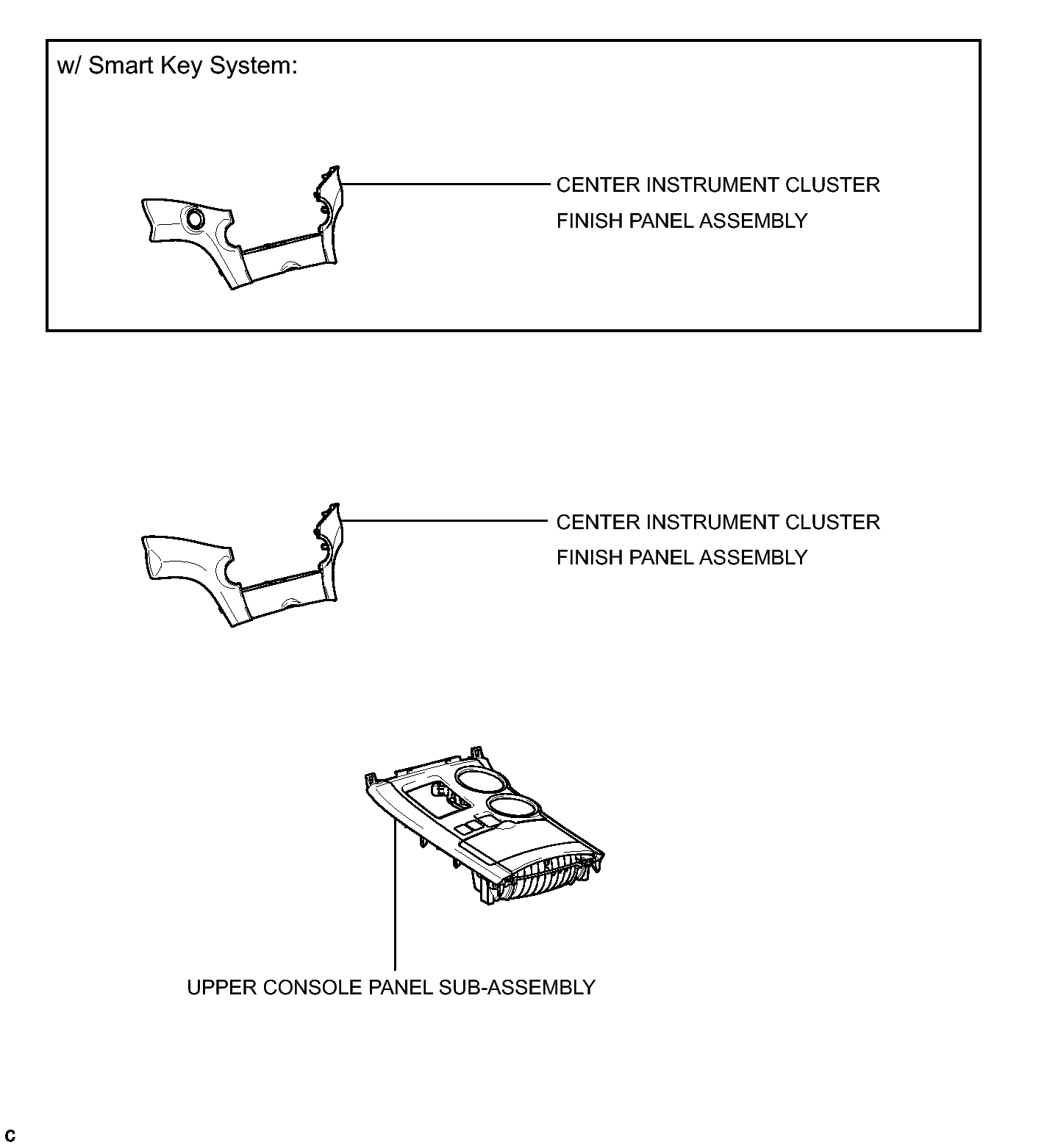

Fig 1: Identifying Parking Brake Pedal Replacement Components (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

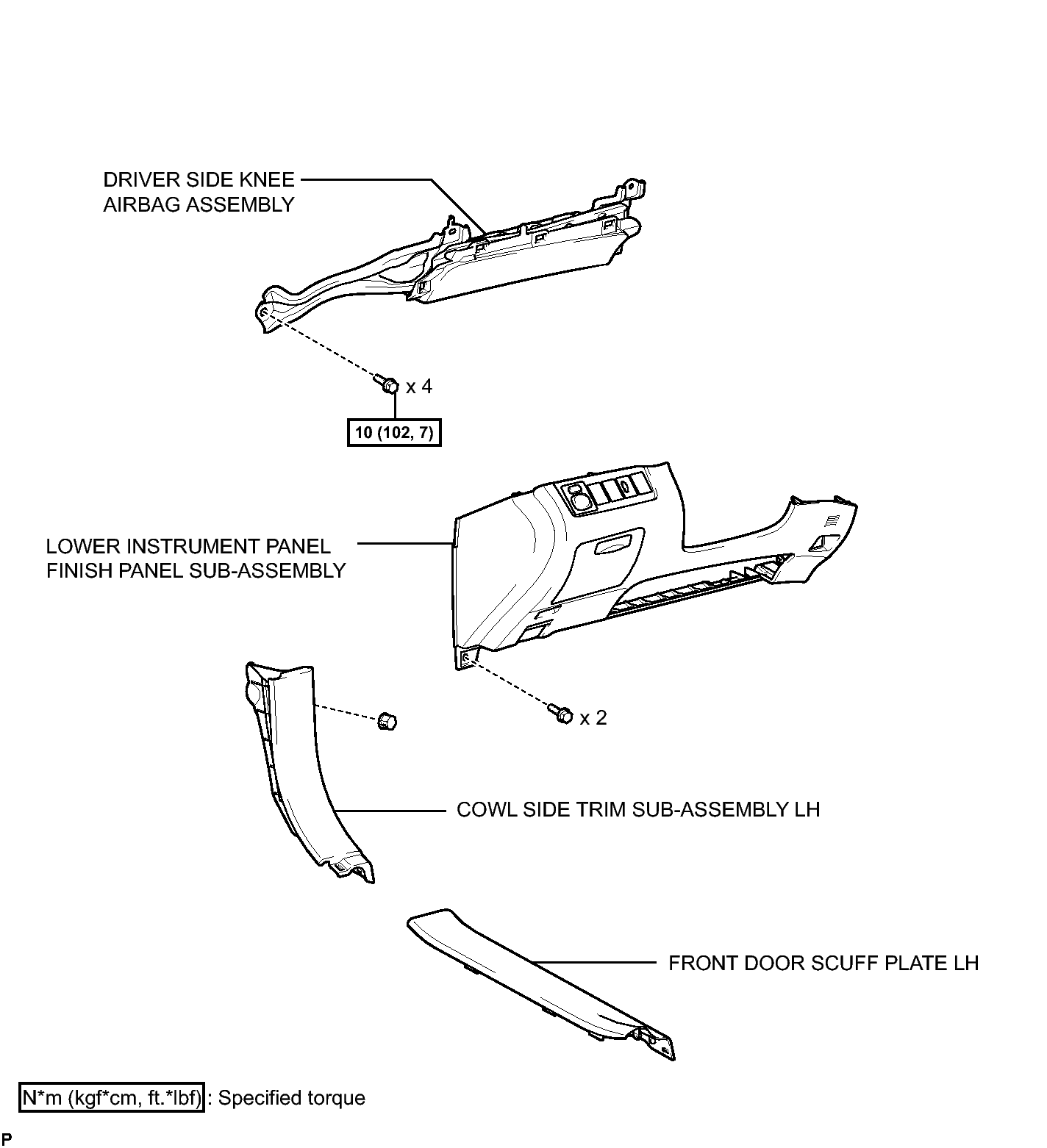

Fig 1: Identifying Parking Brake Pedal Replacement Components (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

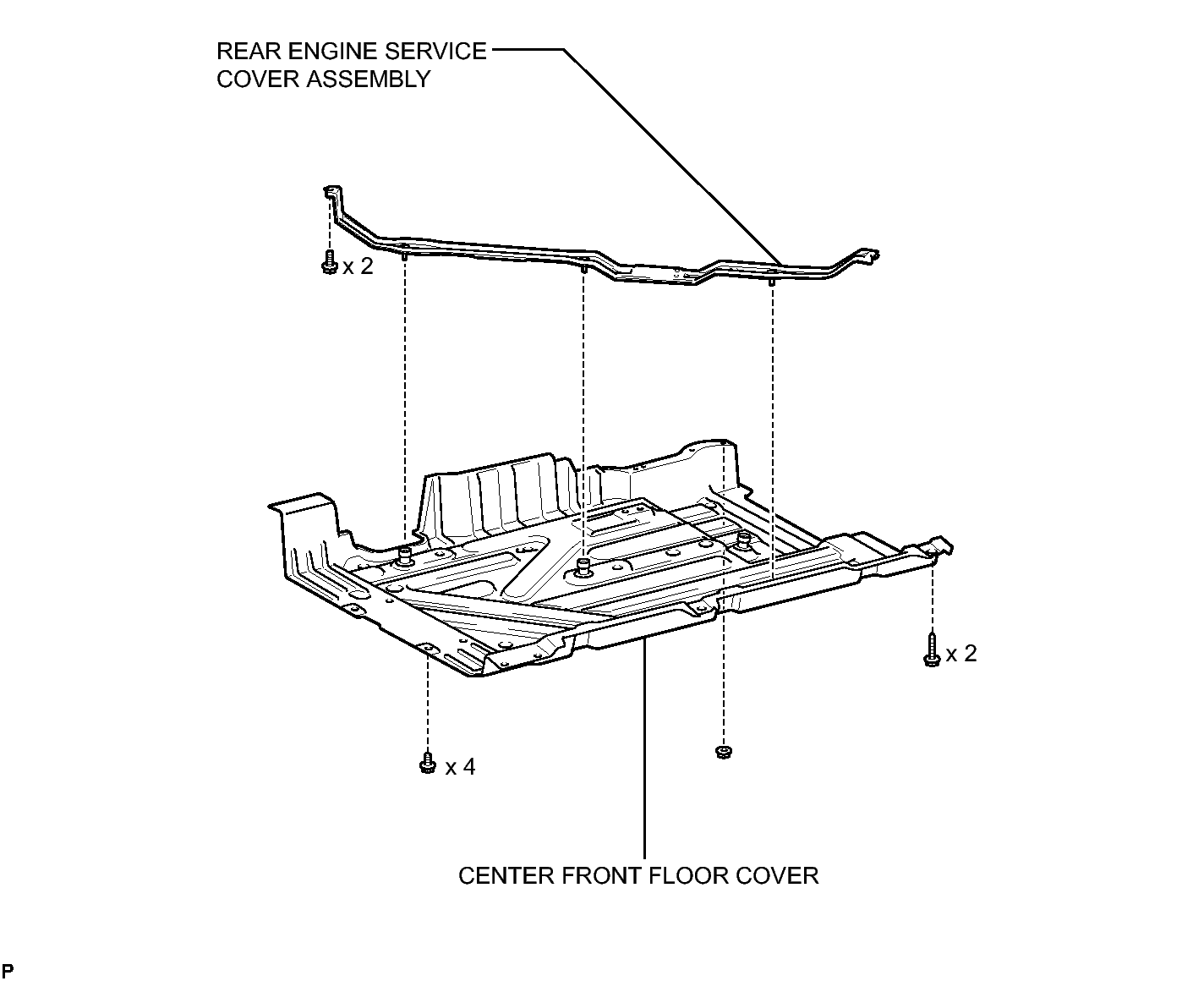

Fig 1: Identifying Parking Brake Pedal Replacement Components (9 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

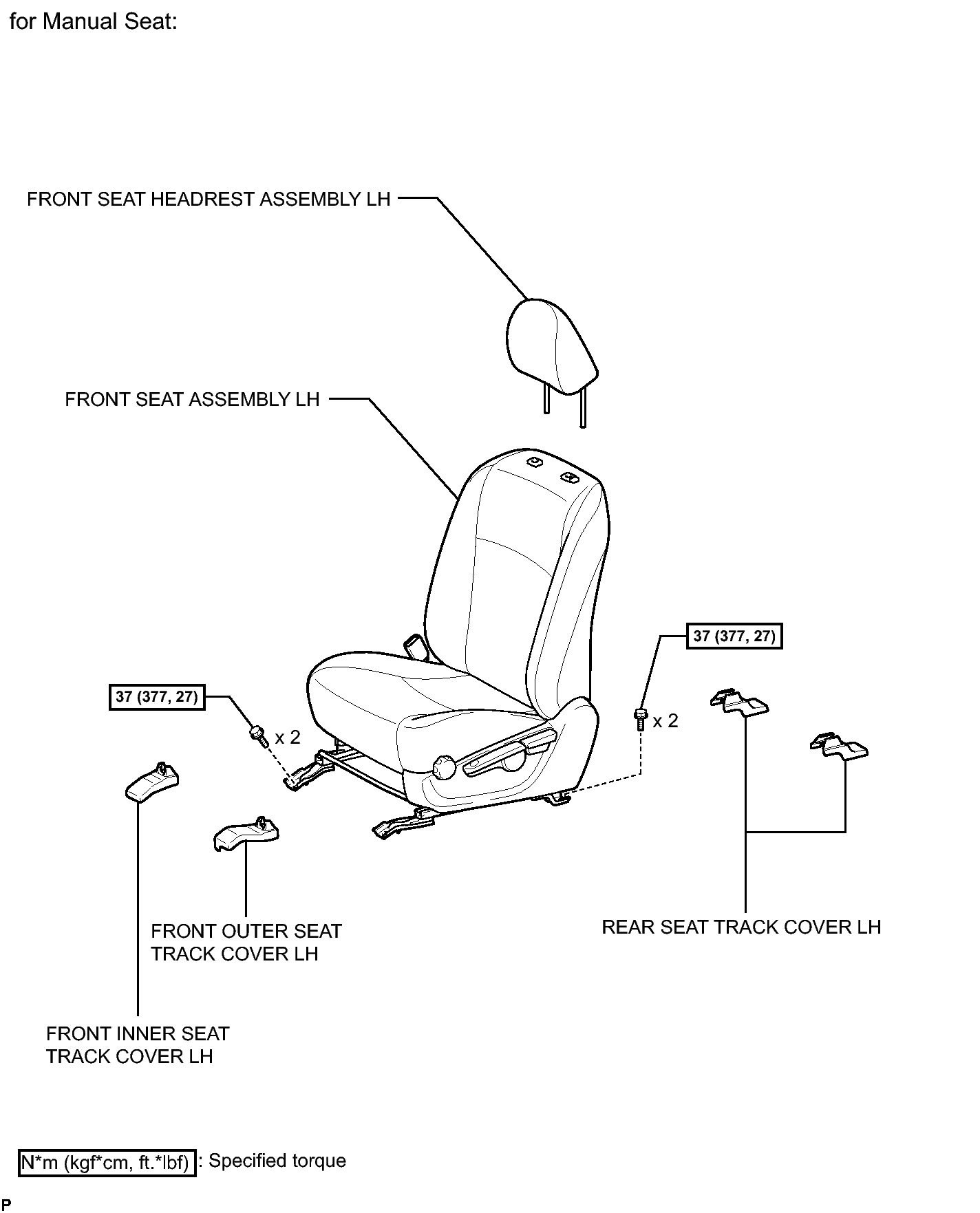

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (10 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (11 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Parking Brake Pedal Replacement Components With Torque Specifications (12 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
