Parking Brake Cable: Components: Illustration

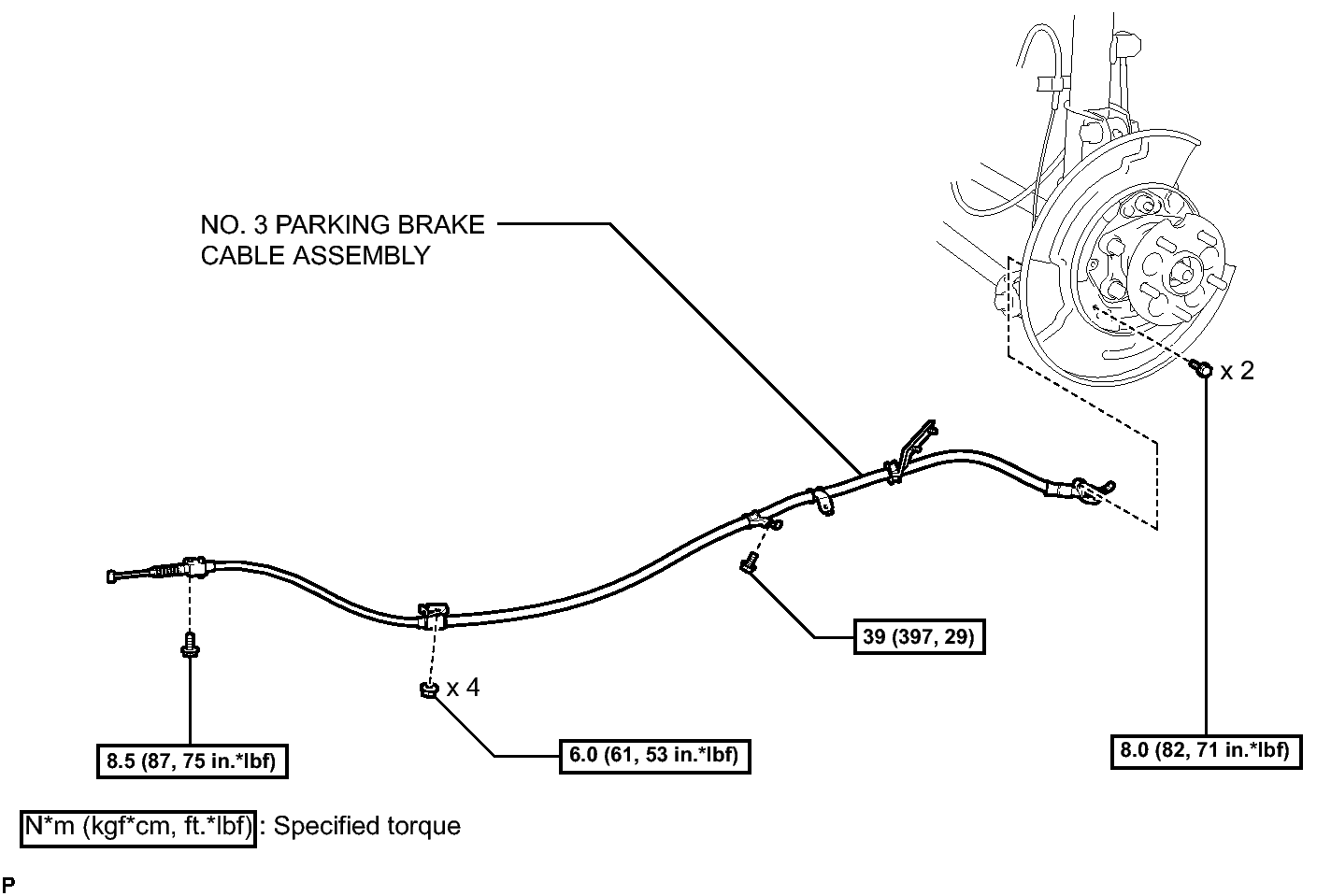

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

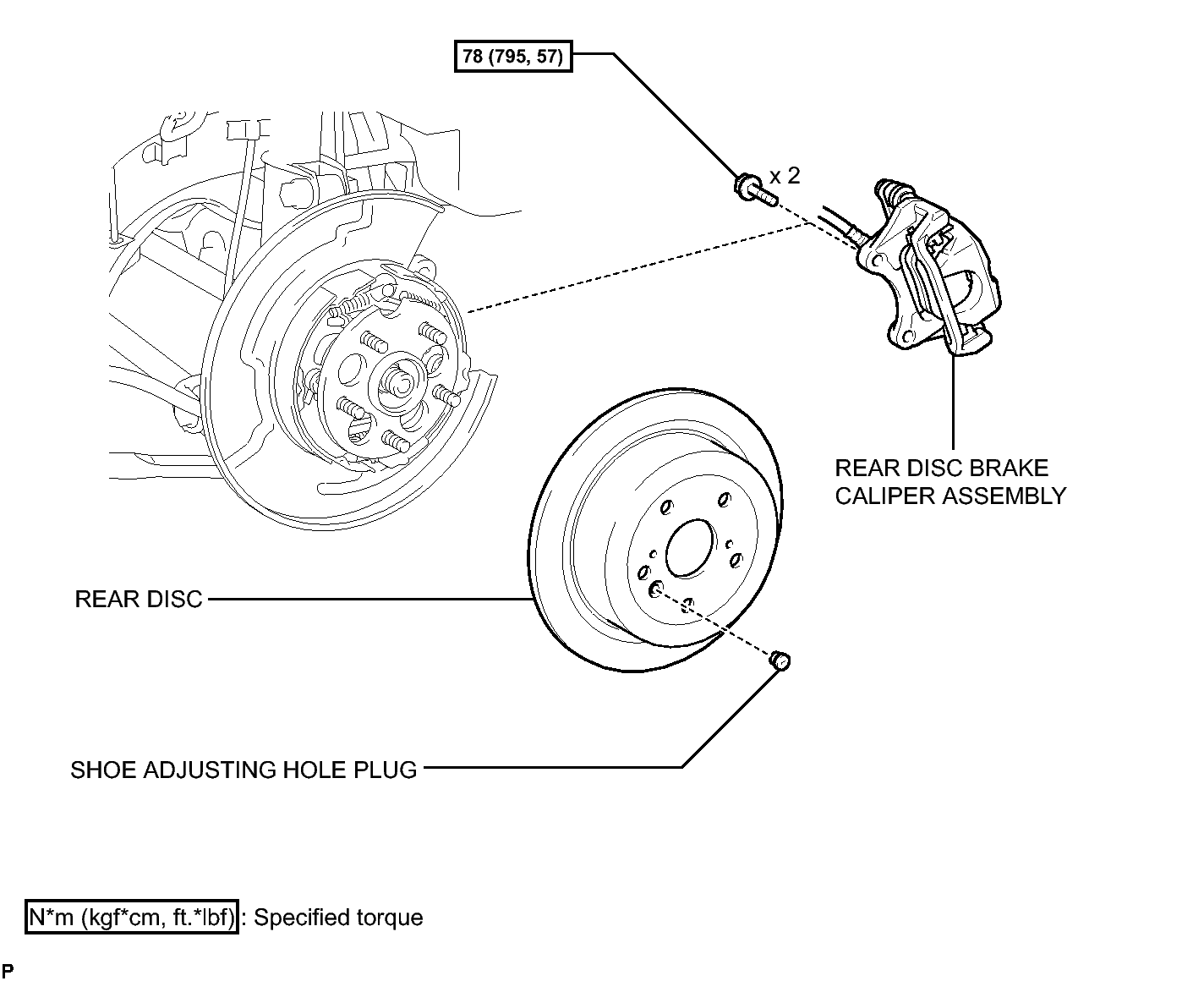

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

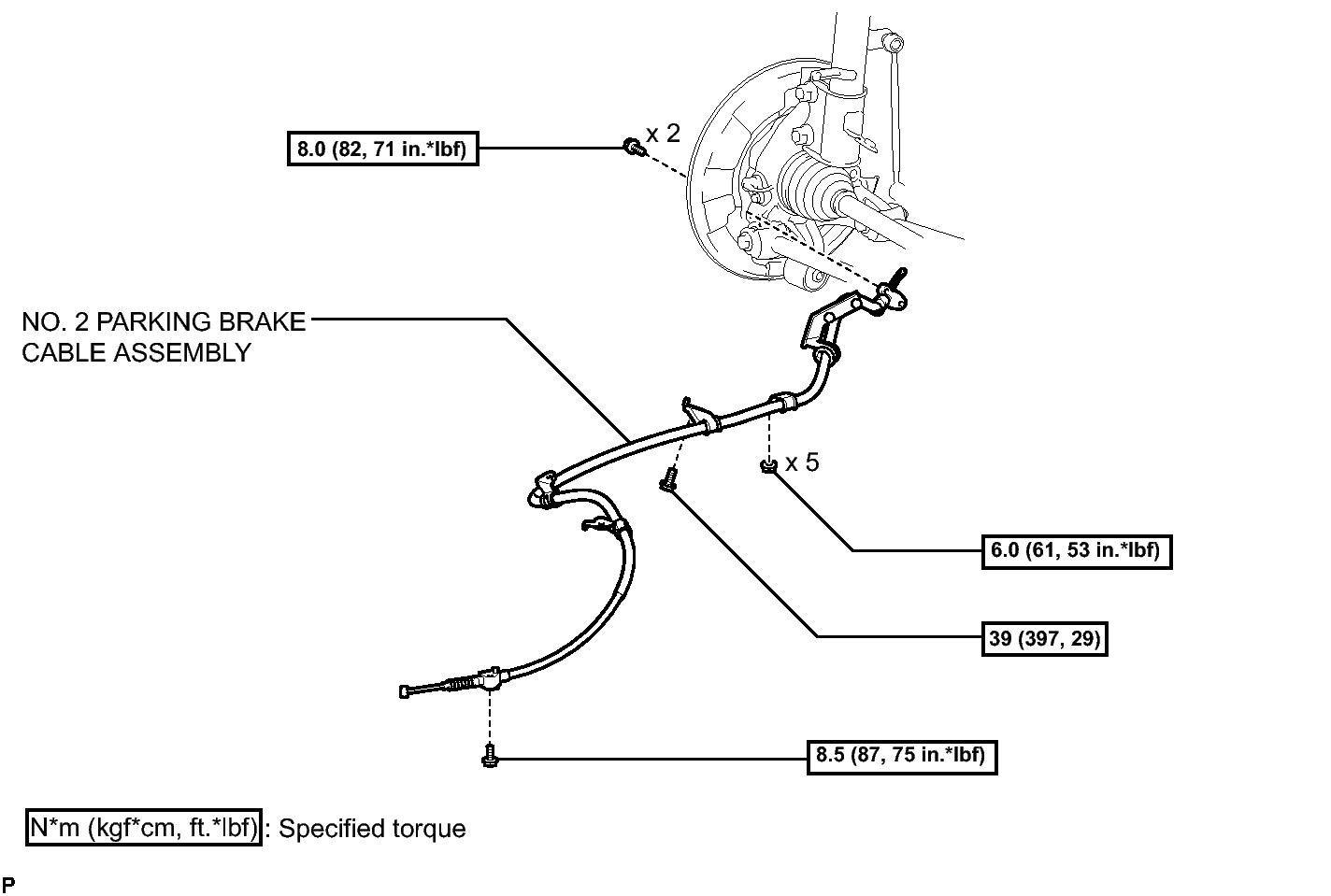

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

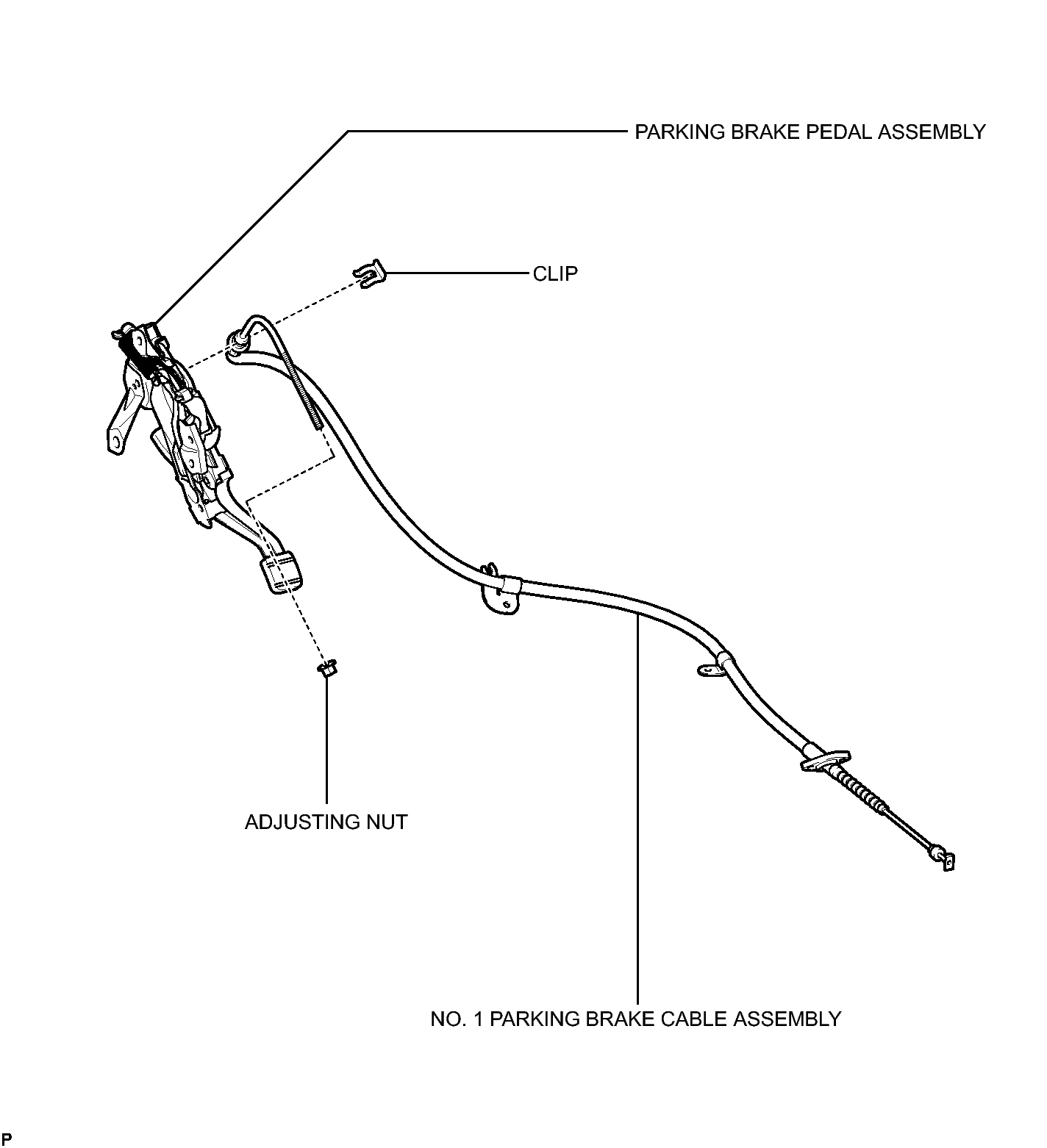

Fig 1: Identifying Parking Brake Cable Replacement Components (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

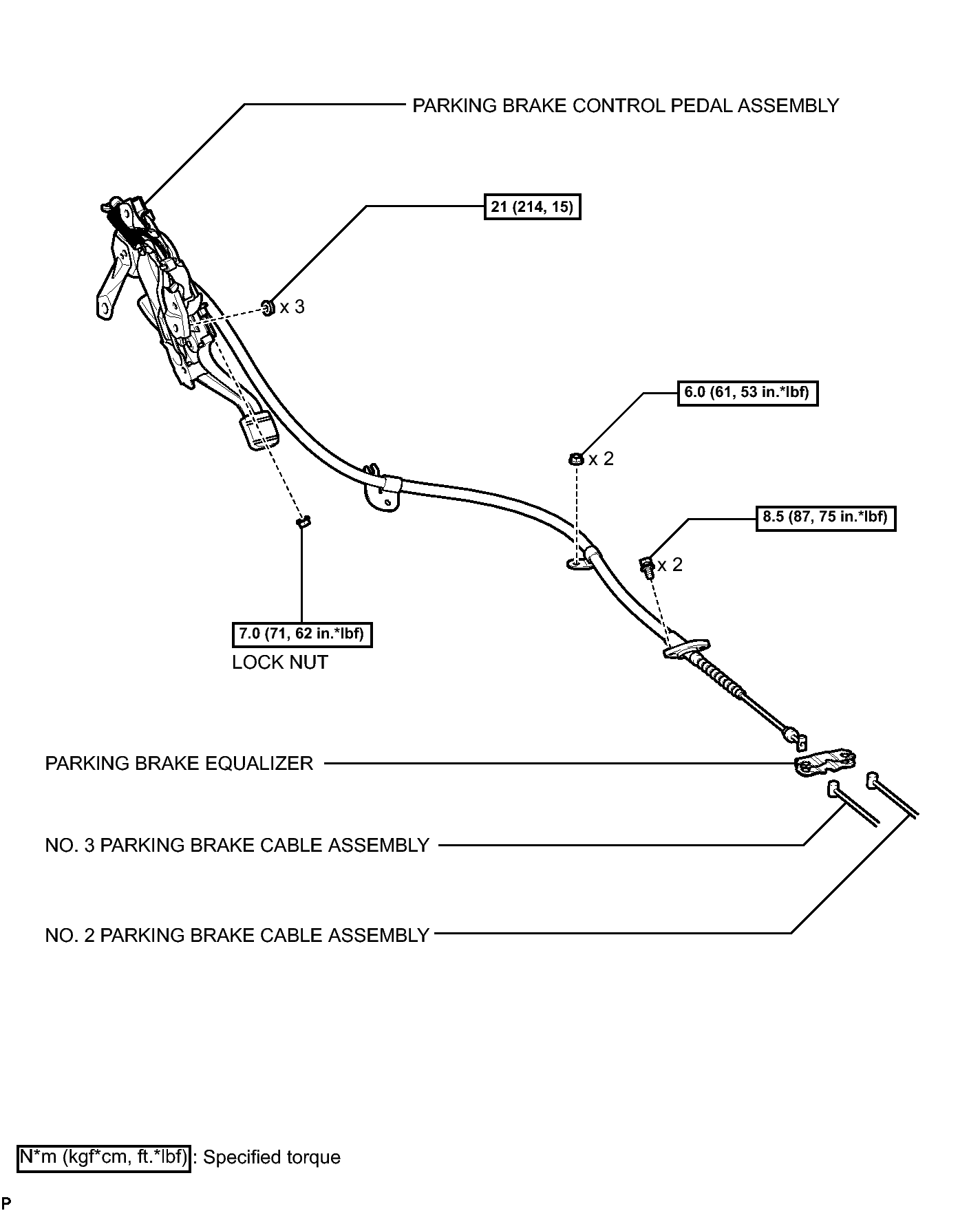

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

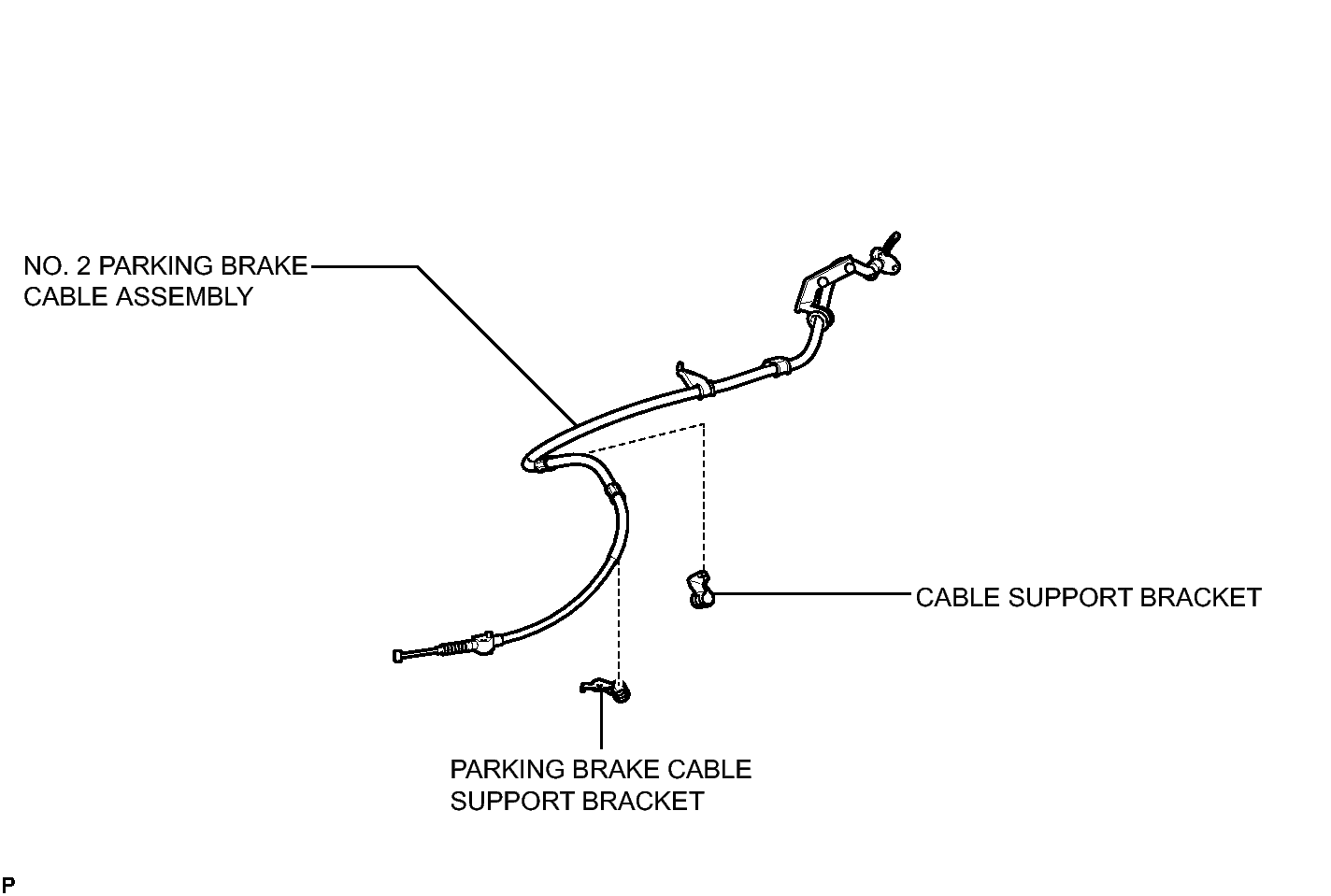

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Parking Brake Cable Replacement Components (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
