Parking Brake Assembly: Components: Illustration

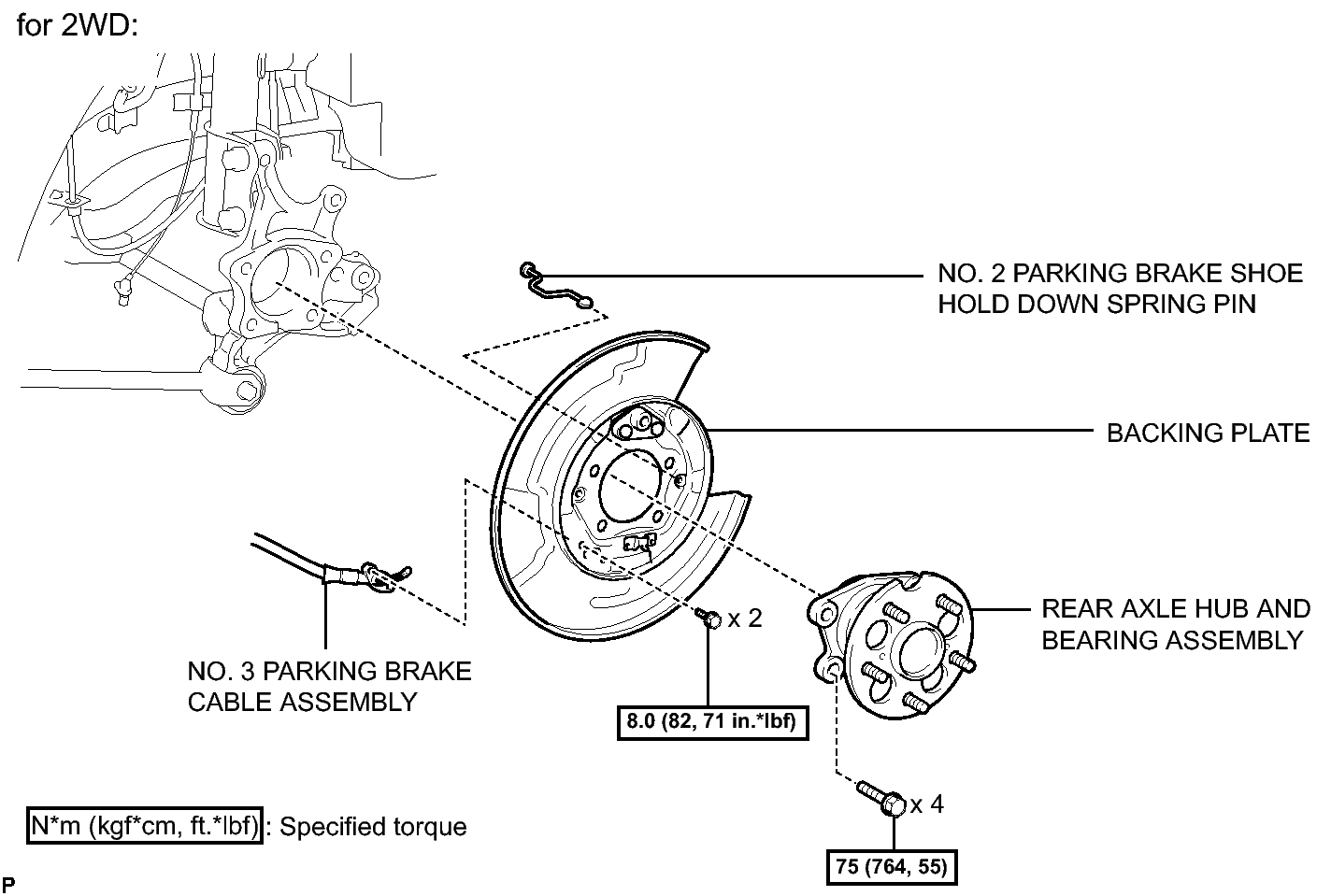

Fig 1: Identifying Parking Brake Assembly Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

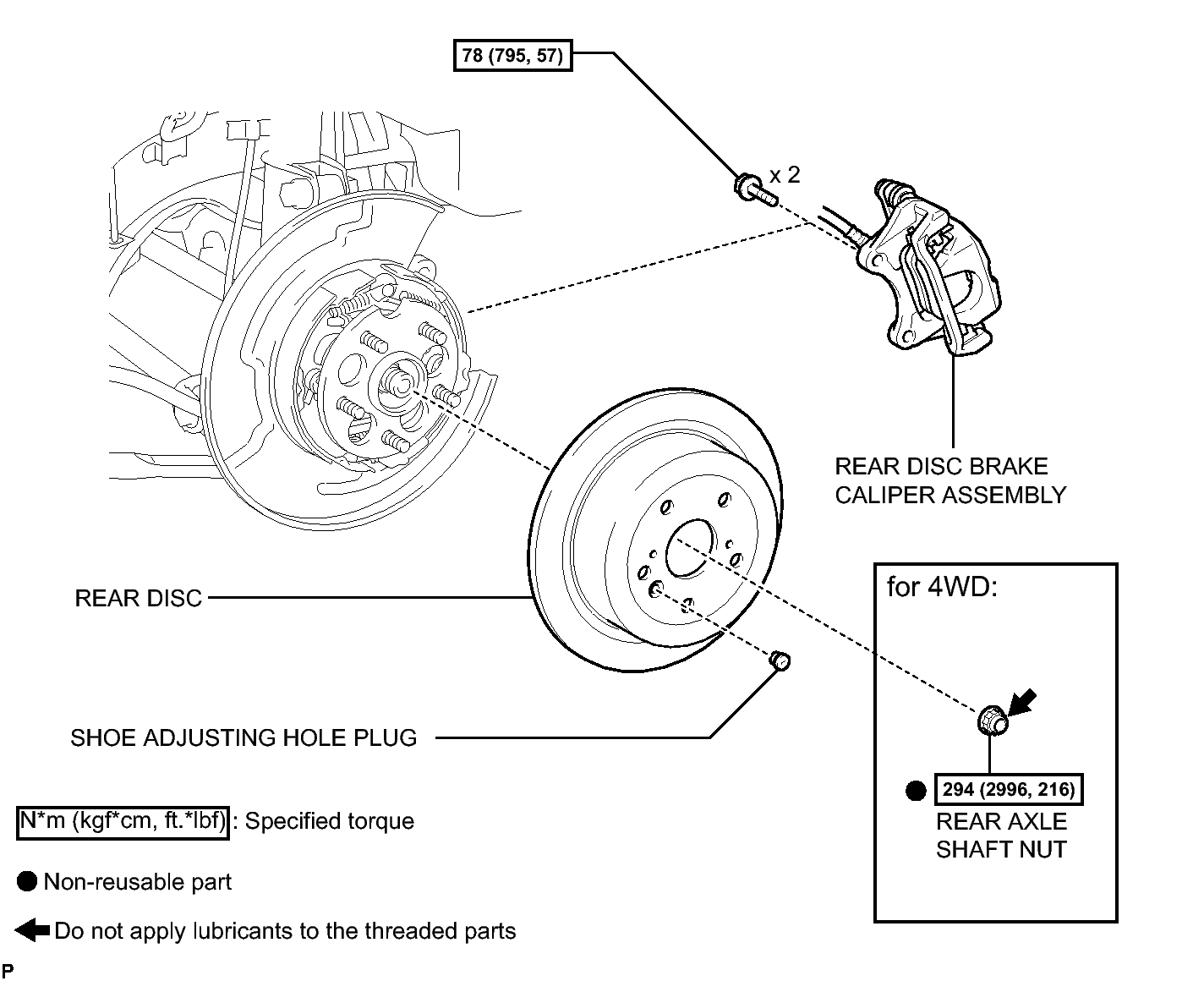

Fig 1: Identifying Parking Brake Assembly Replacement Components (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

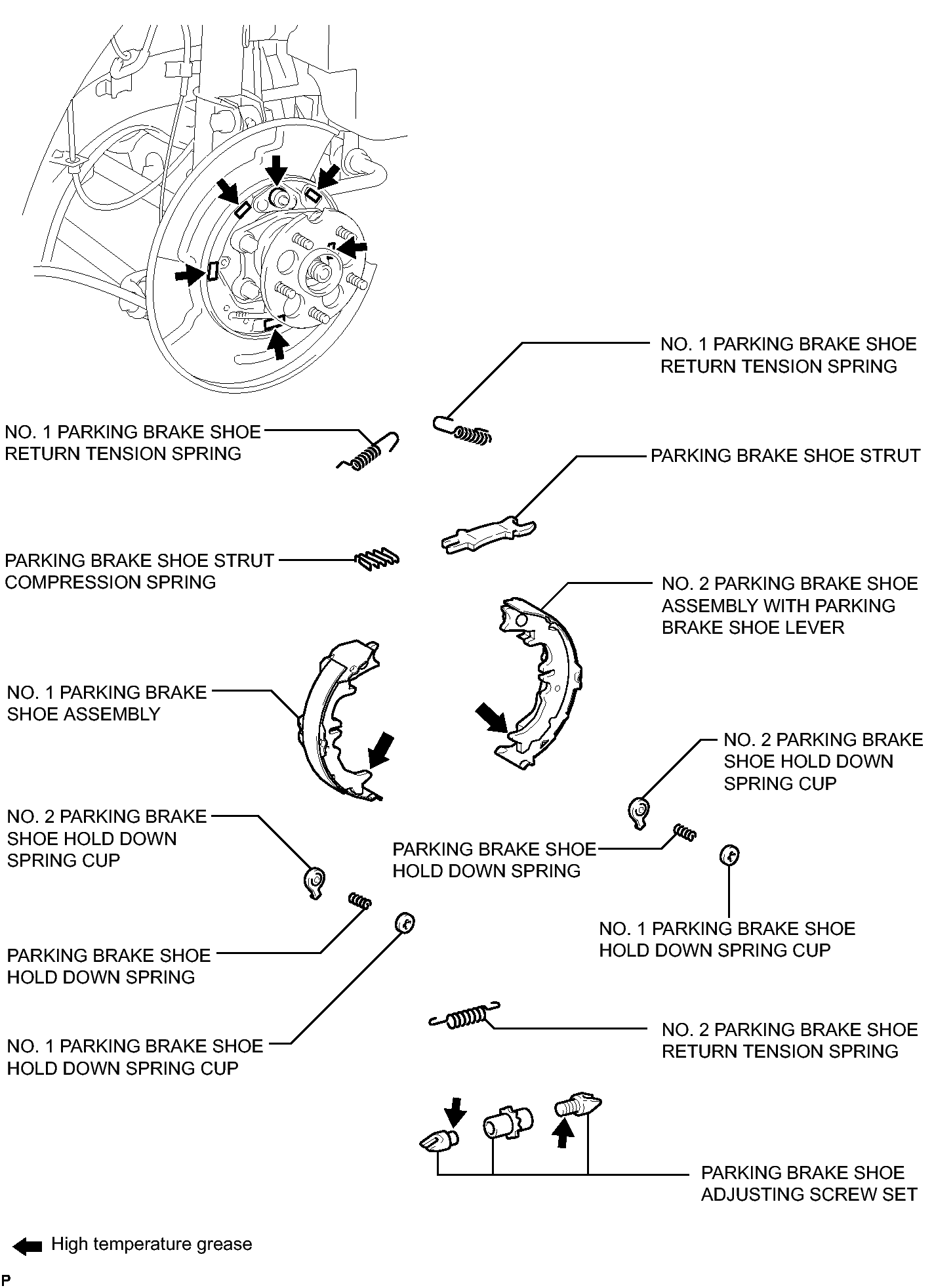

Fig 1: Identifying Parking Brake Assembly Replacement Components With Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

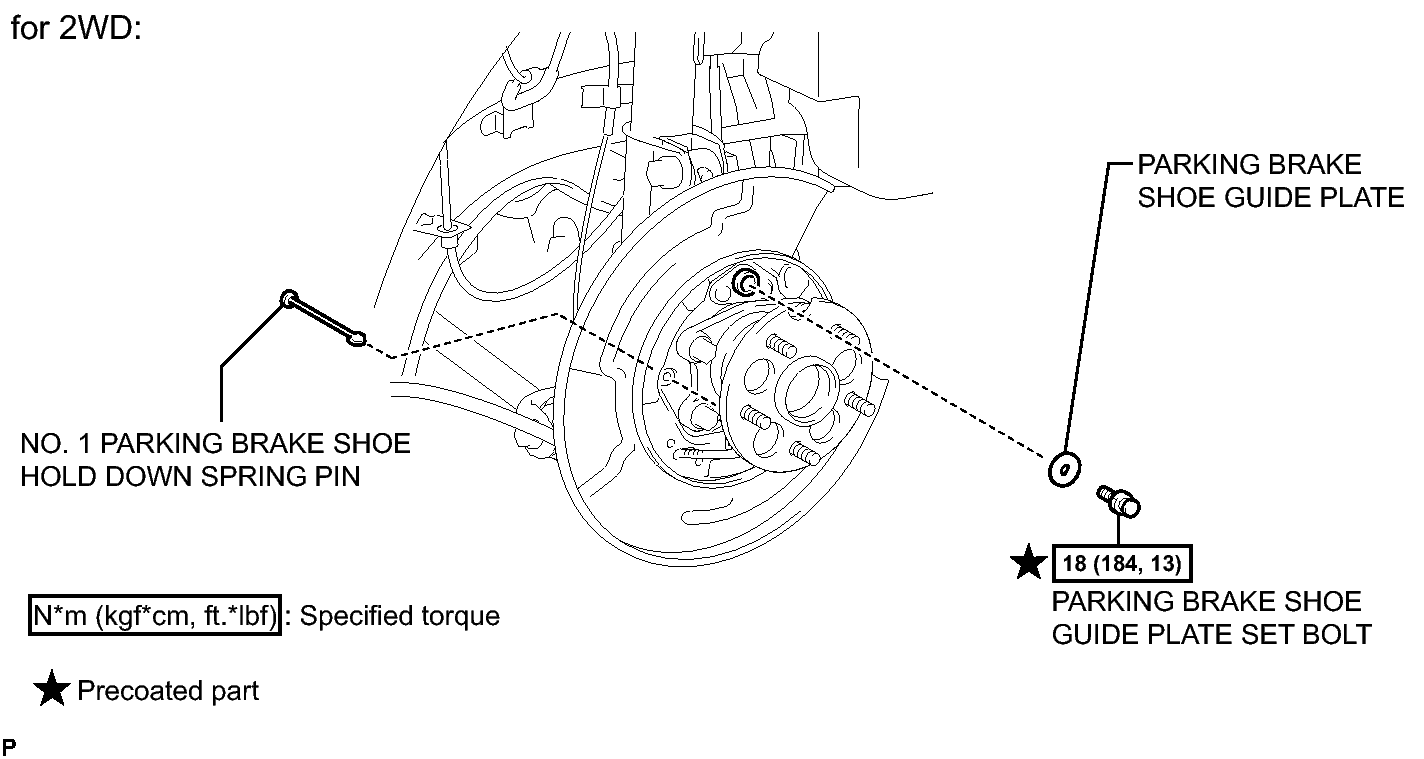

Fig 1: Identifying Parking Brake Assembly Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

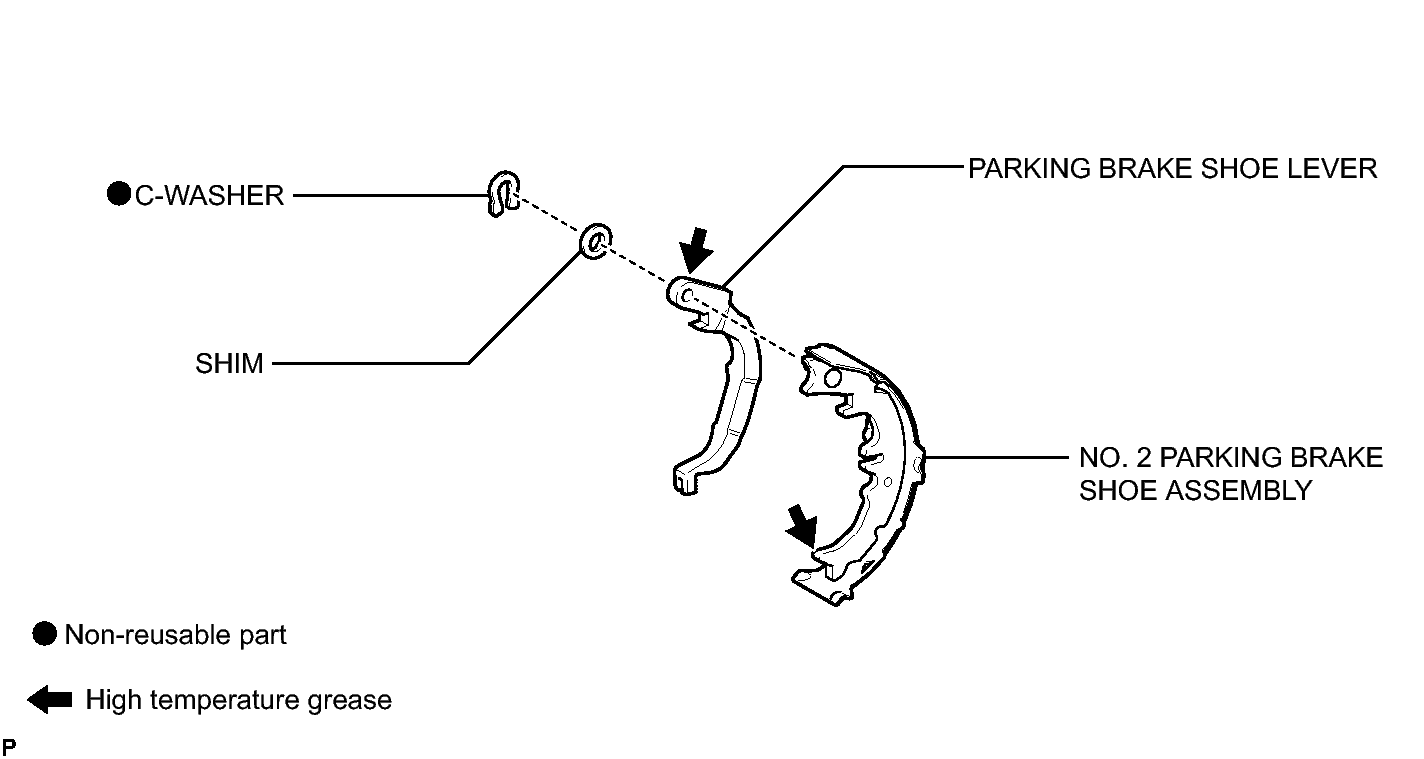

Fig 1: Identifying Parking Brake Assembly Replacement Components With Torque Specification (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

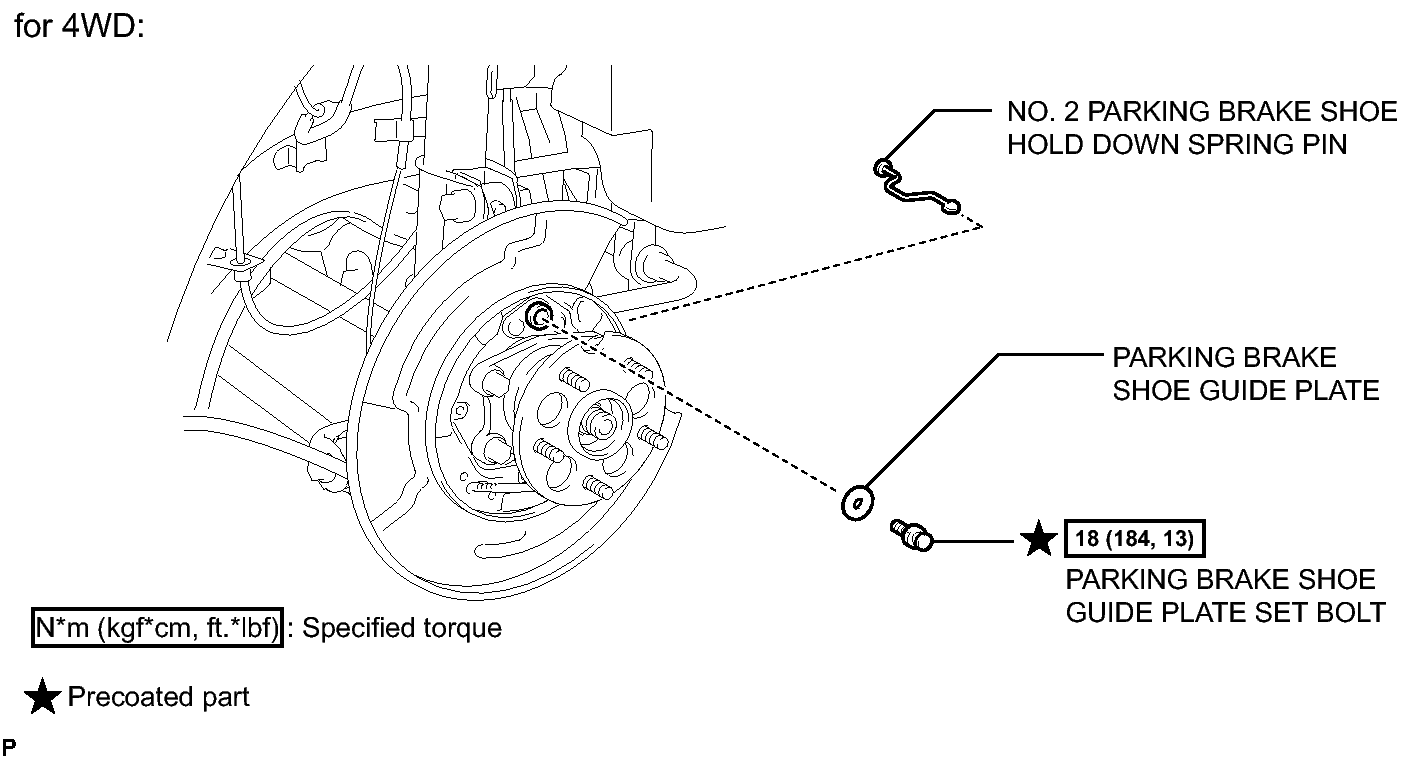

Fig 1: Identifying Parking Brake Assembly Replacement Components With Torque Specifications (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

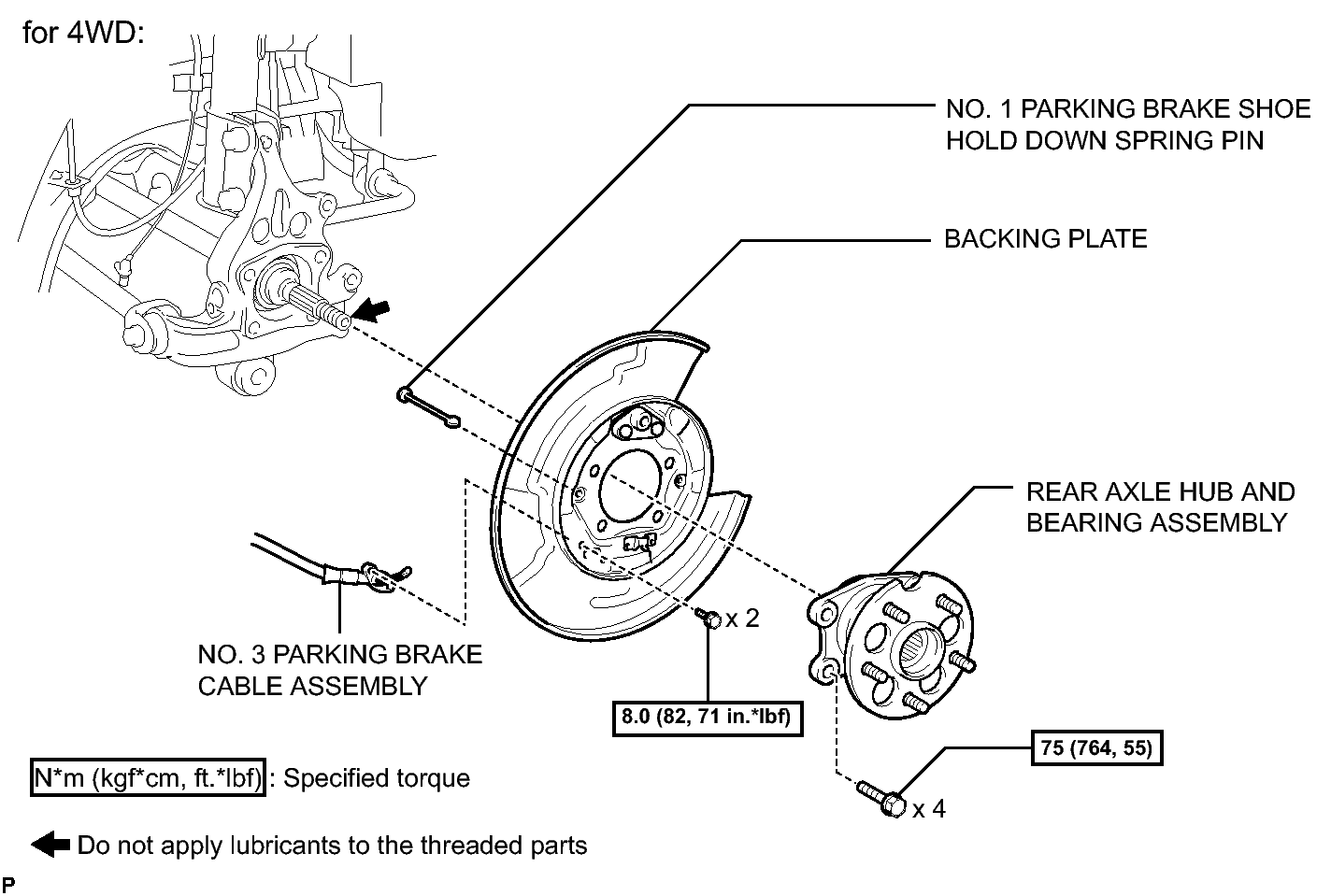

Fig 1: Identifying Parking Brake Assembly Replacement Components (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
