FENDER LINER (for Rear Side): Removal: Removal

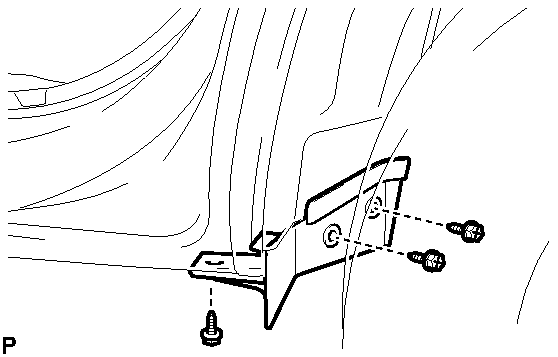

REMOVE REAR WHEEL HOUSE PAD LH
1. Remove the 3 screws and rear wheel house pad LH.

  Fig 1: Identifying Quarter Panel Seal Screws (RH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR WHEEL HOUSE PAD RH
HINT:

Use the same procedure for the RH side and LH side.

REMOVE QUARTER PANEL SEAL LH

HINT:

When removing the quarter panel seal, heat the vehicle body and quarter panel seal using a heat light.

Heating temperature

Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Quarter Panel Seal	20 to 30°C (68 to 86°F)

NOTE:

Do not heat the vehicle body or quarter panel seal excessively.

Remove the 4 screws.

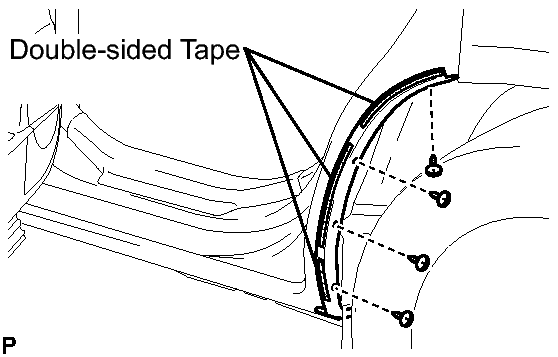

Fig 2: Identifying Double-Sided Tape & Quarter Panel Seal LH Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Peel off the double-sided tape and remove the quarter panel seal LH.

REMOVE QUARTER PANEL SEAL RH
HINT:

Use the same procedures for the RH side and LH side.
REMOVE REAR BUMPER SIDE SEAL LH
1. Remove the clip, screw and bolt.

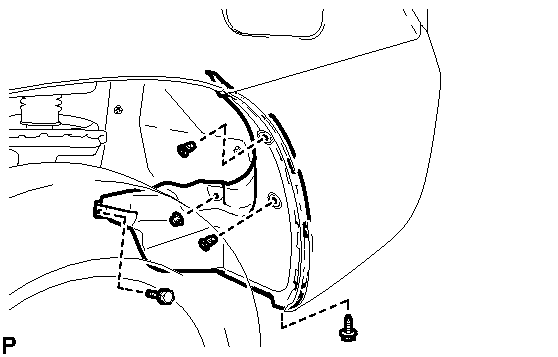

  Fig 3: Identifying Rear Bumper Side Seal Clip, Bolt And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 grommets.
  HINT:

  The grommets need to be replaced with new ones because they will break when they are removed.
3. Remove the rear bumper side seal LH.
REMOVE REAR BUMPER SIDE SEAL RH
HINT:

Use the same procedures for the RH side and LH side.
REMOVE REAR WHEEL HOUSE LINER LH
1. Remove the 10 clips and rear wheel house liner LH.

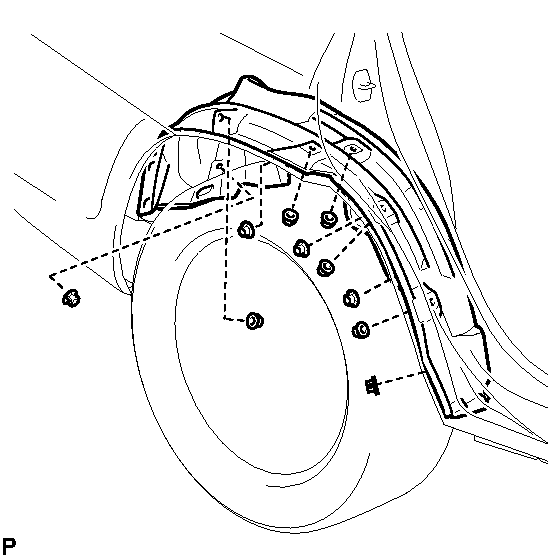

  Fig 4: Identifying Rear Wheel House Liner Clips (LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR WHEEL HOUSE LINER RH
1. Remove the 10 clips and rear wheel house liner RH.

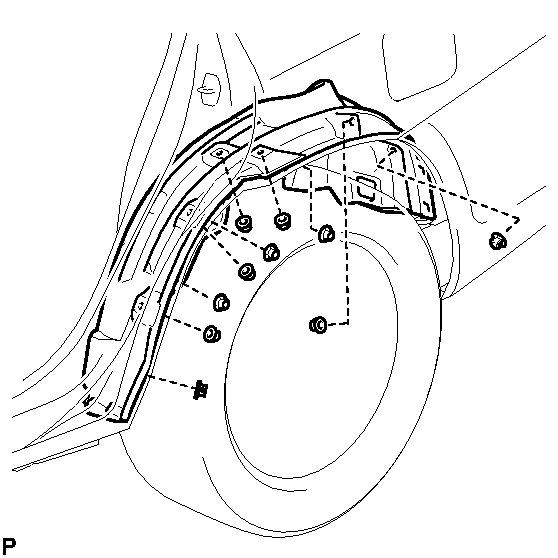

  Fig 5: Identifying Rear Wheel House Liner Clips (RH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
