FENDER LINER (for Front Side): Removal: Removal

REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY LH See step 1
REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
REMOVE FRONT WHEEL OPENING EXTENSION PAD (for LH Side)

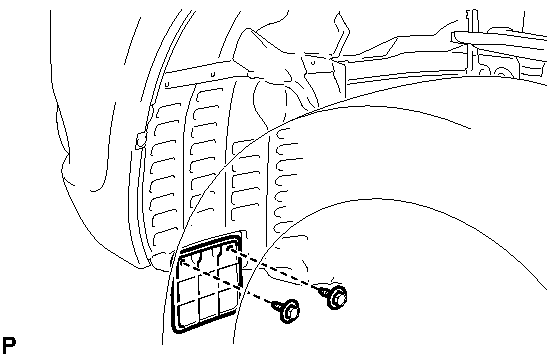

1. Remove the 2 screws and front wheel opening extension pad.

  Fig 1: Identifying Front Wheel Opening Extension Pad Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT WHEEL OPENING EXTENSION PAD (for RH Side)
HINT:

Use the same procedure as for the LH side.
REMOVE FRONT FENDER LINER LH
1. Remove the screw.

  Fig 2: Identifying Front Fender Liner LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

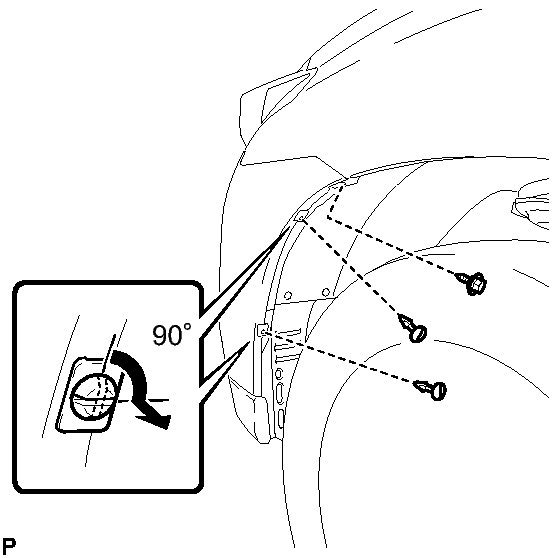

2. Using a screwdriver, turn the pin 90 degrees and remove the 2 pin hold clips.
3. Using a 4 mm hexagon wrench, remove the 2 screws.

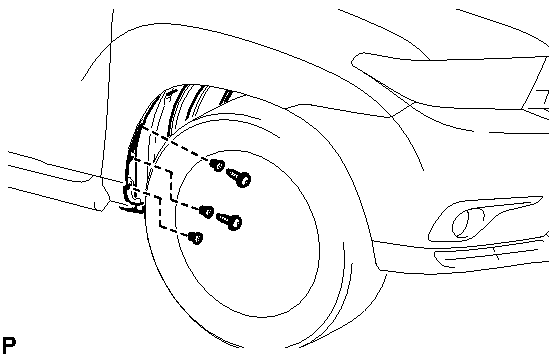

  Fig 3: Identifying Front Fender Liner LH Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 3 grommets.
  HINT:

  The grommets need to be replaced with new ones because they will break when they are removed.

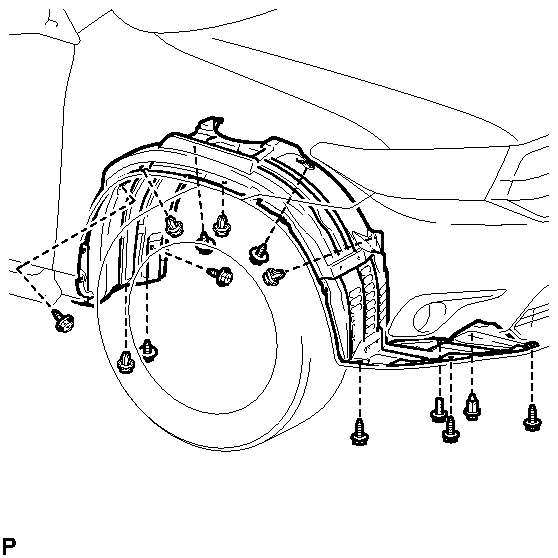

5. Remove the 5 clips.

  Fig 4: Identifying Front Fender Liner LH Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the bolt, 8 screws and front fender liner LH.
REMOVE FRONT FENDER LINER RH
1. Remove the screw.

  Fig 5: Locating Front Fender Liner RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

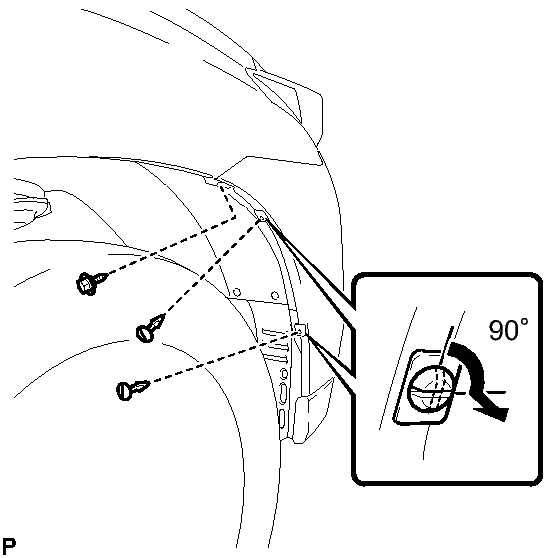

2. Using a screwdriver, turn the pin 90 degrees and remove the 2 pin hold clips.
3. Using a 4 mm hexagon wrench, remove the 2 screws.

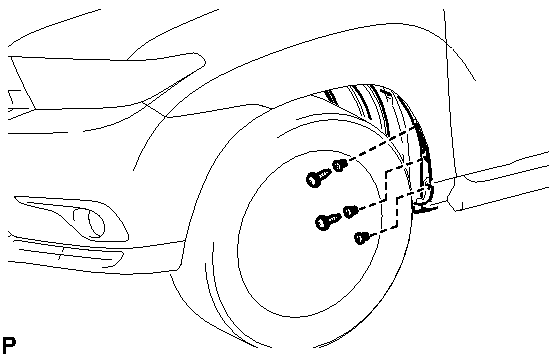

  Fig 6: Identifying Front Fender Liner RH Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 grommets.
  HINT:

  The grommets need to be replaced with new ones because they will break when they are removed.
5. Remove the 5 clips

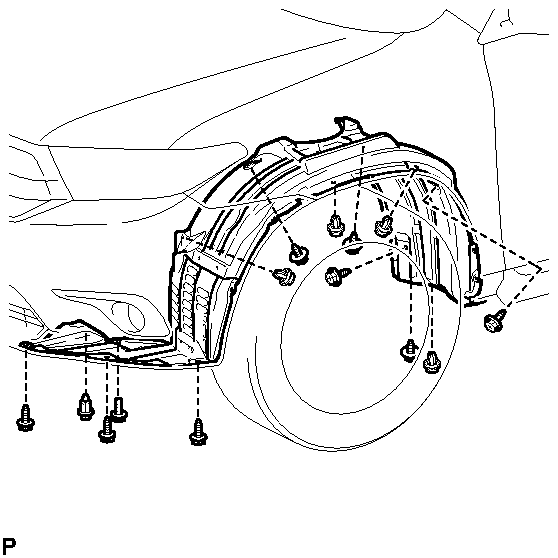

  Fig 7: Identifying Front Fender Liner RH And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the bolt, 8 screws and front fender liner RH.
