Speaker Circuit: Wiring Diagram

  1. w/ Back Door Speaker

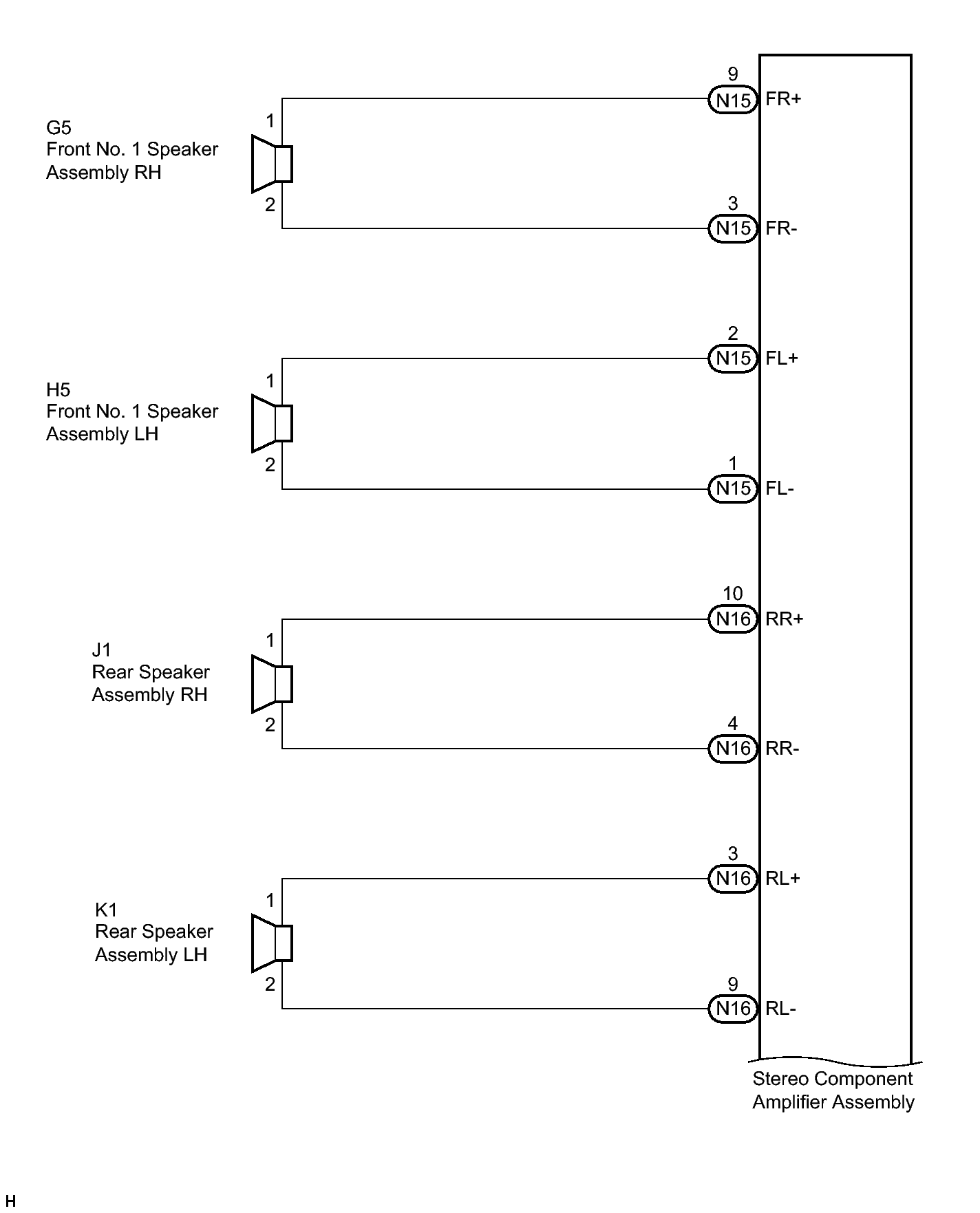

    Fig 1: Stereo Component Amplifier Assembly Circuit Wiring Diagram (1 Of 2)
    GTY302822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

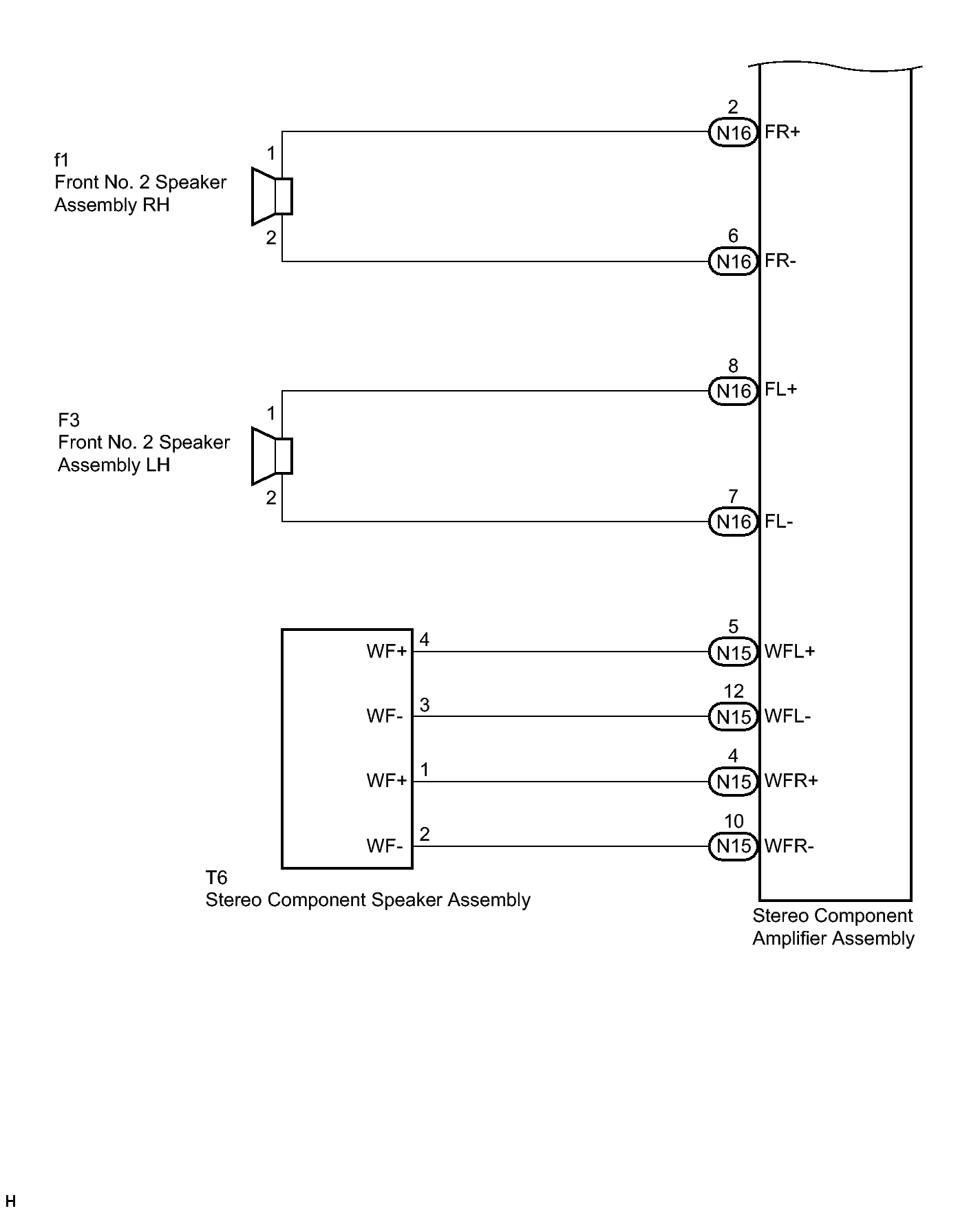

    Fig 2: Stereo Component Amplifier Assembly Circuit Wiring Diagram (2 Of 2)
    GTY294898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Back Door Speaker

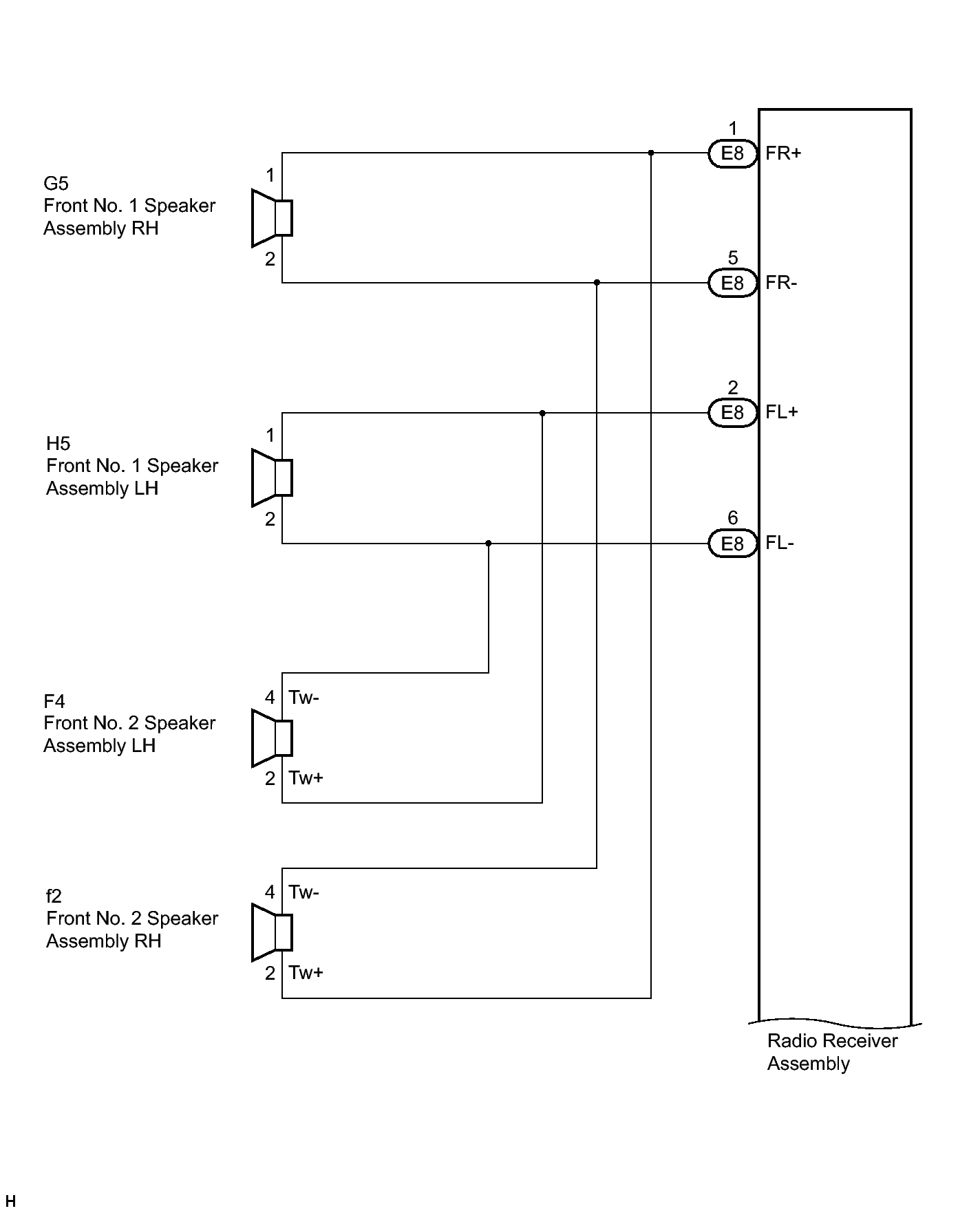

    Fig 3: Radio Receiver Assembly Circuit Wiring Diagram (1 Of 2)
    GTY299105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 4: Radio Receiver Assembly Circuit Wiring Diagram (2 Of 2)
    GTY299978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
