Sound Signal Circuit between Radio Receiver and Multi-media Interface ECU: Wiring Diagram

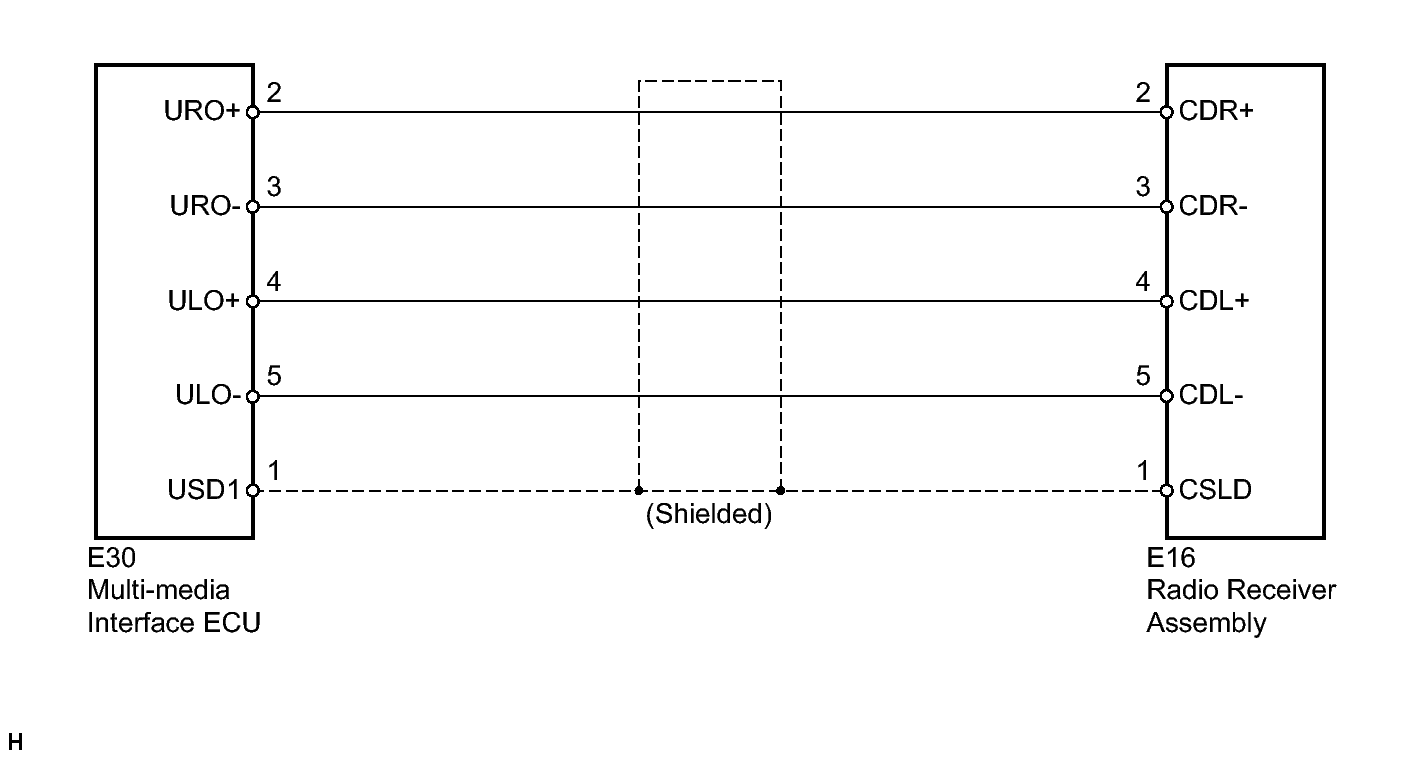

Fig 1: Sound Signal Circuit Between Radio Receiver And Multi-Media Interface ECU Wiring Diagram
GTY295093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
