Sound Signal Circuit between Multi-media Interface ECU and Stereo Jack Adapter: Wiring Diagram

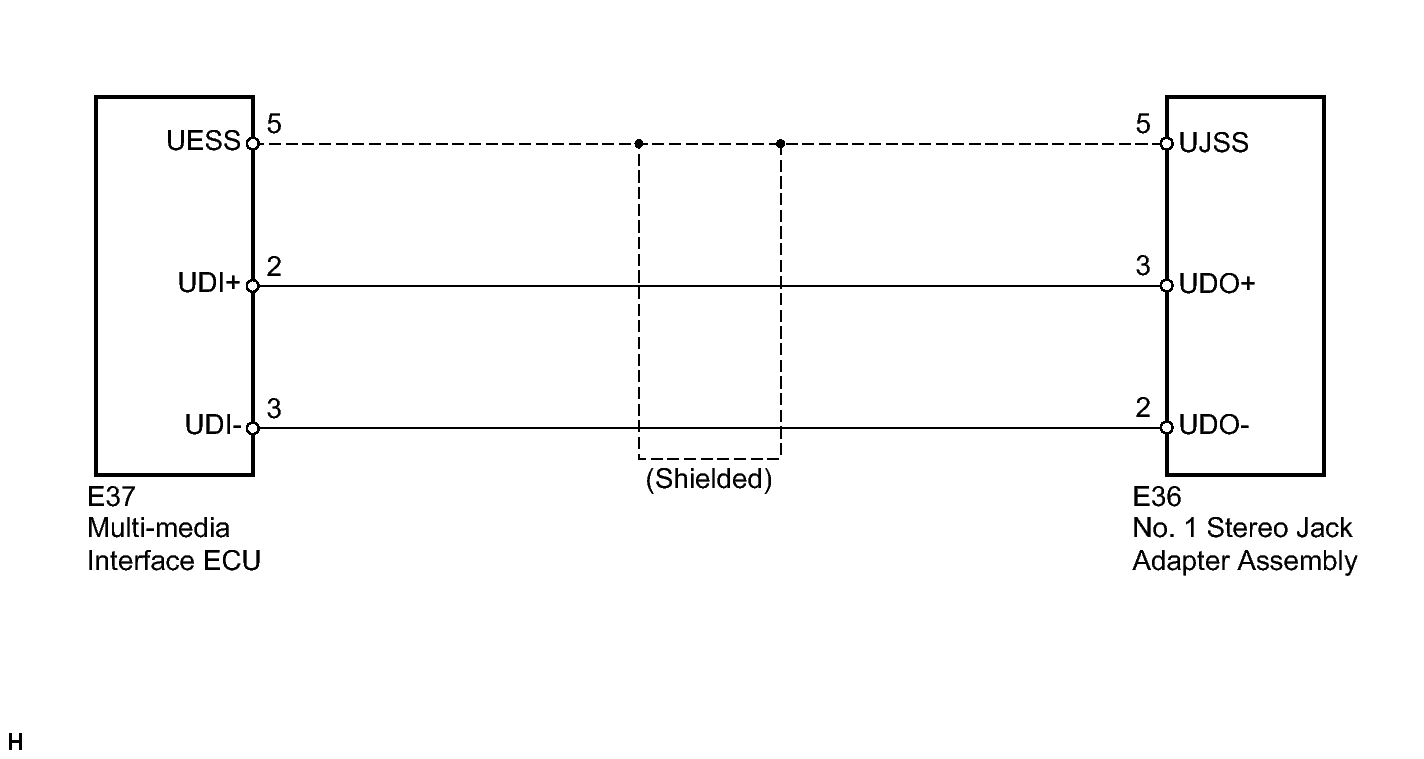

Fig 1: Sound Signal Circuit Between Multi-Media Interface ECU And Stereo Jack Adapter Wiring Diagram
GTY306151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
