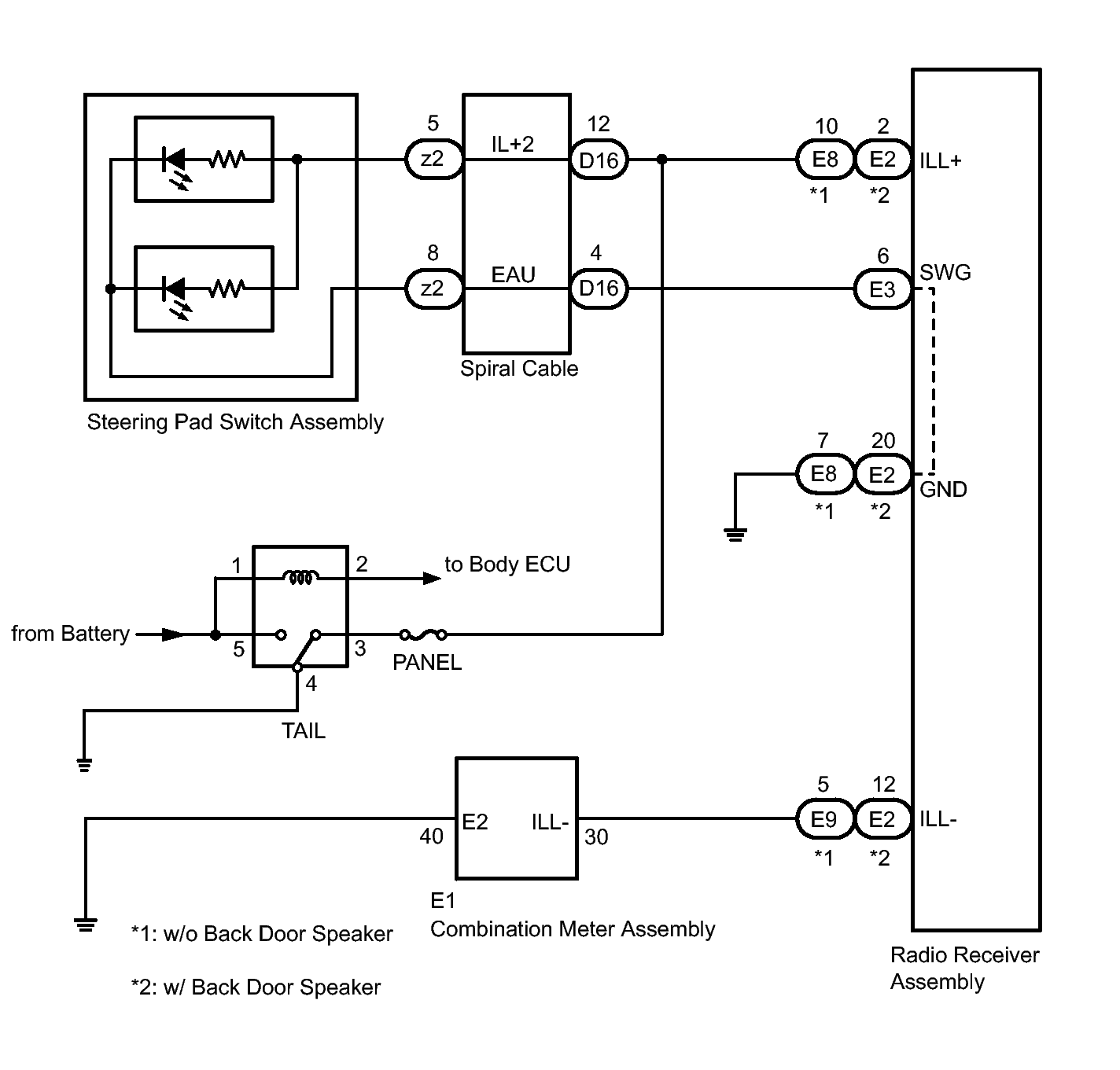

Home >> Toyota >> 2012 >> Highlander Limited, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Audio Entertainment System (Diagnostic Codes & Symptom Tests) (Except Hybrid) >> Audio And Visual System >> Circuit Tests >> Illumination Circuit >> Wiring Diagram
