Light Control Rheostat: Removal: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 16
  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH  . Refer to REMOVAL - Step 17
  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)  . Refer to REMOVAL - Step 21
  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Automatic Air Conditioning System)  . Refer to REMOVAL - Step 22
  5. REMOVE LIGHT CONTROL RHEOSTAT
    1. Disengage the 2 claws and remove the light control rheostat.

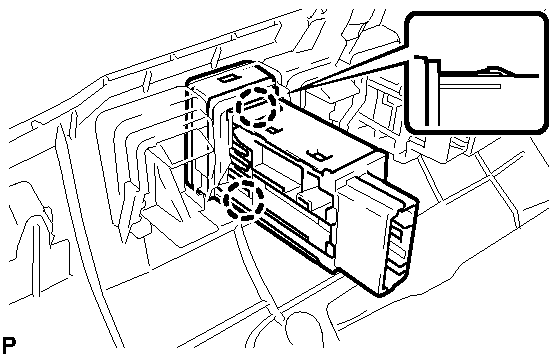

      Fig 1: Identifying Light Control Rheostat Claws
      GTY175052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
